About this product

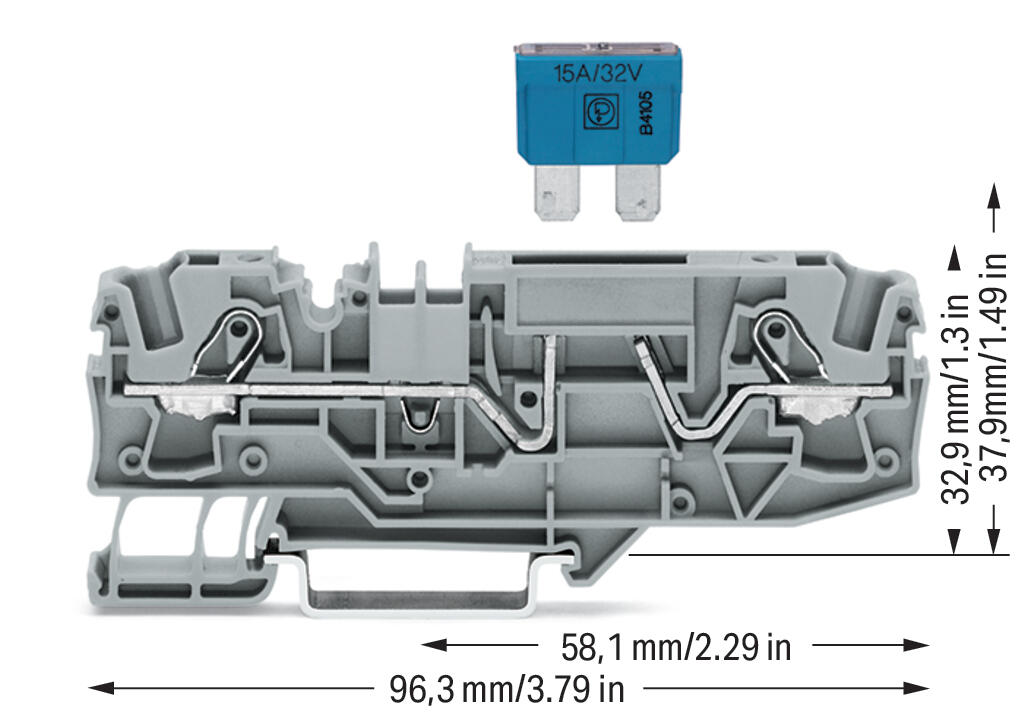

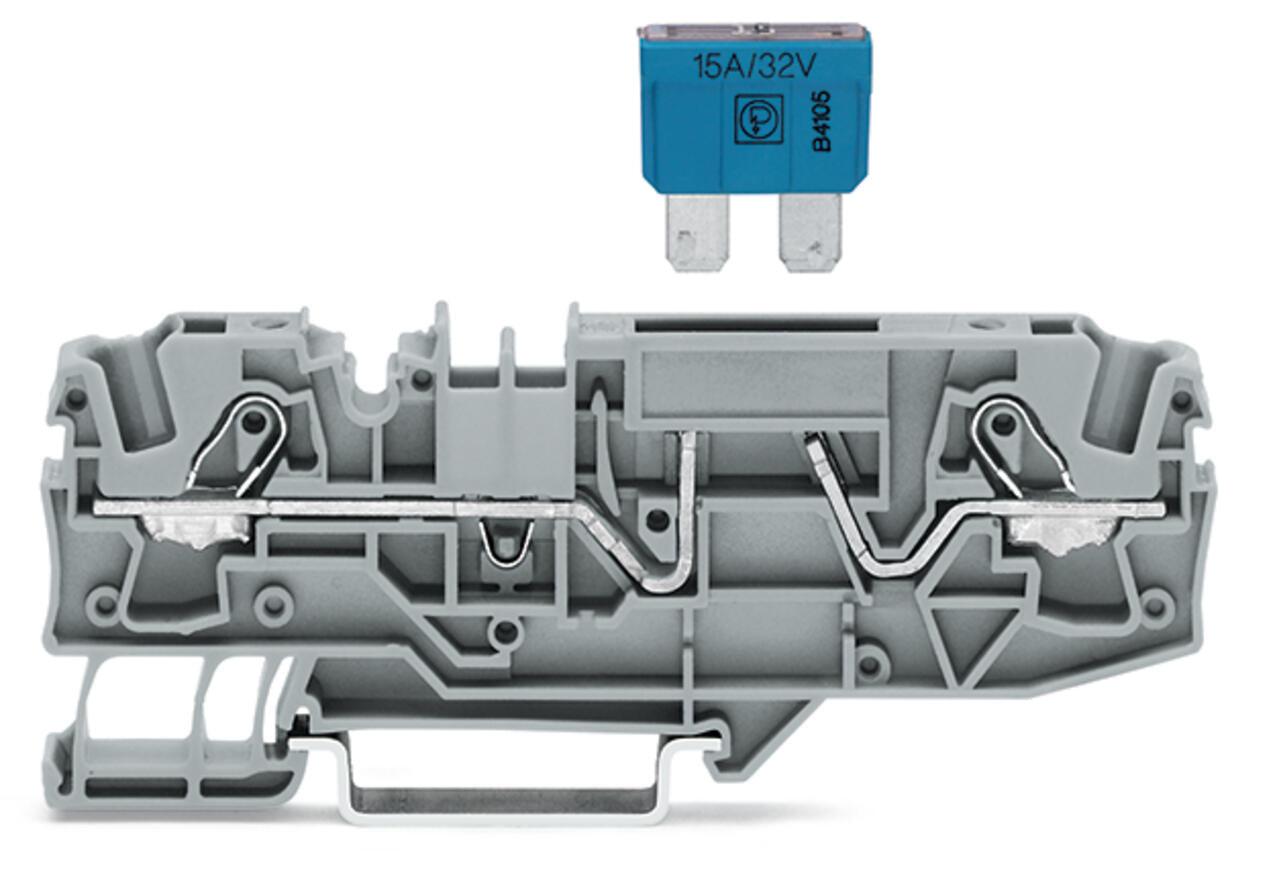

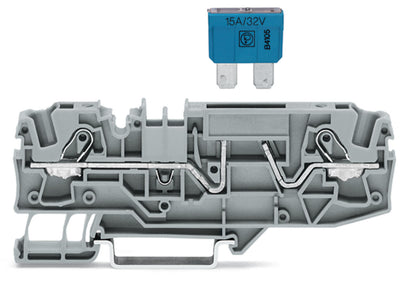

This fuse terminal block (item number 2006-1681) is designed to connect conductors quickly and easily. Ensure that the strip lengths are between 13 and 15 mm when connecting conductors to this fuse terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector outperforms the competition. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This fuse terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 10 mm².

Key Features

• 2-conductor fuse terminal block for blade-style fuses
• Push-in CAGE CLAMP® connection system
• Supports 20–8 AWG (0.5–10 mm²) copper conductors
• Rated 30 A / 600 V (UL), 500 V (IEC)
• DIN-rail mountable; 7.5 mm wide
• Flame-retardant gray housing (UL94 V-0)
