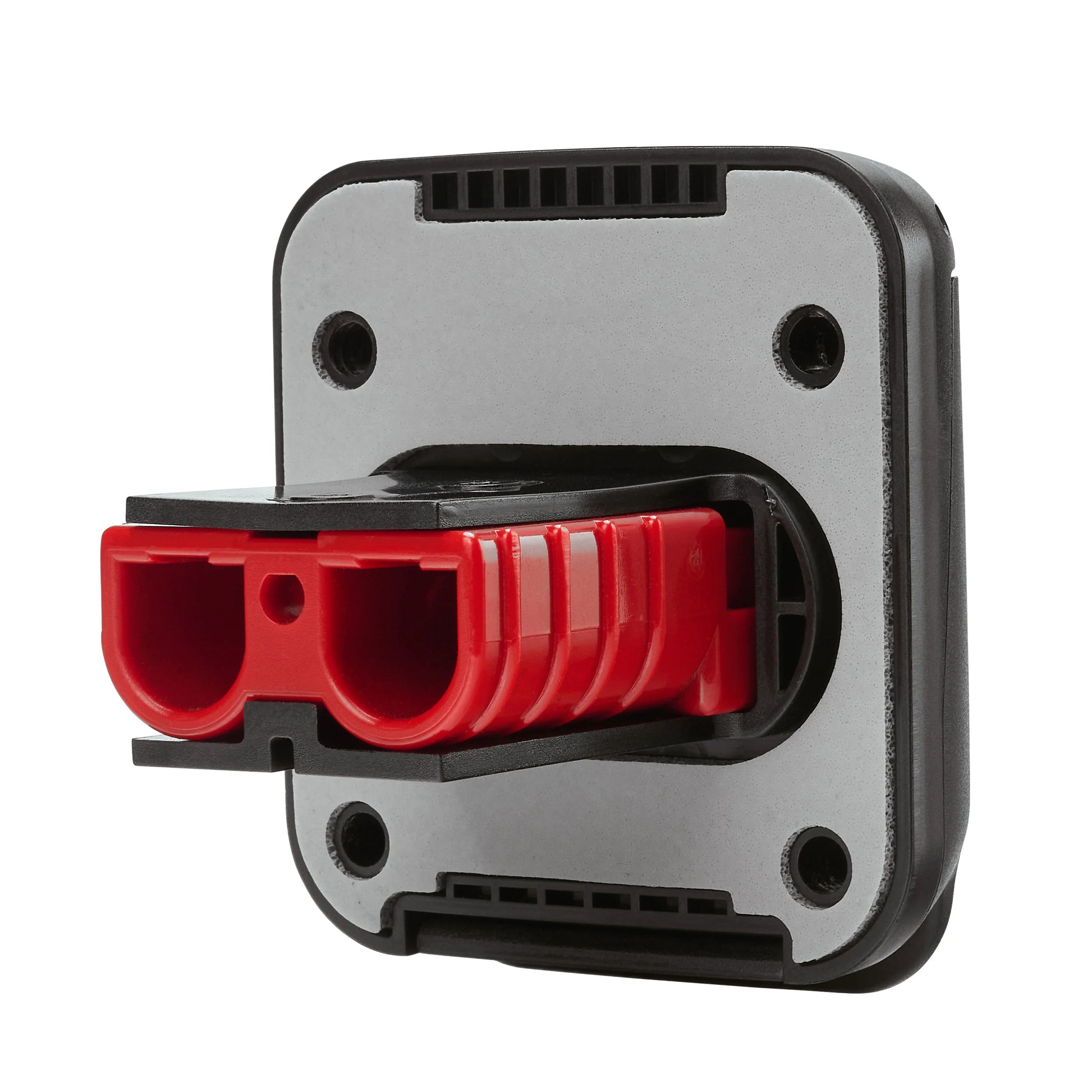

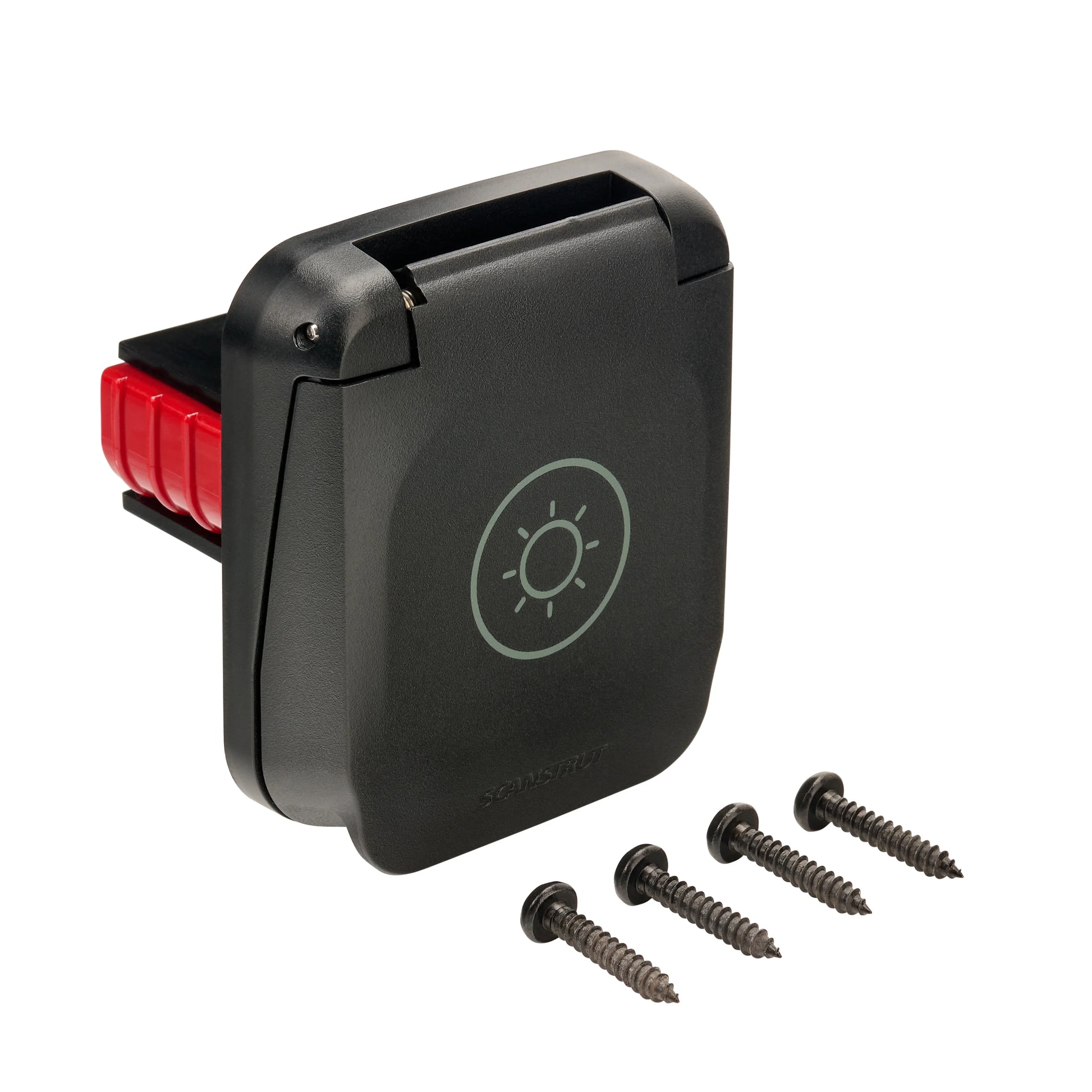

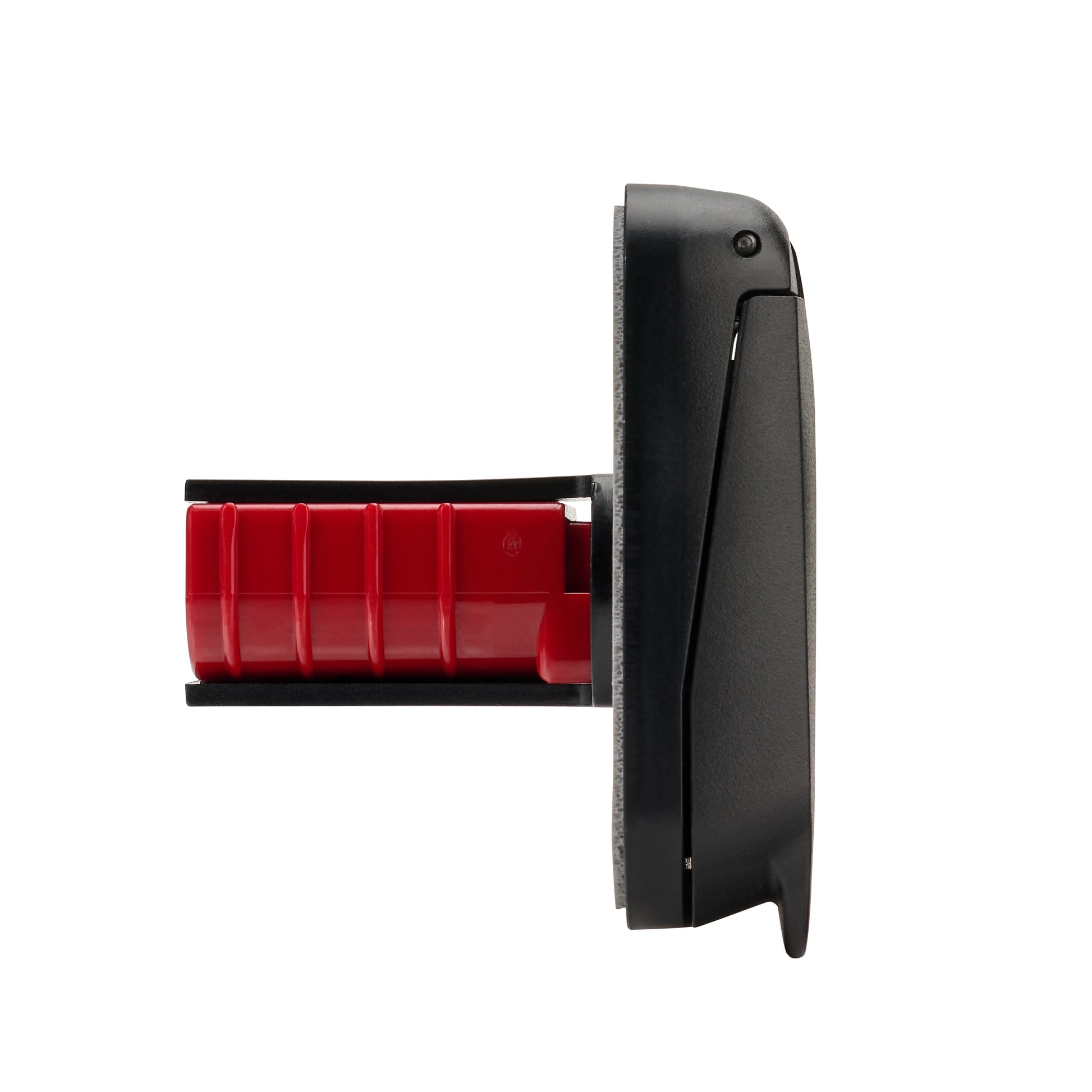

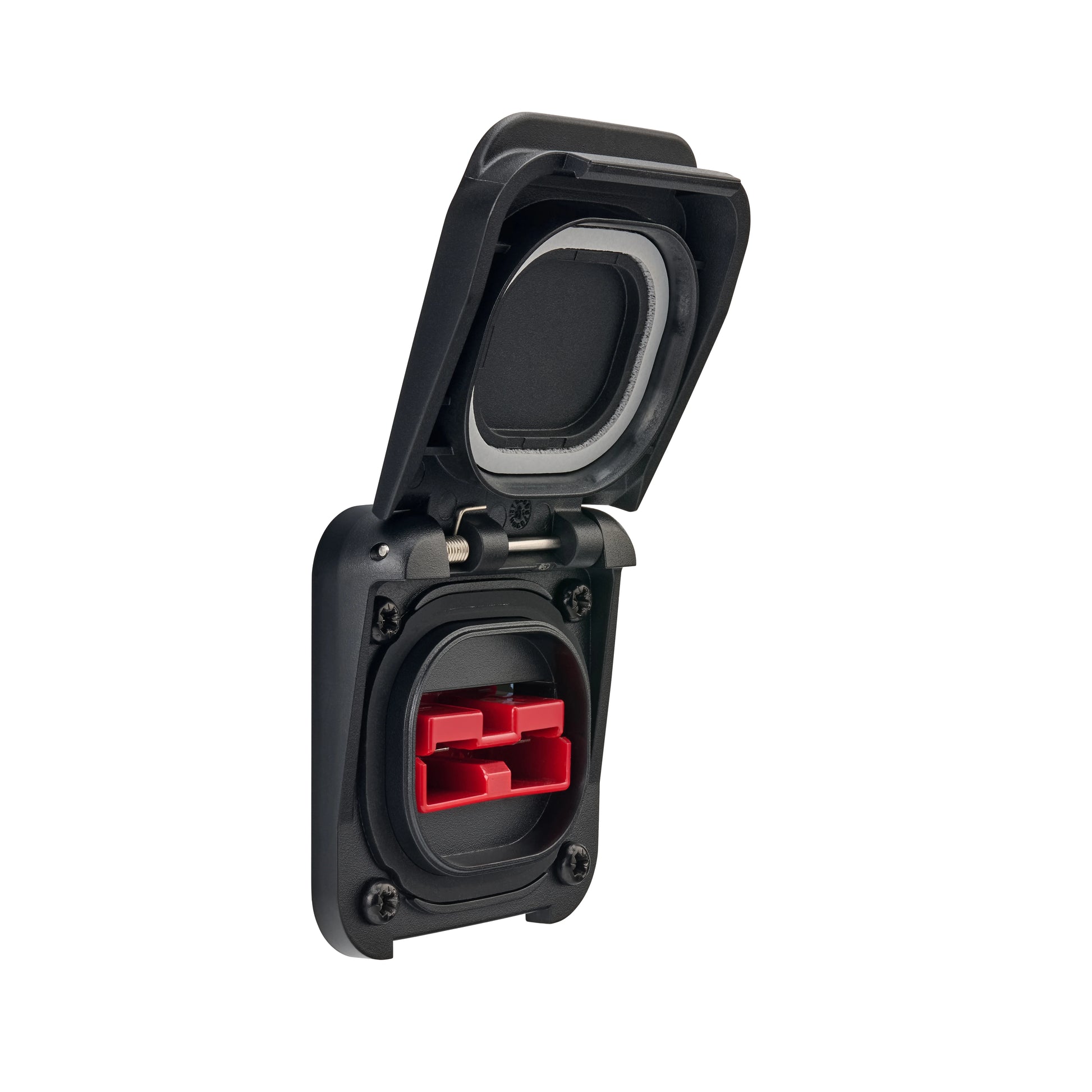

Ventura Series - Anderson 50A Solar Connection - Red

ScanStrut

ART-SCVS1-SCA

Available for pre-order!

Expected Beginning of November

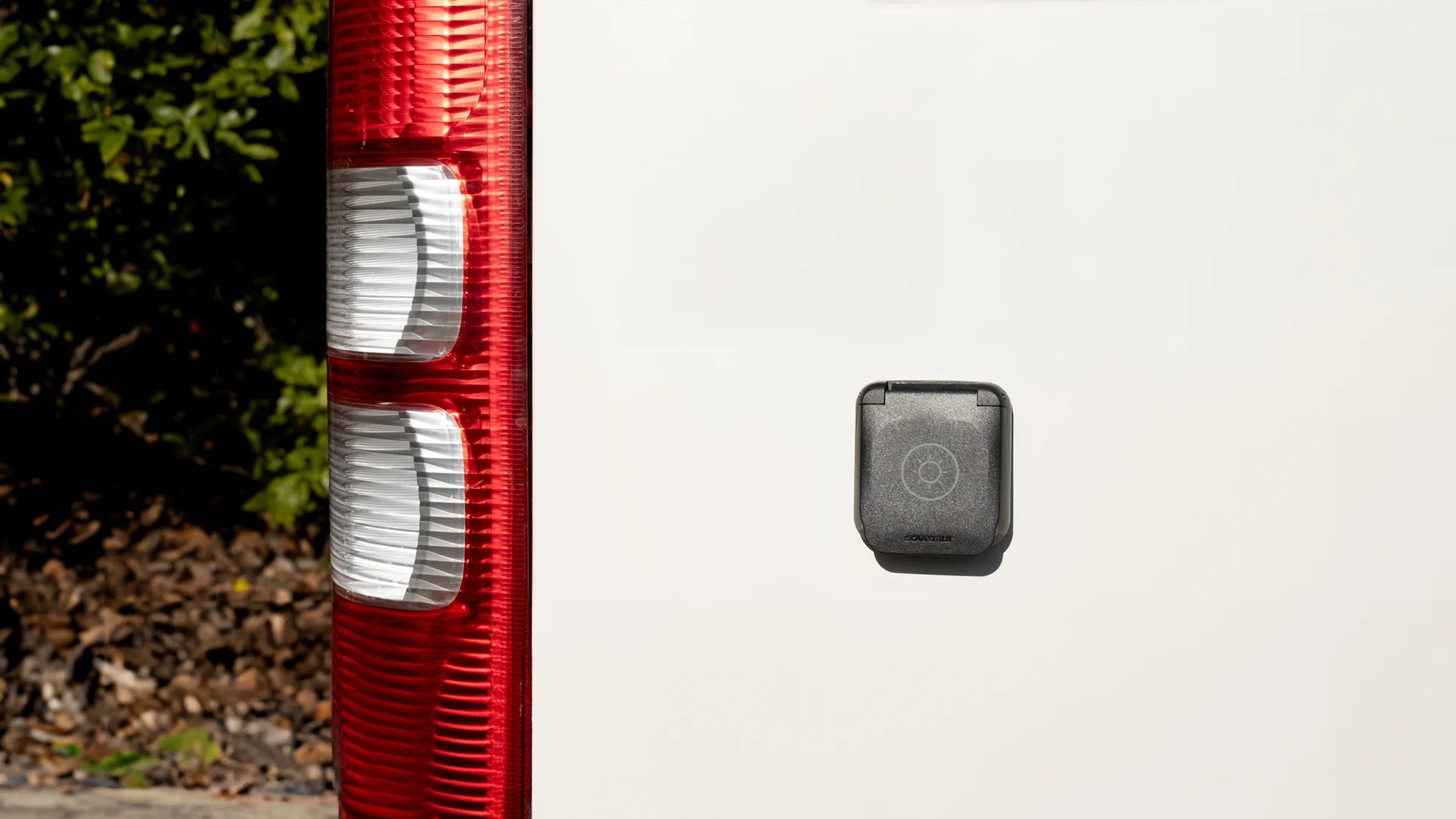

Whether you're running solar into your camper's power system, charging lithium batteries in your overland rig, or connecting high-draw gear at basecamp, this Anderson 50A connection keeps your power flowing, no fuss, no compromise.

Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.


Key Features


  • IP68, IP69K Waterproof (with lid closed)
  • Built-in gaskets for a watertight seal 

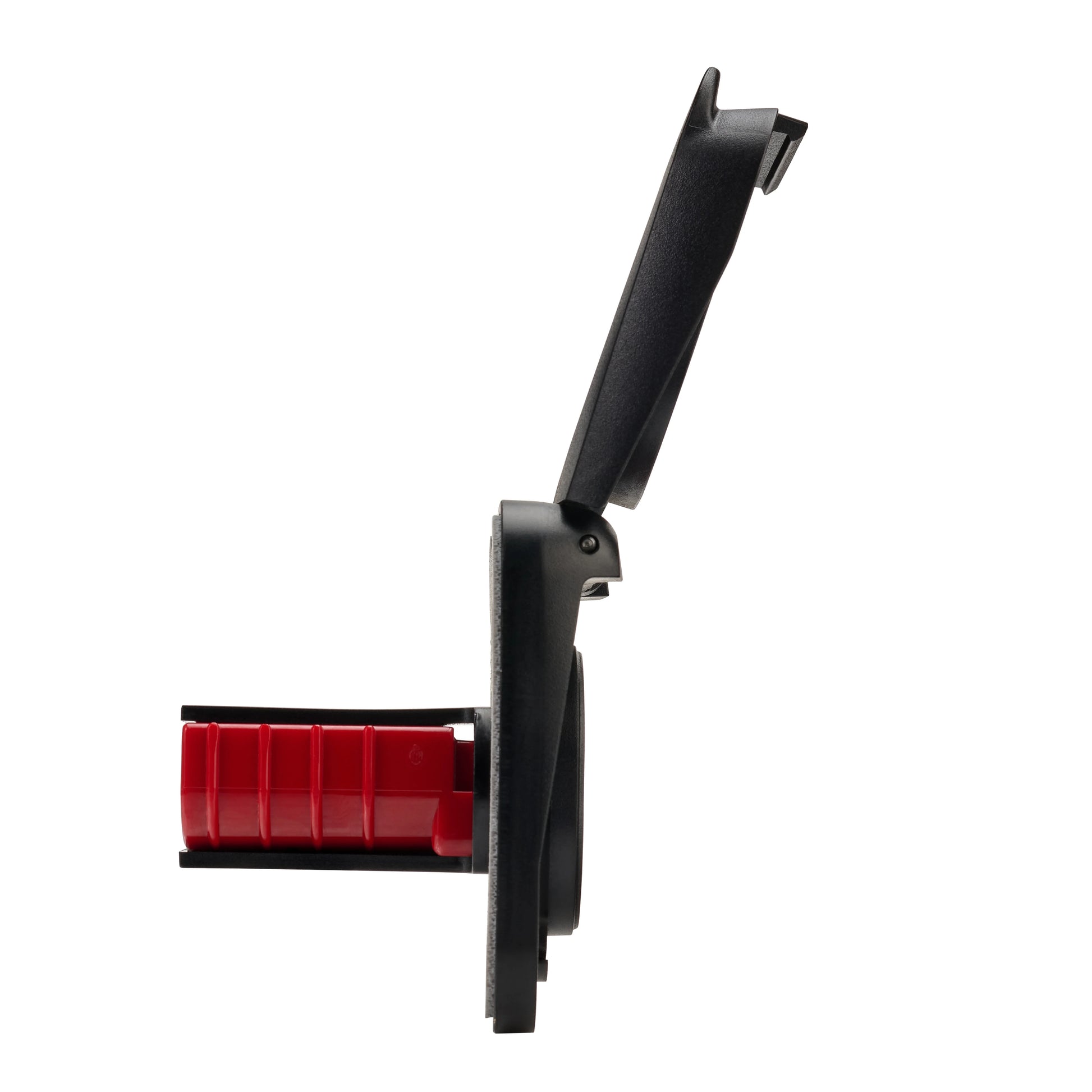

  • Spring-Loaded Lid
  • Marine-Grade 316 Stainless Steel Components
  • 90° Holding Bump-Feature
  • UV Resistant
  • Easy install

Terminal Crimps
SB50 terminal crimps are not included. Genuine crimps are available from Anderson Power

$29.99
$29.99
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

The Ventura Series Anderson 50A Solar Connection is your rugged, ready-for-anything power port perfect for serious off-grid setups.

Designed for outdoor life, this fixed, heavy-duty connector won’t work loose. Its robust design and optimal cable sizing ensure a secure fit and reliable performance, even at higher voltages.

Crafted with Scanstrut marine-grade innovation, it’s built to thrive in tough environments. UV-tested, waterproof (IP68 & IP69K), and made with 316 stainless steel components, it’s built to last - rain, dust, heat, or snow.

The Ventura Series blends beautiful design with tough practicality. Its compact and uniform look complements the range of exterior sockets like power, water, and solar, keeping your build clean and cohesive. From remote trails to rugged coastlines, keep your setup powered and adventure-ready with the Scanstrut Ventura Series Anderson 50A.

Technical Specification

Connection Type
Anderson SB50 - Red
Connector Max​ Current
Rated 50A (6AWG cable)
Connector Max​ Voltage
Rated 600V DC
Max Power Delivery​ (12V Input)
600W
Max Power Delivery​ (24V Input)
1200W
Max Power Delivery​ (48V Input)
2400W
SB50 terminal crimps are not included. Genuine crimps are available from Anderson Power. Sizes available
• 6AWG/16mm² (Part number - 5900) • 8AWG/10mm² (Part number - 5952) • 12-10AWG/4mm²-6mm² (Part number - 5915)
