Progressive Dynamics Transfer Switch

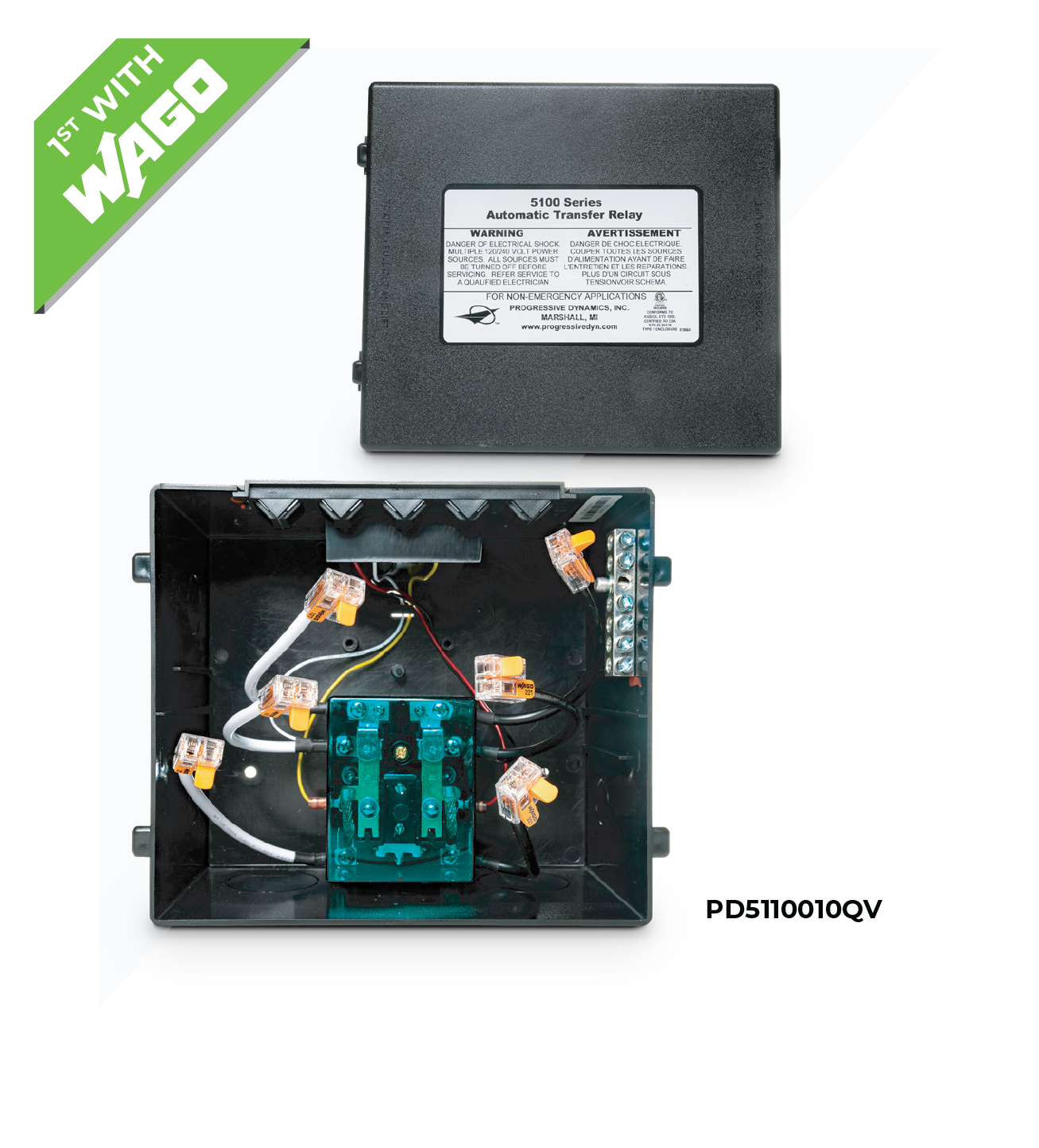

5100 Series Automatic Transfer Switch (30A)

• Quick change circuit board is easily replaced in the event of failure. No need to disconnect and reinstall the entire unit.
  Time delay feature ensures generator voltage is at a stable level before transfer occurs.
• Built-in strain reliefs allow the installer to simply push the branch circuit wires inside the unit for connection.
• Eliminates the need to purchase and install separate strain reliefs for each circuit.
• 2 year limited warranty.
• U.S. Patents: RE40,354; 6,430,036.

5200 Series Automatic Transfer Switch (50A)

• Rugged, heavy duty, screw type wiring terminals ready to wire to contactor base. Ensure ease of wiring and prevents wiring errors.
• Time delay circuit board ensures generator voltage is at a stable level before transfer occurs.
• Easy to remove protective cover with wiring schematic inside.
• 70 Amp neutral rating.
• 2 year limited warranty.

5100 Series Automatic Transfer Switch (30A)

120 VAC, 30-Amps Pig tail AC wire connections and Wagos Quick Flip Connectors

Dimensions:9.25”L x 7.28”W x 4.2”H
Weight:2.5 lbs.

5200 Series Automatic Transfer Switch (50A)

240 VAC, 50 Amps
Metal Box Dimensions:10.38”L x 6.88”W x 4.5”H
Weight:7 lbs.
