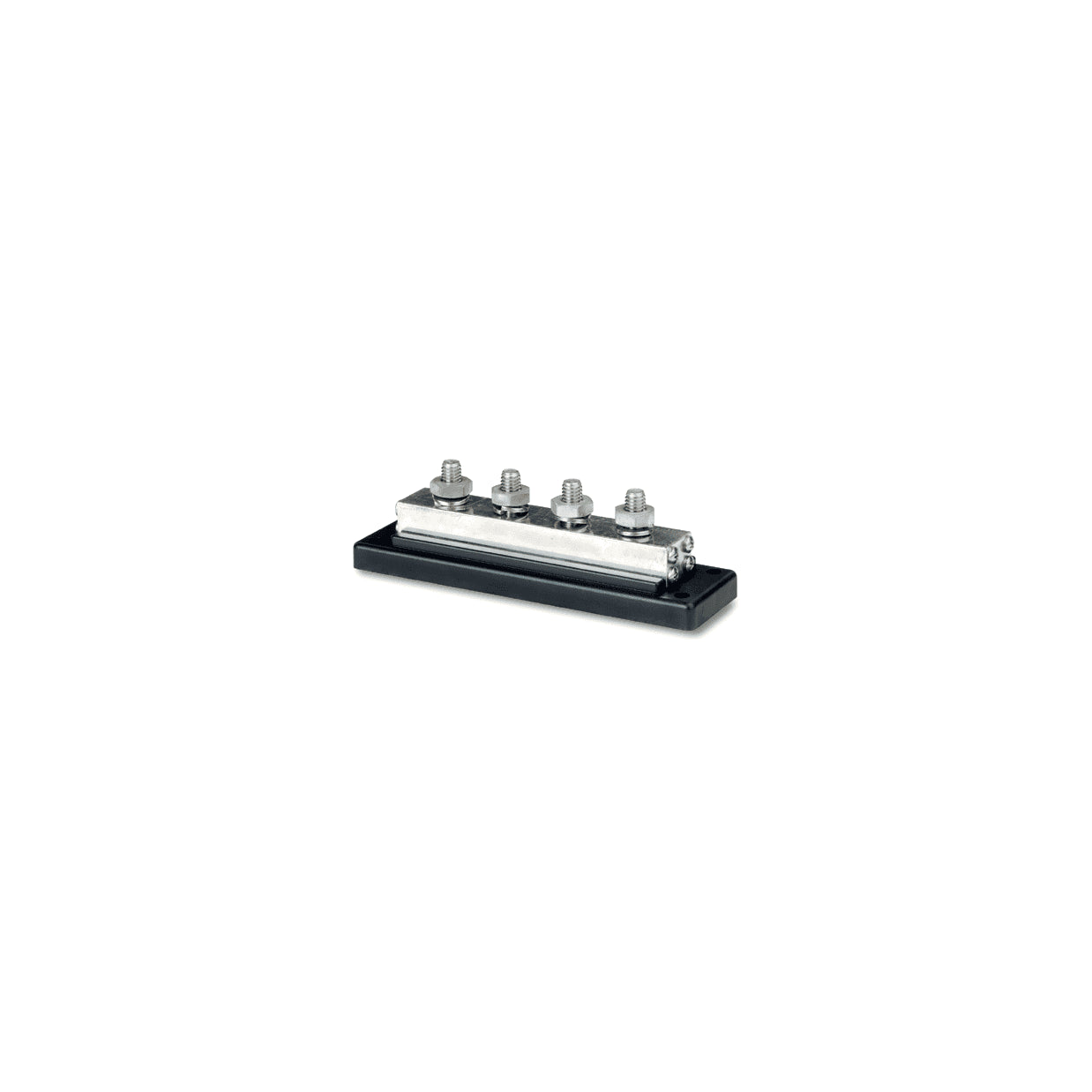

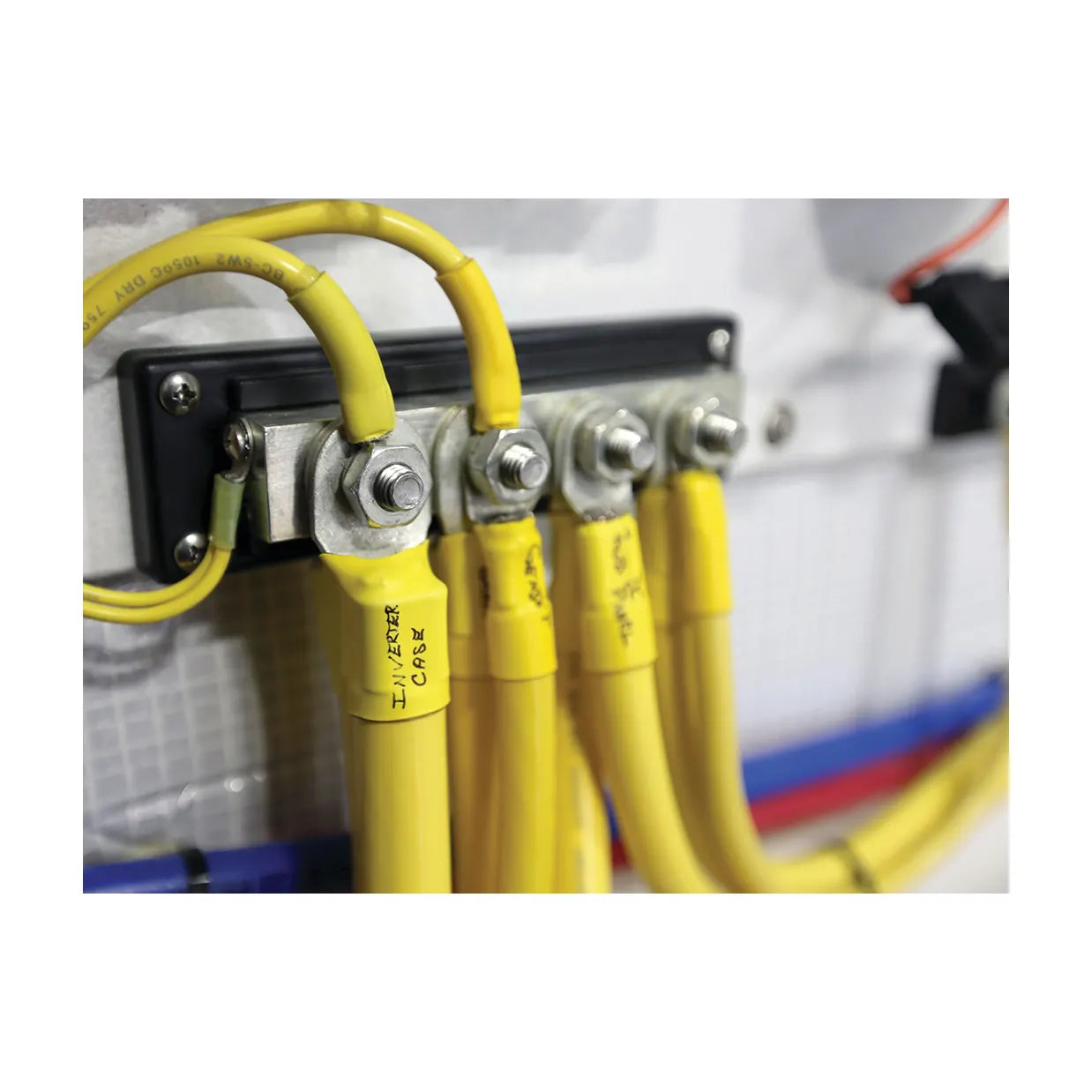

4 Gang Heavy duty Busbar rated up to 600A. Includes Four 3/8" – 16 Studs. Maximum voltage 300 VAC or 48 VDC. This Heavy Duty Bus Bar is often used as a ground bus for large negative battery cables.
Key Features
• Bus has 3/8"-16 stud terminals on top and two #8 screw terminals on each end
• Bus continuous amperage: 545 amperes AC and 600 amperes DC
• Voltage rating: 300 volts AC maximum and 48 volts DC maximum
• Bus material: tin-plated copper
• Base material: glass re-inforced Lexan® polycarbonate
• At nearly 1-3/4 lb, this is a very heavy-duty bus
Technical Specification
Dimensions
2.00"W x 7.00"L
Type
PowerBar 4 x 3/8" Stud Terminals
