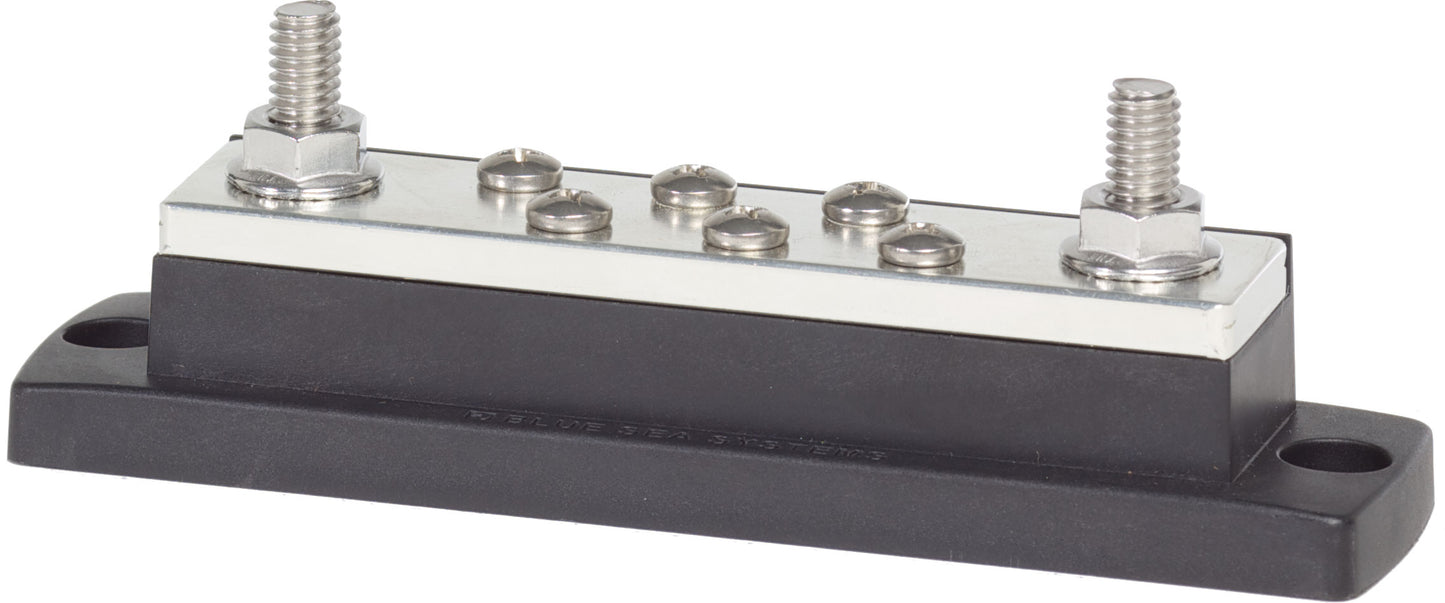

MaxiBus 250A BusBar - Two 5/16"-18 Studs and Six #10-24 Screws

Busbars are used to consolidate multiple wires or feed multiple circuits

• Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
• Raised bus provides easy access to multiple wires on a single stud
• UL 94-V0 rated base material resists high heat
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

• Maximum Voltage: 300V AC 48V DC
• Number of Screw Terminals: 6
• Number of Terminal Studs: 2
• Terminal Type: #10-24 Screw 5/16"-18 Stud
• Continuous Rating: 250A
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
• Recommended Screw Torque: 23 in-lb (2.6 N·m)
• Recommended Stud Torque: 132 in-lb (14.91 N·m)
• Weight: 0.65lb (0.29 kg)
• Weight: 0.80lb (0.36 kg)
