About This Product

Ultra-fast USB charging for the next generation boater.

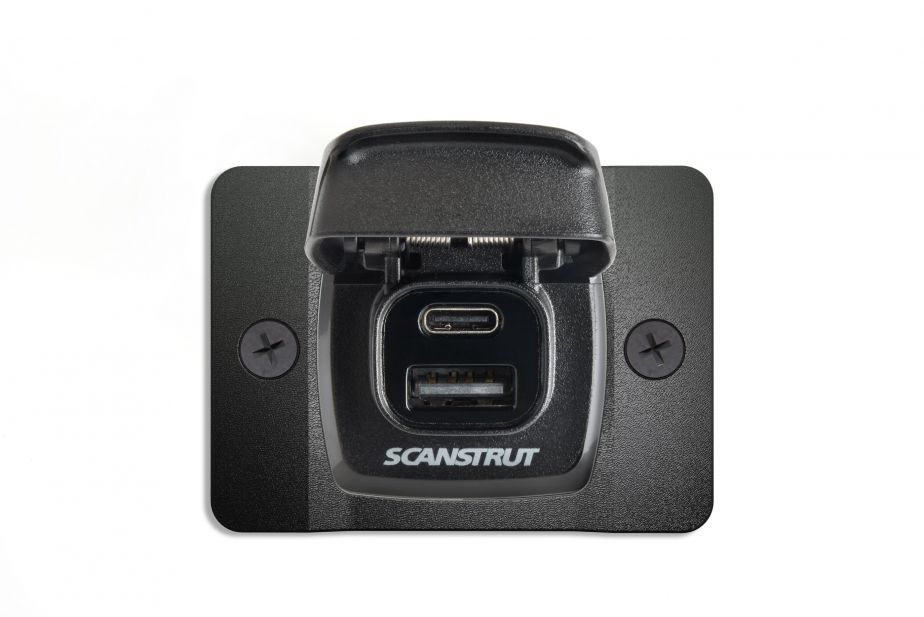

Flip Pro with front bezel is designed for use with either a 12V or 24V input and features 1x USB-A and 1x USB-C charging port. This provides the optimum choice of connection for any device and the fastest charging for your device onboard.

Flip Pro with front bezel was manufactured as an adaption to the original SC-USB-F1 to offer flexibility to installation, as in some cases, it is not possible to gain access to behind panels. Therefore, the front fit bezel provides an alternative route for installation, allowing the option to fit the product from the front using screws.

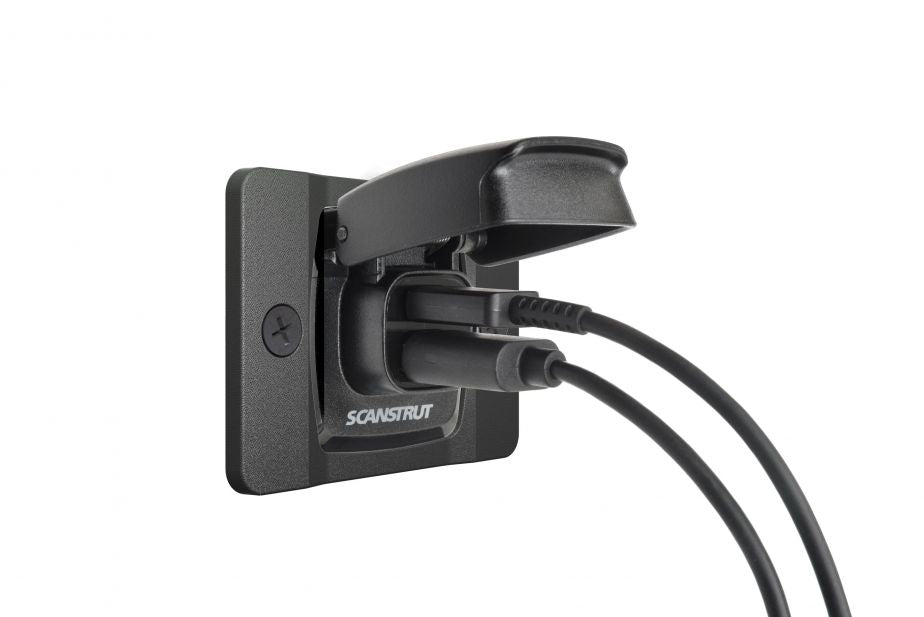

When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements. When charging, it quickly locks open to protect your cables when plugged in.

Featuring a super compact footprint, Flip Pro is constructed from premium, marine-grade materials. and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops via the USB-C port. It’s also 2x faster for charging large tablets and is designed to effortlessly charge both an iPad Pro & iPhone at the same time.

The install cut out matches those of standard USB sockets for easy retrofit or swap of an existing USB charger, allowing you to keep up with the heavier power draws of modern electronic devices.

Key Features

  • USB-A and USB-C fast charging ports for charging two devices simultaneously
  • Front-fit bezel design allows installation from the front of the panel where rear access is limited
  • Supports both 12V and 24V DC electrical systems (10–32V input)
  • Delivers up to 60W USB-C Power Delivery on 24V systems for fast charging laptops, tablets, and smartphones
  • USB-A port supports Quick Charge for rapid charging of legacy devices
  • Standard 29 mm (1.14") mounting hole makes it an easy retrofit for existing USB chargers
  • IPX4-rated weather resistance with the protective cover closed
  • Ultra-low standby power draw of just 0.01W
  • Marine-grade construction with UV-resistant materials and internal anti-corrosion coating
  • 316 stainless steel hinge and spring for long-term durability in harsh environments
  • Compatible with boats, RVs, camper vans, overland vehicles, and commercial applications
  • CE, FCC, UKCA, C-Tick, and RoHS certified for safety and reliability

Technical Specification

Input Voltage
10-32V DC (12/24V system)
Input Current Max
6A (10A fuse recommended)
Standby Draw
0.01W
