CLB Circuit Breaker Block with Negative Bus Bar

Wholesale - Artek

ART-5052B-BSS

MPN: 5052B

$76.79
$76.79
Sale Sold out
Tax included. Shipping calculated at checkout.
Number of Circuits
View full details

About this Product

Although every wire on a boat requires circuit protection, not every circuit needs to be to be capable of being switched On and Off,orthe circuit has an independent remote switch. That's where this circuit breaker block comes in.

The advantage of a resettable circuit breaker over a fuse is well known, however, people often think of circuit breakers as more expensive and difficult to install.
The ST CLB Circuit Breaker Block solves this issue by using economical, compact, snap-in-place, CLB resettable circuit breakers which make breakers as easy to install as a fuse.

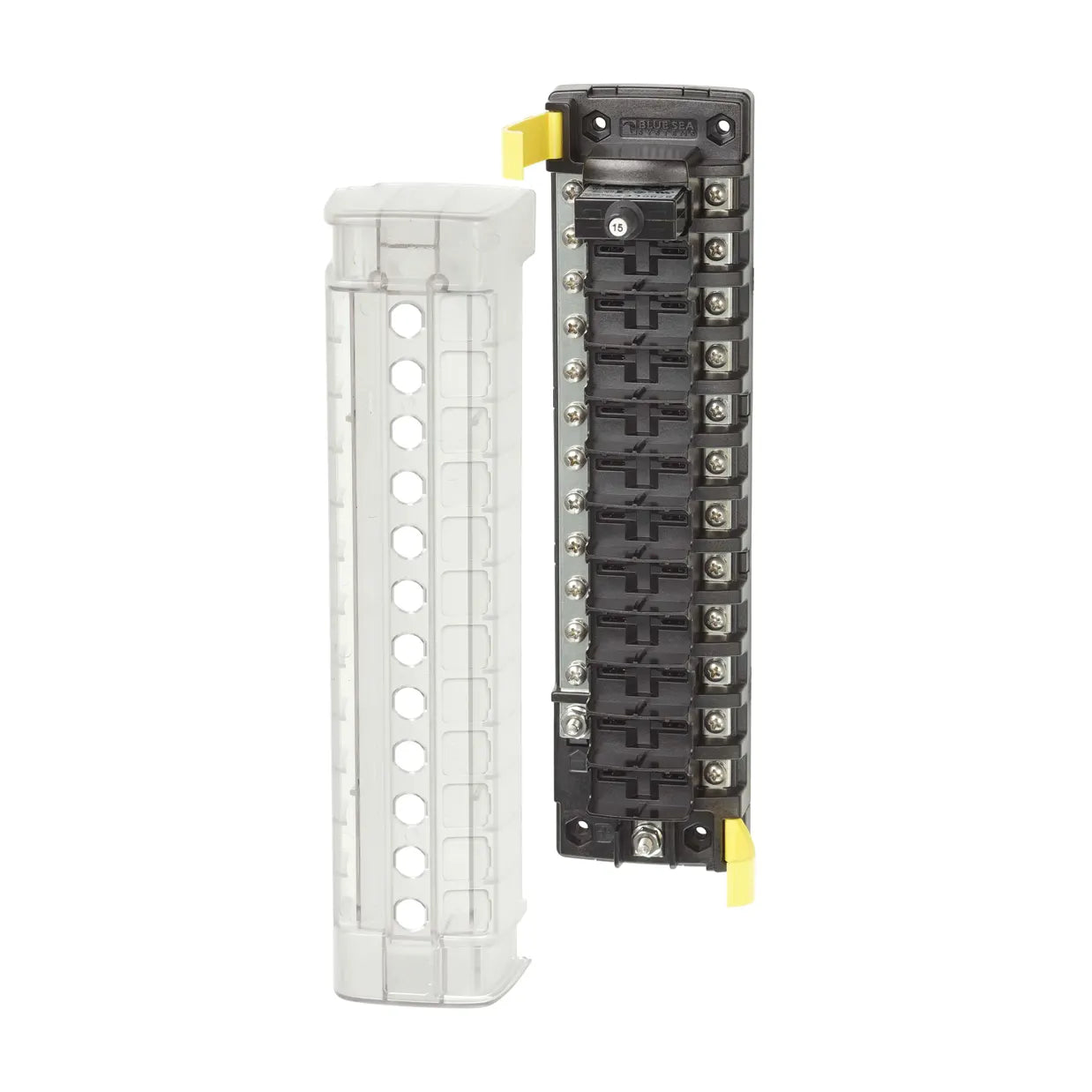

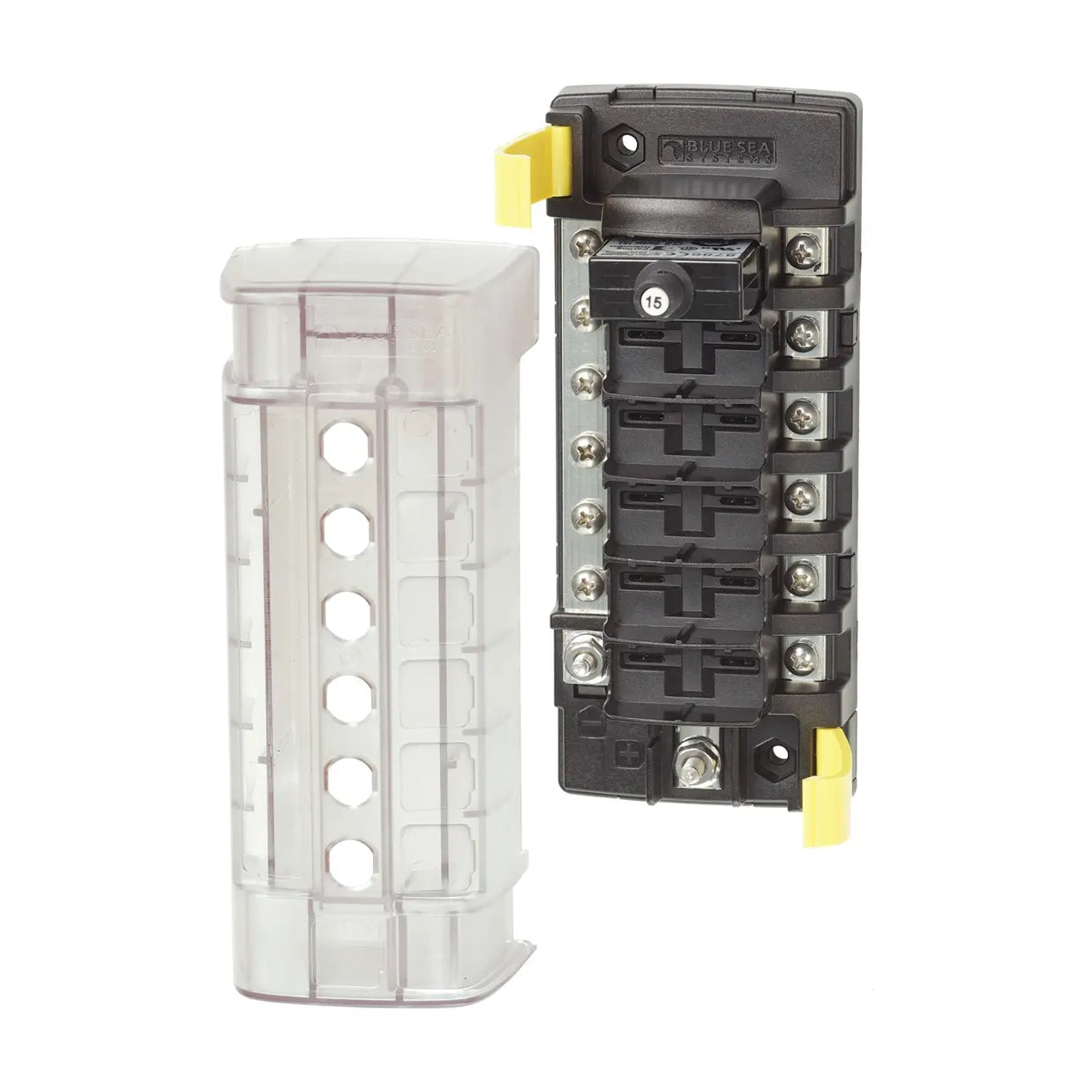

This bus bar version of the CLB Breaker Block has a common positive bus terminal to supply power to as many as 6 or 12 circuits, and a negative bus bar which serves as a common ground for all those circuits, making for easy wiring.

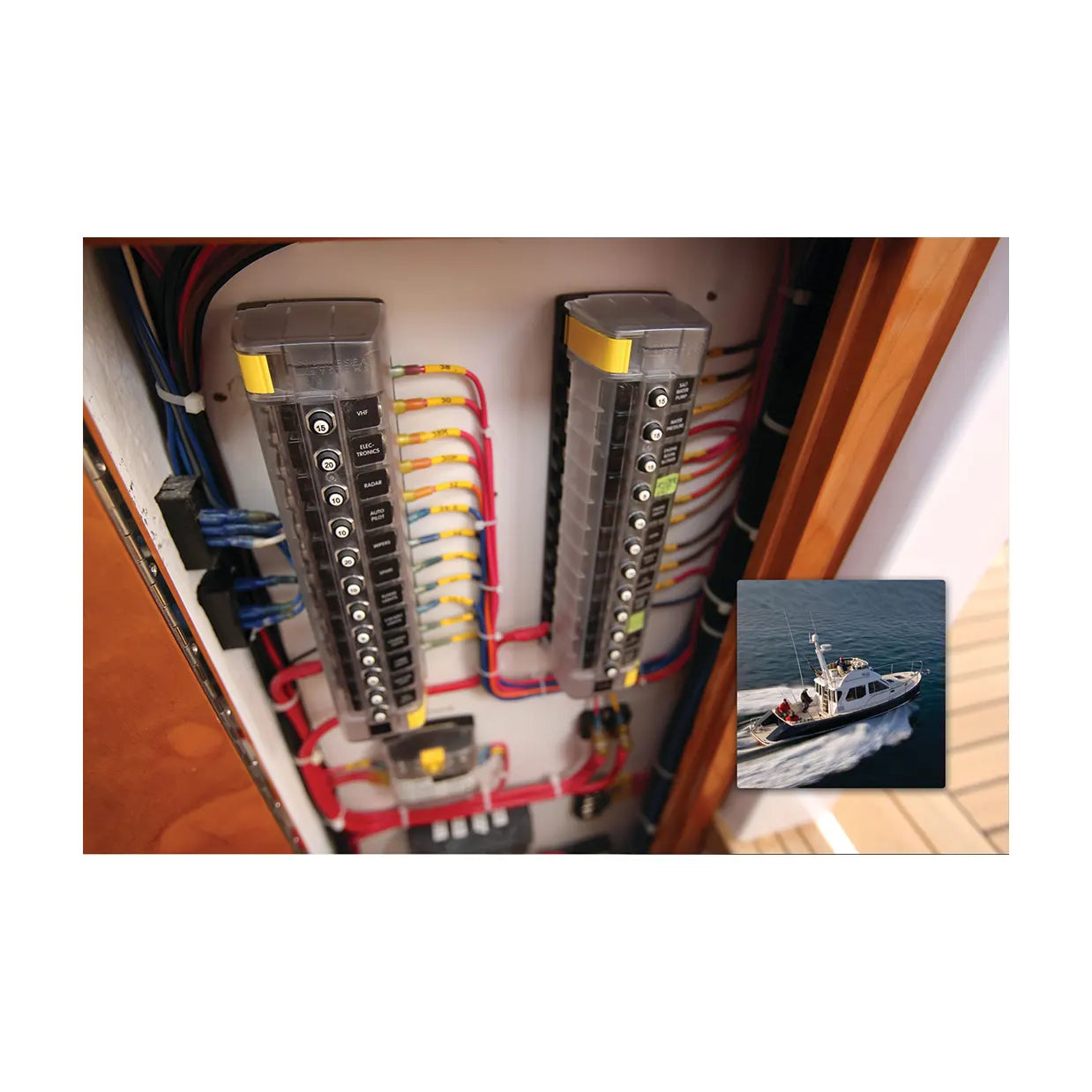

Of course, any of the devices powered through this breaker block can be controlled via a remote switch, as necessary, or several of the positive leads can be routed through a switch panel, as in one of the accompanying diagrams. In addition, there is the option to install a "master" switch in the wire going to the positive bus terminal to control all the circuits simultaneously.

Key Features

• Uses CLB push-button reset thermal circuit breakers (only one 15A breaker is included)
• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals
• Clear insulating cover insulates and protects the breakers and connections and satisfies ABYC/USCG insulation requirements
• Clear cover has small size square format recesses for Blue Sea square labels
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover

Technical Specification

Circuits
6-12
Max. Amperage
32A per Circuit
Mounting Fasteners
#8 Screw or Nut
Length
6.69"
Max. Voltage
32V DC
Screw Terminal Type
#8-32

No Documentation available.

SKU # Part # Number of Circuits Price Quantity
SKU #: ART-5052B-BSS Number of Circuits: 6 $76.79
- +
SKU #: ART-5054B-BSS Number of Circuits: 12 $132.27
- +
