Anderson SB & Powerpole Contacts

Anderson SB & Powerpole Contacts

Anderson Power

ART-5614-AND

Silver plated contacts offer the best electrical performance and durability up to 10,000 mating cycles. See reducing bushings in accessory section for smaller wires.

$3.06
$3.06
Sale Sold out
Tax included. Shipping calculated at checkout.
Amperage Rating
Wire Gauge
View full details

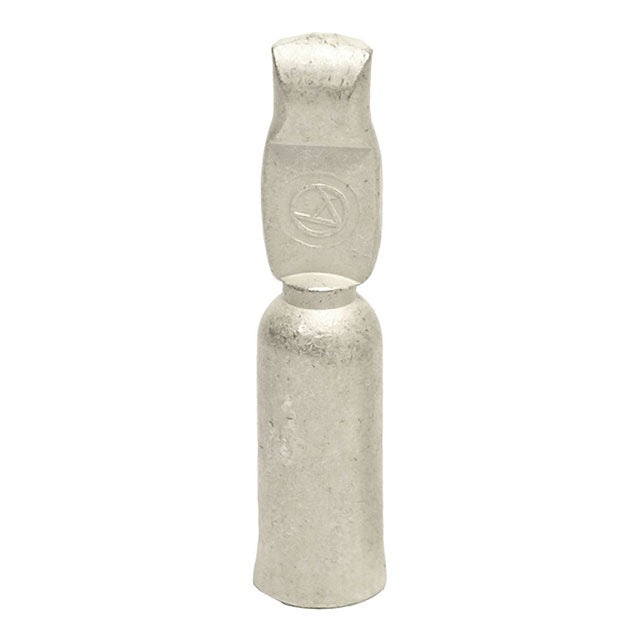

Anderson SB® & Powerpole® contacts are made of silver-plated solid copper to complete the connection and offer low resistance with superior conductivity. The contacts feature a self-cleaning design that resists arcing by keeping conductive surfaces clear of corrosion. The spring loaded, contoured contacts are for use to 600 volts continuous AC or DC operation.

No technical specification available.

No Documentation available.

SKU # Part # Amperage Rating Wire Gauge Price Quantity
SKU #: ART-5614-AND Amperage Rating: 50/75 Wire Gauge: 12-10 AWG $3.06
- +
SKU #: ART-5615-AND Amperage Rating: 50/75 Wire Gauge: 8 AWG $3.06
- +
SKU #: ART-5613-AND Amperage Rating: 50/75 Wire Gauge: 6 AWG $3.06
- +
SKU #: ART-5628-AND Amperage Rating: 175/180 Wire Gauge: 4 AWG $7.75
- +
SKU #: ART-5627DC-AND Amperage Rating: 175/180 Wire Gauge: 2 AWG $7.75
- +
SKU #: ART-5629-AND Amperage Rating: 175/180 Wire Gauge: 1 AWG $7.75
- +
SKU #: ART-5826-AND Amperage Rating: 175/180 Wire Gauge: 1/0 AWG $7.75
- +
