About this product
This Blue Sea Systems 12V DC dash socket with watertight cap is a panel-mounted power outlet for adding a protected 12V accessory connection at the helm, cockpit, console, cabin, or other exposed onboard location. It is rated for 12V DC service with a 15A maximum amperage and fits a 1 1/8 in (28.58 mm) diameter cutout.
The covered socket helps keep dust and moisture out when it is not in use, while the twist-lock design lets a compatible plug lock into place instead of working loose from vibration. Nickel-plated copper alloy current-carrying components and large contact surfaces help maintain a solid electrical connection for common 12V boat accessories.
This dash socket is offered in two color configurations for matching different helm panels, consoles, and interior finishes.
The electrical function, 12V DC rating, 15A maximum amperage, cutout size, twist-lock socket style, and mounting options remain the same across the color choices.

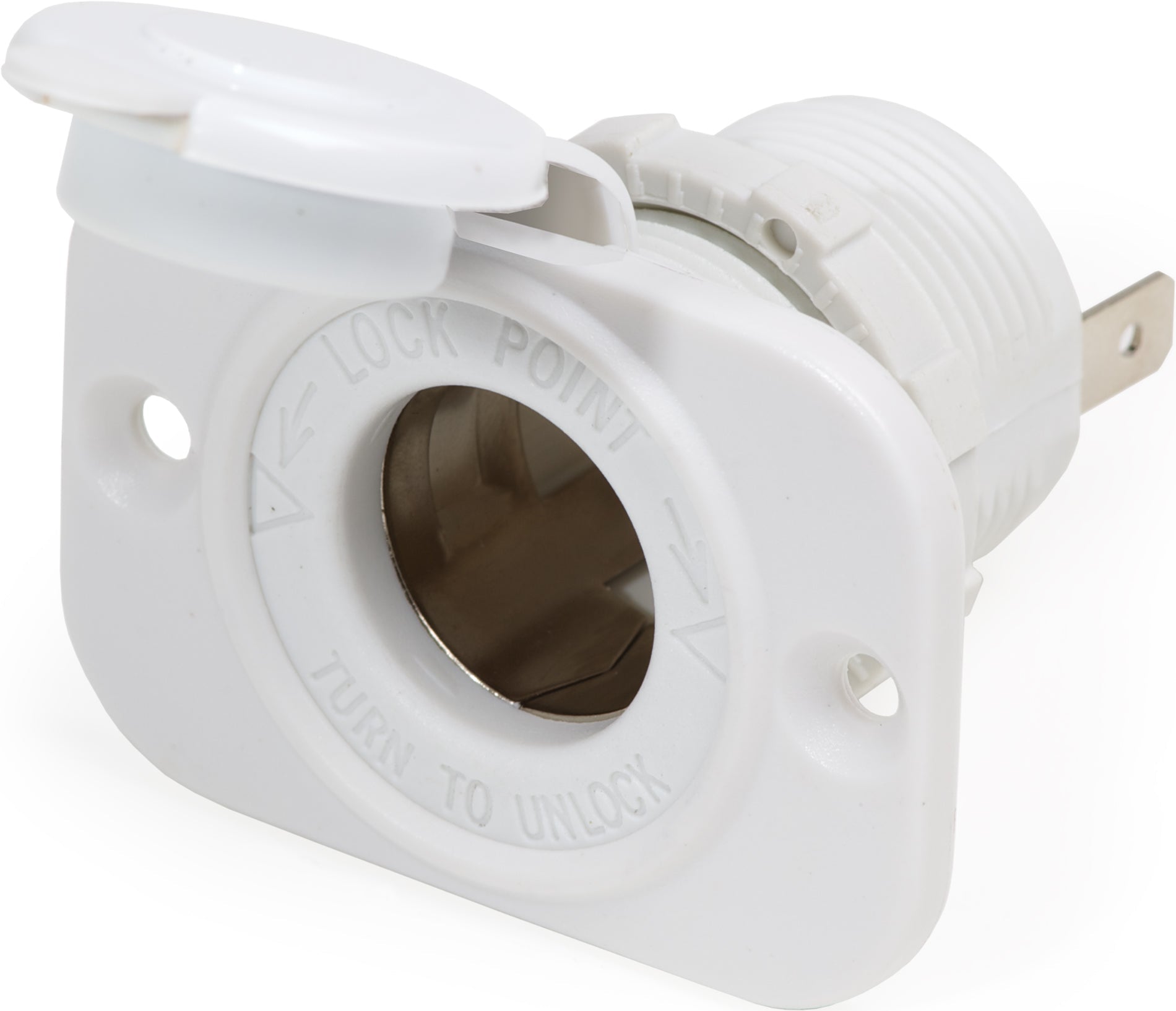

- 1011200: White. The white finish suits light-colored dashboards, fiberglass panels, cabin cabinetry, and clean console layouts where the outlet should blend into the surrounding surface.

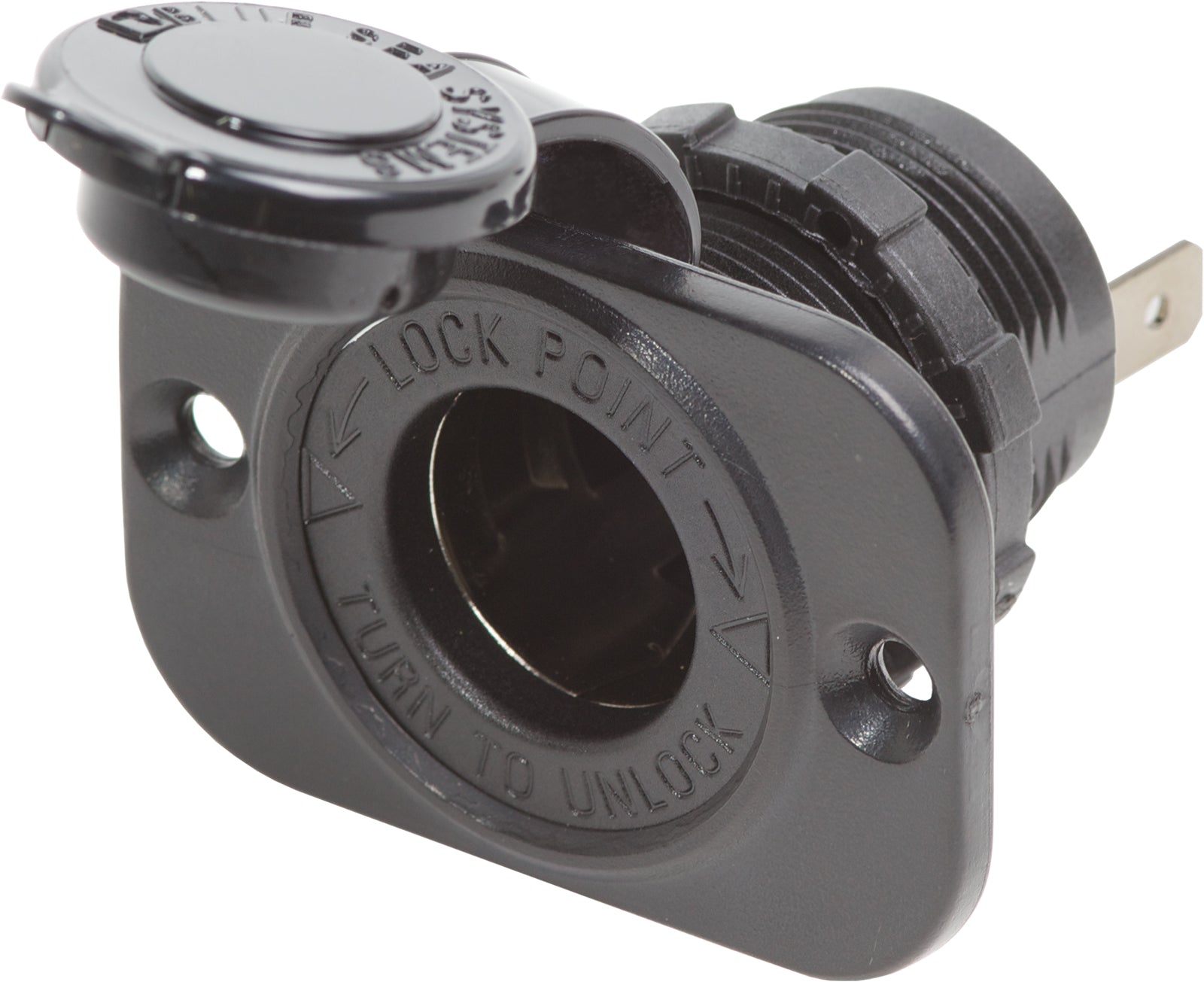

- 1011: Black. The black finish works well on dark helm panels, switch panels, electronics pods, and utility areas where a darker socket is visually consistent with other controls.
