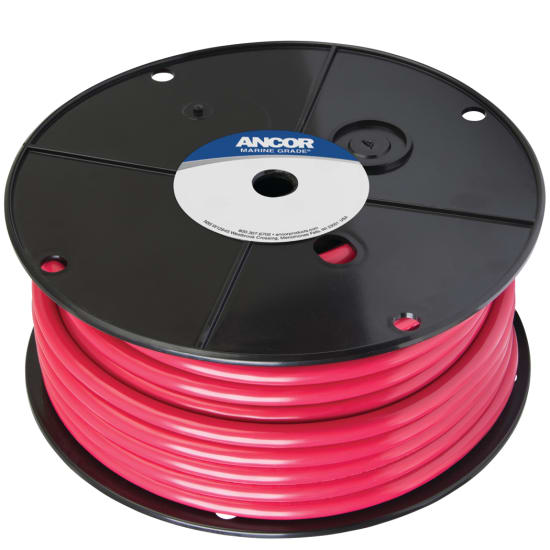

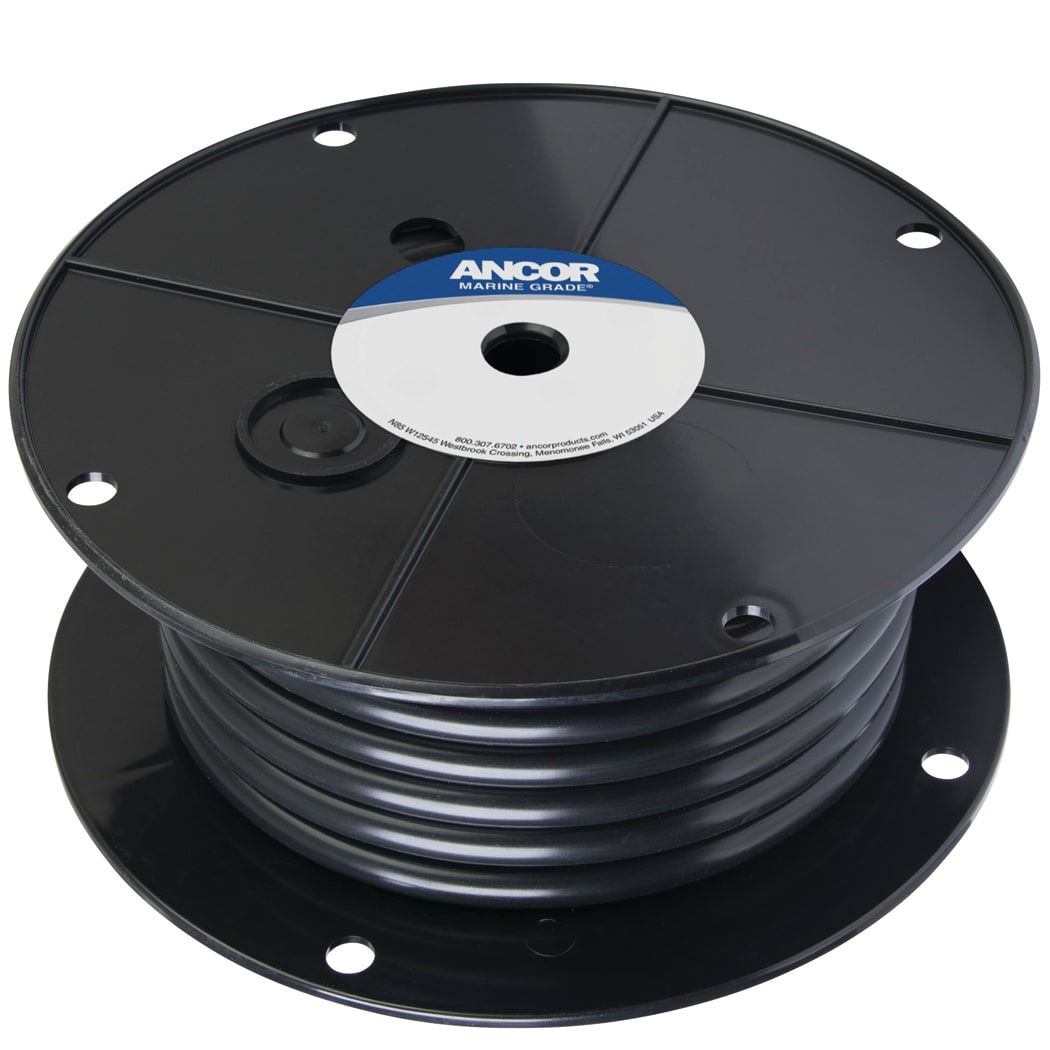

1 AWG Tinned Copper Cable

Ancor

ART-115002-ANC

MPN: 115002

$159.77
$159.77
Sale Sold out
Tax included. Shipping calculated at checkout.
Color
Length
View full details

About This Product

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Technical Specification

Wire Size
42 mm^2
Nominal
17/32"
O.D.
13.5 mm
Wire Diameter
9.0 mm
Stranding No. of 30 AWG
836
Cir. Mil Area
83,690
Ohms per 1000'
0.13
mm^2
42.38
Wt. per 1000'
350 lbs|159 kg
SKU # Part # Color Length Price Quantity
SKU #: ART-115002-ANC Color: Black Length: 25ft $159.77
- +
SKU #: ART-115005-ANC Color: Black Length: 50ft $298.73
- +
SKU #: ART-115010-ANC Color: Black Length: 100ft $588.12
- +
SKU #: ART-115502-ANC Color: Red Length: 25ft $159.77
- +
SKU #: ART-115505-ANC Color: Red Length: 50ft $298.73
- +
SKU #: ART-115510-ANC Color: Red Length: 100ft $588.12
- +
