Technical Specification
Control buttons
power, volume up/down, mute, fast forward, play/pause, rewind, source
Display sizes

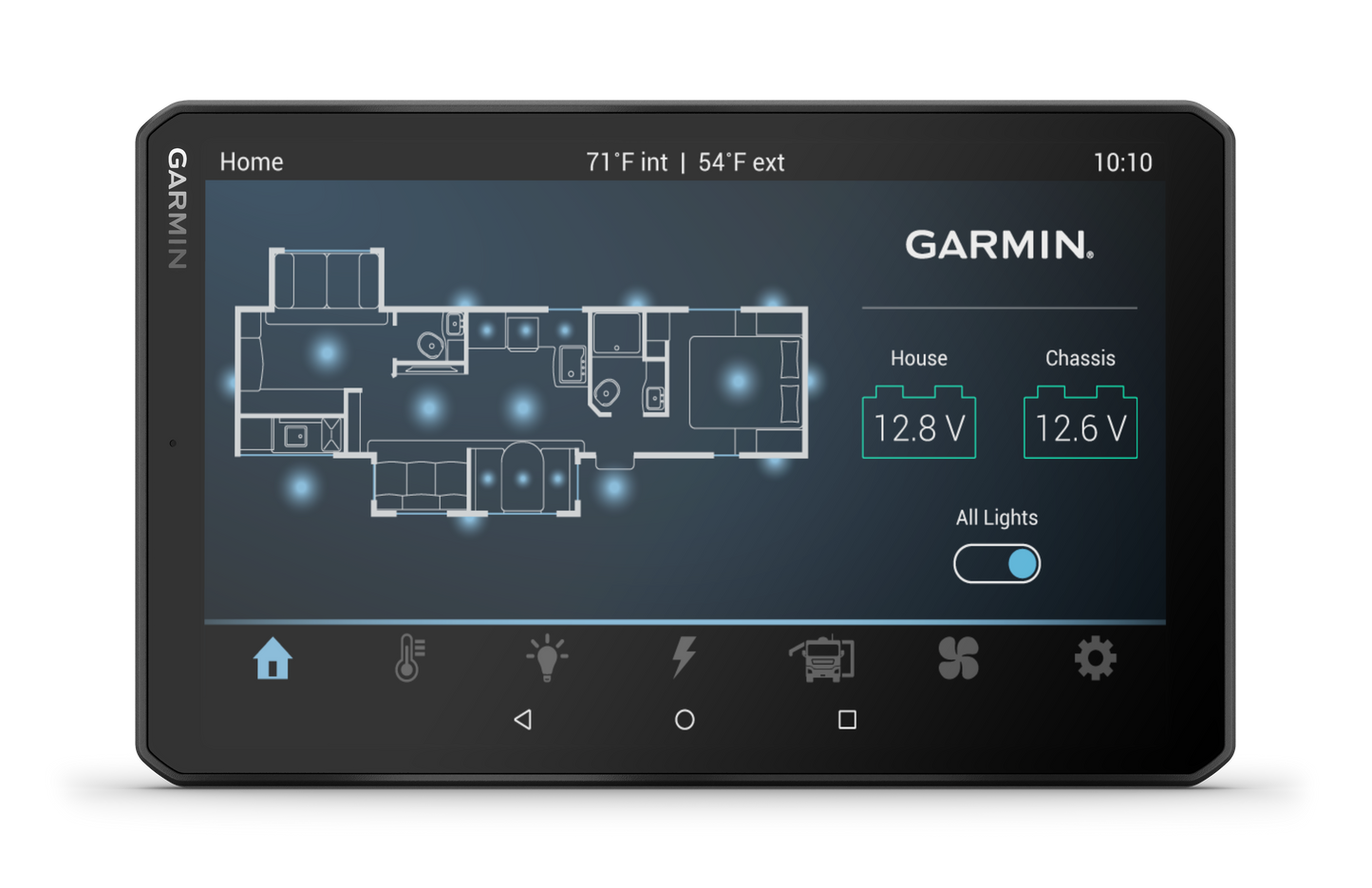

Accomodates RV 2020 Series 7", 8" and 10" displays
Fits DDIN cut-out
yes
Sources
AM/FM RDS / BLUETOOTH / Apple AirPlay 2 Wi-Fi audio streaming / USB audio / AUX x2 / UPnP / MTP / SiriusXM-ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ (available in Europe and Australia only)
Radio features
Dual tuner (RV 52), REG / Regional setting, Alternate Frequency (AF) setting
SiriusXM
yes, with advanced features
Number of presets
15 presets on each
Multi-zone technology
yes, four independent audio zones are available for a customized listening experience
Digital Signal Processing (DSP)
yes, using environmental information and customized Fusion speaker profiles, you can now achieve customized optimized audio
Fusion-link control (wireless)
yes, via the Fusion-Link smartphone app
PartyBus technology
yes (receive and broadcast - wired or wirelessly). Audio distribution network that allows the ability to switch between Party Mode and Personal Mode without disrupting the audio in other areas of the vehicle.
BLUETOOTH wireless technology
BLUETOOTH-audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 BLUETOOTH protocols) (Up to 10 meters (30 feet)
WiFi
yes
ANT technology
yes (up to 3 meters (10 feet))
Internal amplifier
Class-D
Peak power
280W max
Audio output
4 x 26 Watts RMS @ 4 Ohms per channel @ 10% THD+N; 4 x 43 Watts RMS @ 2 Ohms per channel @ 10% THD+N
Audio output
4 x 26 Watts RMS @ 4 Ohms per channel @ 10% THD+N; 4 x 43 Watts RMS @ 2 Ohms per channel @ 10% THD+N
Compatible devices
• Garmin ConnectIQ watch models, ARX70, and ERX400 remotes for media controls • PartyBus networking with SRX400, RA770, and IN1501 • EmpirBus Connect 50 and DCM family modules via NMEA 2000
Steering wheel control
Integrates with compatible vehicle chassis steering wheel controls
Operating voltage
+10.8 - 16V dc
Line out
4 (1 x L + R per zone. Requires external amplification)
Auxiliary inputs
2 x RCA inputs (AUX1 stereo input, AUX2 camera audio input only)
Ethernet
One Ethernet port
USB 2.0 port
2 x USB 2.0 port (1 for phone charging/media playback on the dash; 1 reserved for Garmin accessory use)
SiriusXM
One SiriusXM port (requires optional SiriusXM Connect vehicle tuner)
AM/FM radio
One Motorola antenna connector port
Speaker
4 x speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer)
2 x zones of RCA pre-outs (L, R, Sub; 2 additional zones are in the ISO harness)
RCA pre-out (left, right and subwoofer)
2 x zones of RCA pre-outs (L, R, Sub; 2 additional zones are in the ISO harness)
Ignition
2 ignition connections (powered from house batteries with dual on/off control from ignition and/or house switch; plus front panel on/sleep button)
Composite video
4 x CVBS inputs (for backup, blindspot, and forward looking cameras)
Digital I/O's
3 x camera selects, such that blind spot and back up can be triggered both automatically and manually by user via SW
Operating voltage
+10.8V - 16V DC
Regions
USA, Canada, Europe, EU DoC, Australia and New Zealand
Certification
FCC, RSS (Canada),CE, USB, BLUETOOTH SIG, Apple Mfi, WiFi, RoHS
