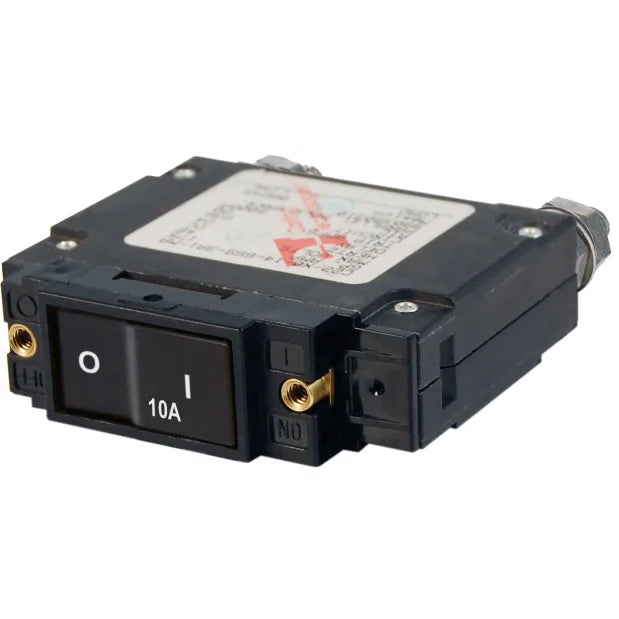

UL-489 Flat Rocker C-Series Flat Rocker Circuit Breaker

Blue Sea Systems

ART-7540-BSS

MPN: 7540

$59.35
$59.35
Sale Sold out
Tax included. Shipping calculated at checkout.
Poles
Amperage
View full details

About this product

Suitable for use when UL-489 specifications are required such as Navy, Army, or Coast Guard vessels, and other vessels. Meets CRF 46 Coast Guard requirements. They combine switching and circuit protection into a single device. The magnetic hydraulic “Trip Free” component cannot be held closed after tripping. The flat rocker actuator is flush in the “ON” position eliminating the risk of accidental switching. They are rated for 10,000 switch cycles at the rated amperage and voltage.

Key Features

DC

  • Large frame provides stud termination for 5-300 Amp loads
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Trip free - cannot be held closed after trip

AC

  • Used for 120/240 Volt AC circit protection
  • Double pole can be used as AC Main circuit breakers to switch hot and neutral or two hots in 120/240 Volt AC Branch applications
  • Triple pole can be used as 120/240 Volt AC Main circuit breaker to switch both lines (hots) and neutral
  • Double and triple pole circuit breakers will trip all poles if any one pole trips

Technical Specification

Actuator Style
Flat Rocker
Circuit Breaker Type
Magnetic Hydraulic—Trip free
Interrupt Capacity
5000A
Mounting Screw
#6-32 SS
Switching Cycles
10000

No Documentation available.

SKU # Part # Poles Amperage Price Quantity
SKU #: ART-7540-BSS Poles: 1-Pole Amperage: 5A $59.35
- +
SKU #: ART-7541-BSS Poles: 1-Pole Amperage: 10A $59.35
- +
SKU #: ART-7542-BSS Poles: 1-Pole Amperage: 15A $59.35
- +
SKU #: ART-7543-BSS Poles: 1-Pole Amperage: 20A $59.35
- +
SKU #: ART-7545-BSS Poles: 1-Pole Amperage: 30A $59.35
- +
SKU #: ART-7546-BSS Poles: 1-Pole Amperage: 50A $59.35
- +
SKU #: ART-7547-BSS Poles: 1-Pole Amperage: 60A $59.35
- +
SKU #: ART-7548-BSS Poles: 1-Pole Amperage: 80A $59.35
- +
SKU #: ART-7462-BSS Poles: 2-Pole Amperage: 15A $81.70
- +
SKU #: ART-7465-BSS Poles: 2-Pole Amperage: 30A $81.70
- +
SKU #: ART-7467-BSS Poles: 2-Pole Amperage: 50A $91.64
- +
