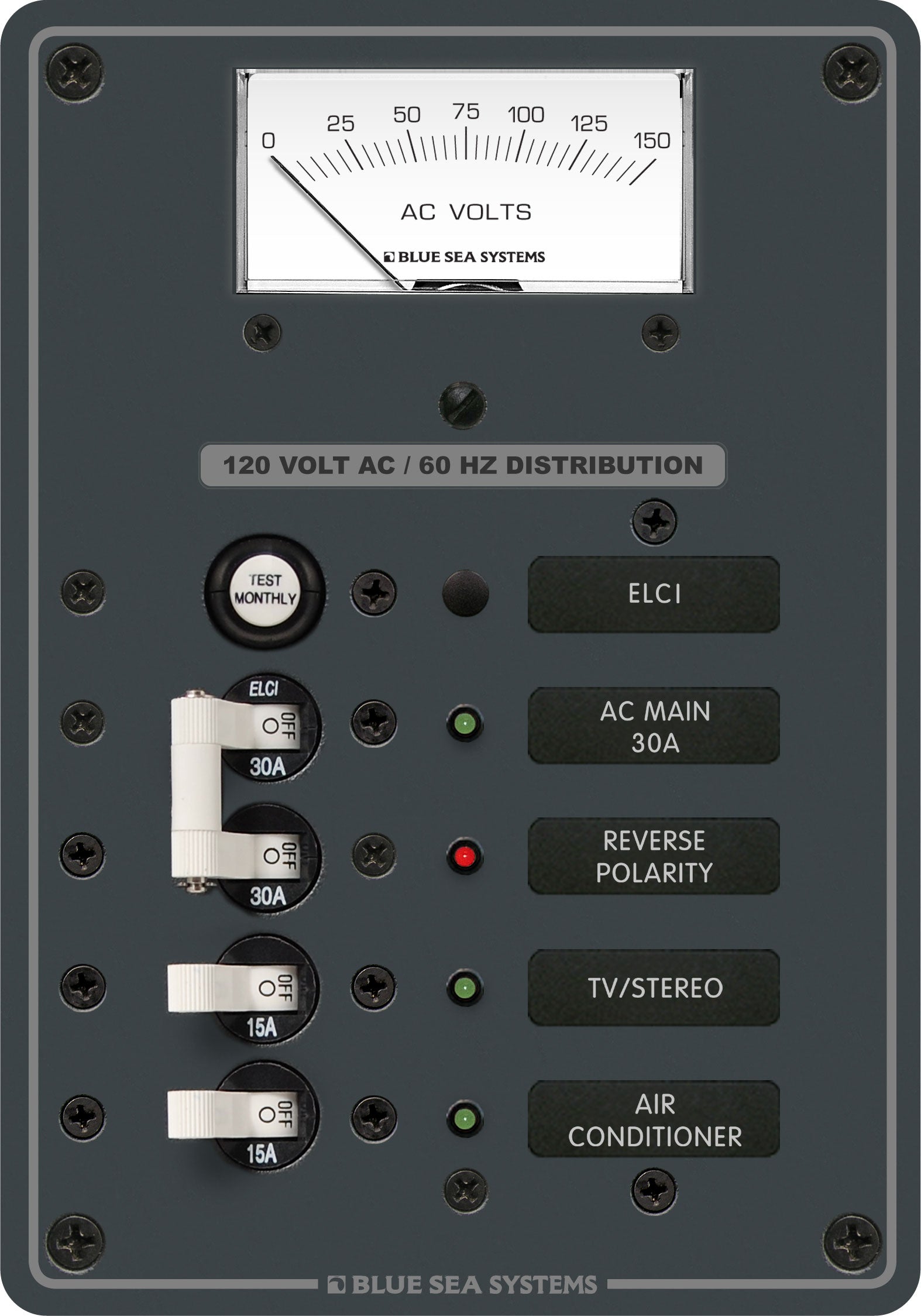

ELCI Main 30A Double Pole + 2 Positions with Voltmeter

Blue Sea Systems

ART-8102-BSS

MPN: 8102


$766.31
$766.31
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About This Product

The Blue Sea Systems ELCI Main Panel (8102) provides ABYC E-11 compliant whole-boat shore power protection. It features a 30A double-pole ELCI breaker (30mA trip), a built-in AC voltmeter, two branch breaker positions, and reverse polarity protection.

Key Features

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs

Technical Specification

Positions
2
Nominal Voltage
120V AC
Leakage Trip Amps
30mA
Height
7.50in (190.5 mm)
Width
5.25in (133.35 mm)
Depth
3.50in (88.9 mm)
