About this product

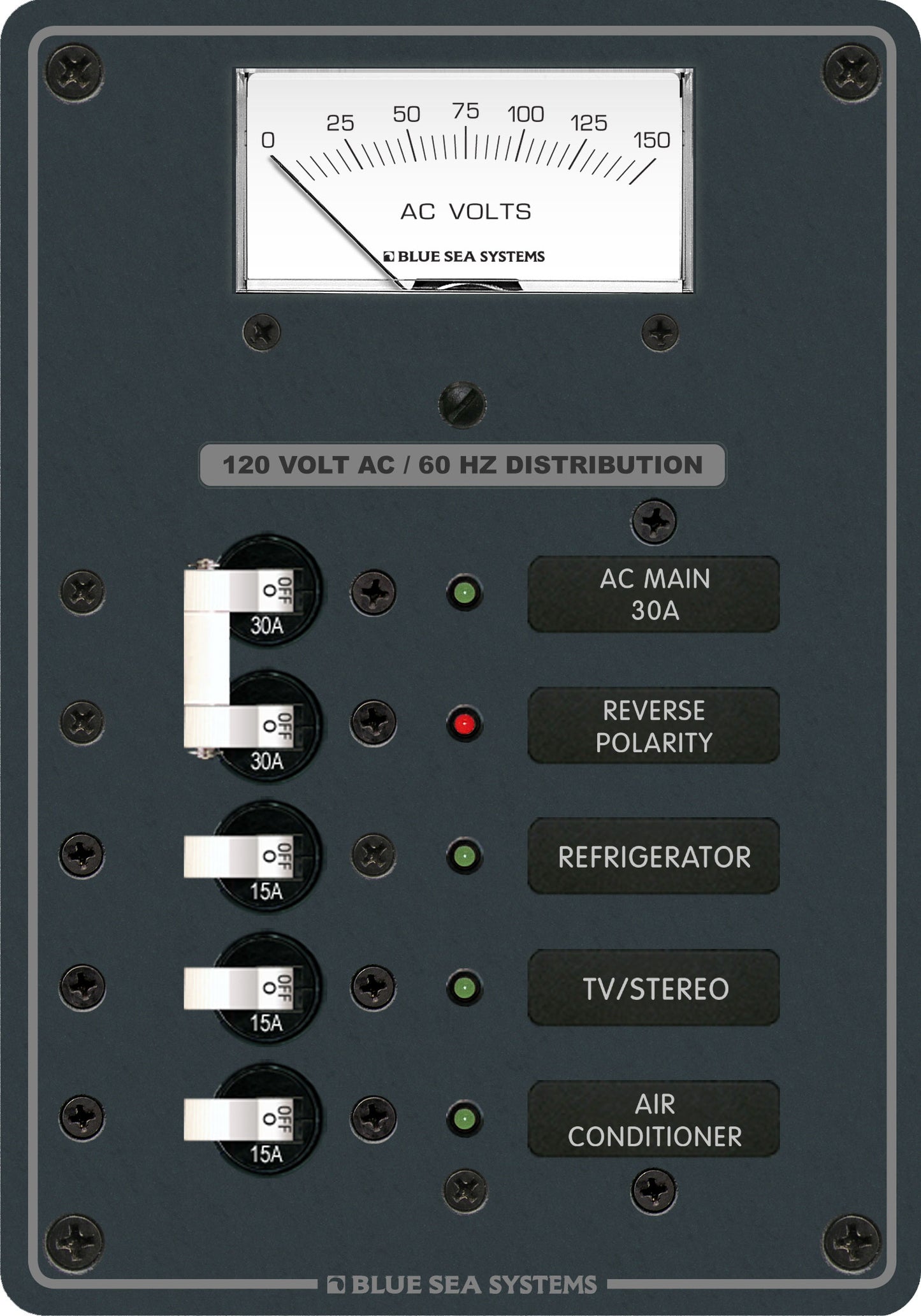

The Blue Sea Systems Traditional Metal AC Main Distribution Panel is a boat AC distribution panel range with an analog AC voltmeter, a main breaker, branch circuit switching, reverse polarity indication, and installed AC buses.

Each panel gives the helm, cabin, or electrical locker a clear point for managing shore power or other onboard AC sources. The analog voltmeter lets the operator check incoming AC voltage at a glance, while the circuit position LEDs and backlit label areas help identify energized circuits during night operation or in low-light cabins.

Key Features

• Traditional metal AC main distribution panel format for boat AC branch circuit control and monitoring.
• Red reverse polarity LED helps flag incorrect AC source wiring before the system is used.
• AC hot, neutral, and safety ground buses are installed and fully pre-wired to reduce panel wiring time.
• ON indicating LEDs are installed in the circuit positions for a clear view of energized branch circuits.
• Backlit circuit label positions are standard, so no separate backlight kit is needed for the labels.
• Panel buses are sized for 100A of continuous current, with the final circuit protection determined by the installed breakers and the vessel wiring.
• Panel face uses 0.125 in 5052-H32 aluminum alloy with a graphite 2-part textured polyurethane finish.
