Surface Mount System Panel Enclosure, 6 Circuit Blank

Wholesale - Artek

ART-3113-BSS

MPN: 3113

$245.45
$245.45
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About this product

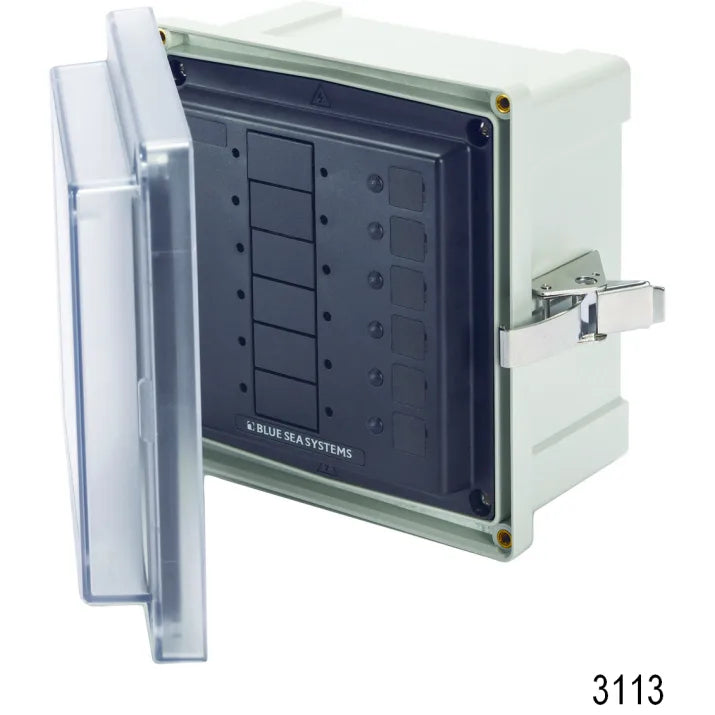

The Blue Sea Systems SMS Surface Mount System 6-Circuit Blank Panel Enclosure 3113 provides a clean, professional solution for custom breaker installations. Designed for ELCI Main breakers and large-frame devices, it features a durable polycarbonate box with a clear, gasketed cover for easy status viewing. Meets ABYC E-11 when properly installed near shore power.

Key Features

  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • Green LEDs for backlighting and ON indication

Technical Specification

Cover Screws and Hardware
10-32 Stainless Steel
Enclosure Size
6.0" x 6.0" x 4.0"
Exterior Overall Dimensions
7.6" x 7.4" x 4.7"
Weight
7.00lb (3.18 kg)
