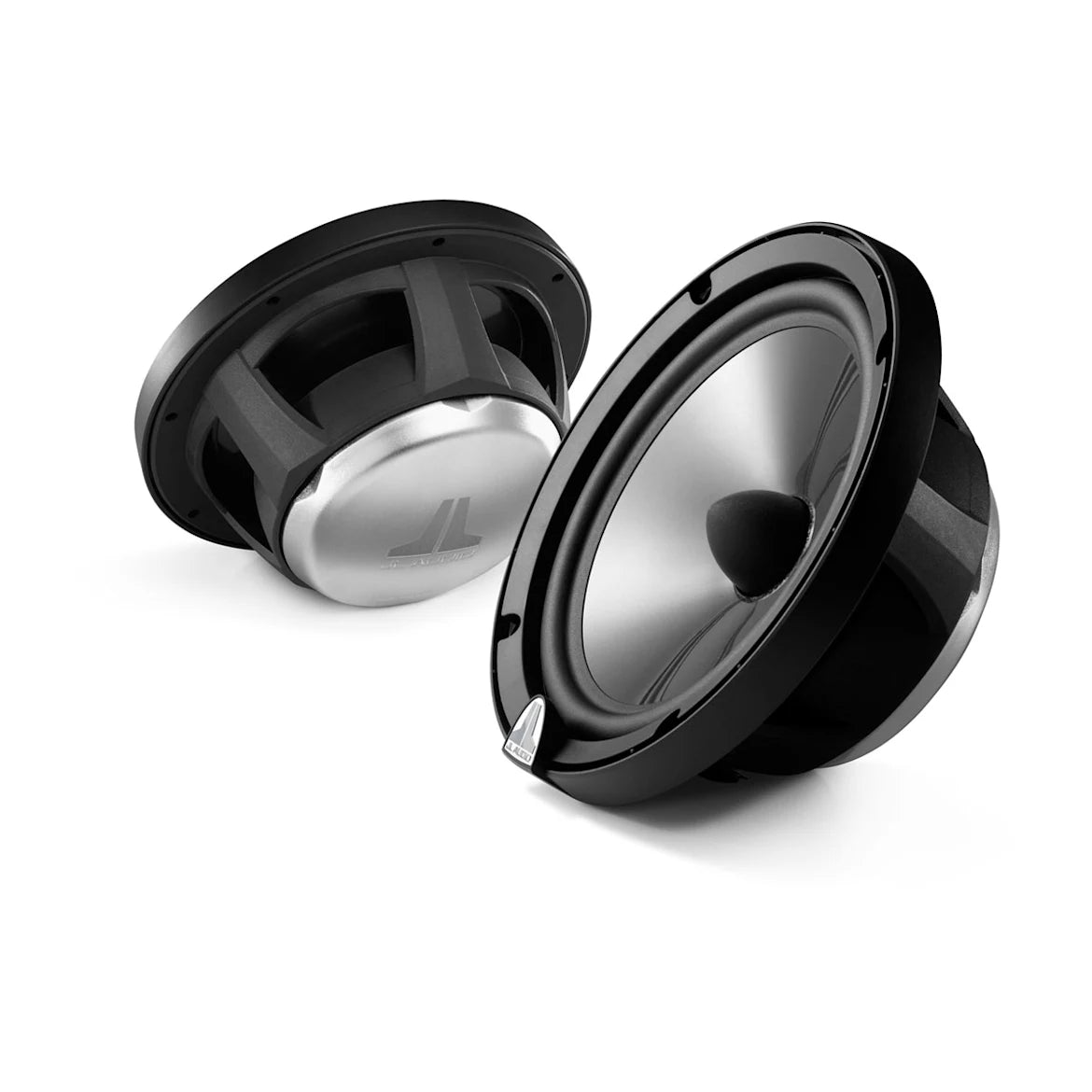

JL Audio® C3 Car Speakers

Wholesale - Artek

ART-0100317200-GAR

MPN: 010-03172-00

$529.99
$529.99
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About this product

Get the perfect installation — whether it’s a separate woofer and tweeter or a coaxial system. With C3 convertible component systems, the same product can be deployed in either configuration while delivering amazing sound quality.

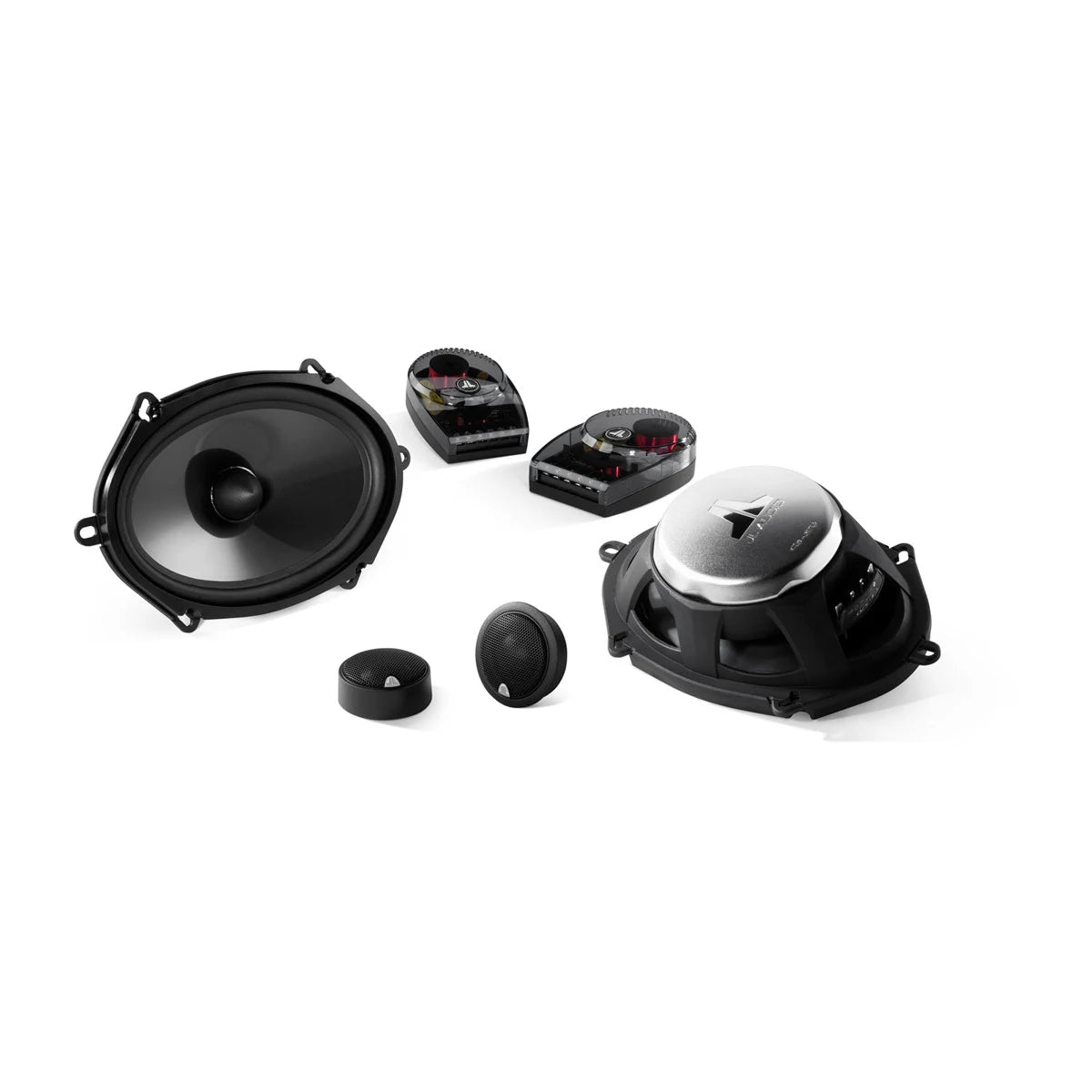

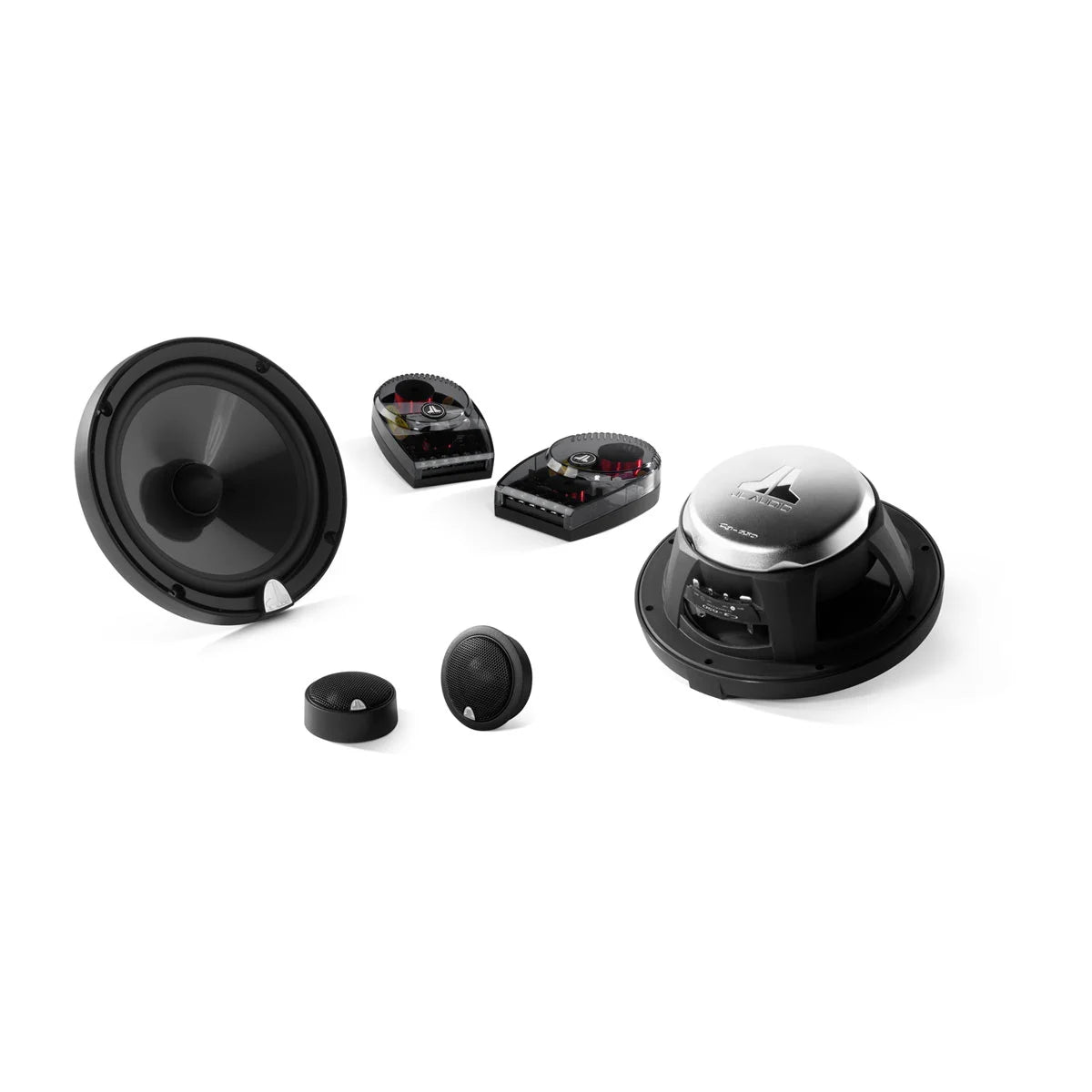

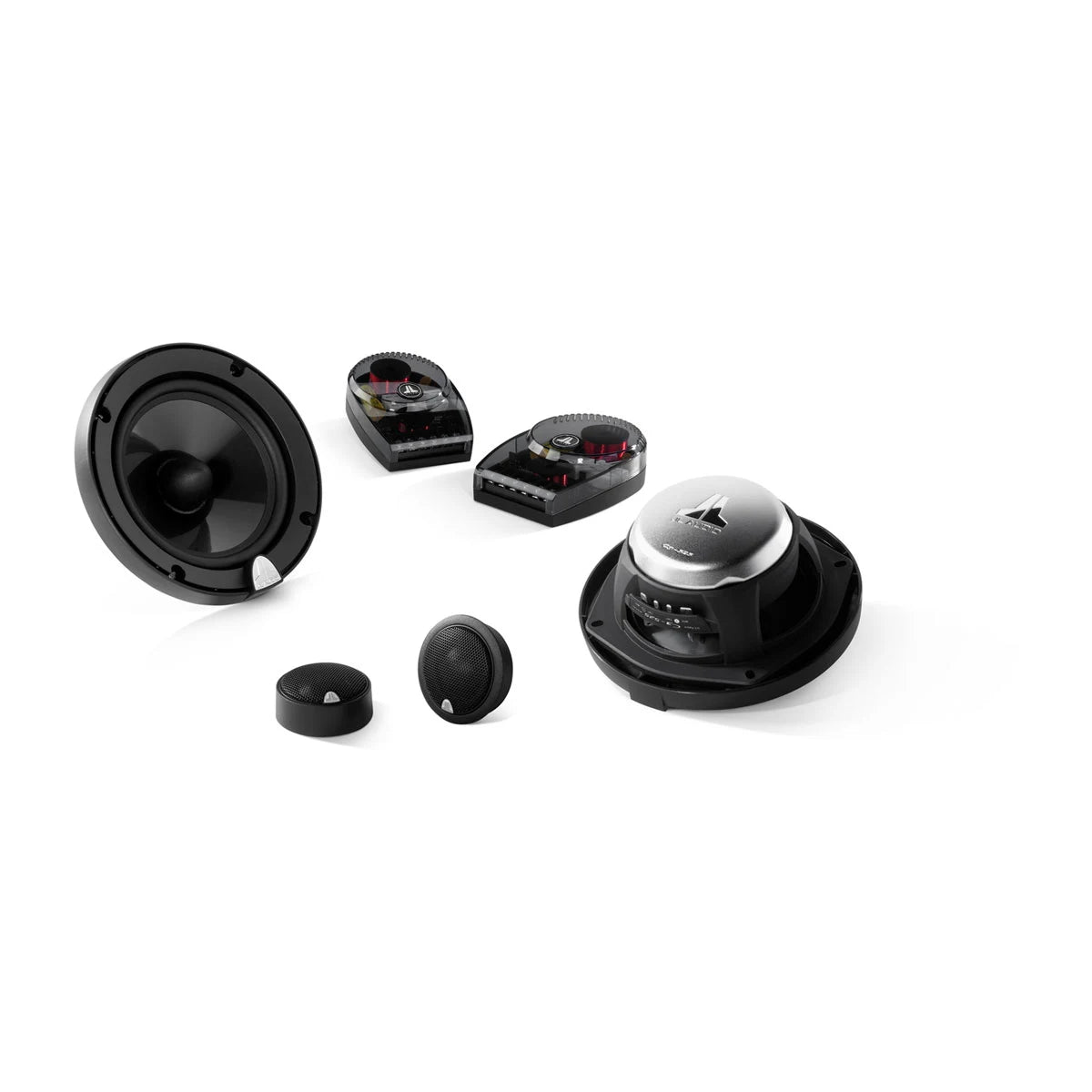

6.5" Two-way Coaxial/Component System

Key Features

  • Complete Flexibility
  • Coaxial Installation
  • Premium Outboard Crossover
  • Long Excursion Woofer

Technical Specification

Sizes
1"/5 x 7"/5.25"/6"/6.5"
Continuous power handling (RMS)
75 W
Sensitivity (SPL @ 1 W/1 m)
90 dB 6" 89.5 dB
Frequency response (+/- 3 dB)
5.25"/5 x 7"/6.5" 48 Hz-25 KHz ± 3 dB 6" 48 Hz-25 KHz 1" 4 kHz-25 KHz
Recommended amplifier power (RMS)
25-150 W/Channel
Frame outer diameter
5.25" 5.80" (147 mm) 5 x 7" 5.52 x 7.68" (140 x 195 mm) 6" 6.21" (157.7 mm) 6.5" 6.5" (165 mm)
Mounting depth clearance
5.25" 2.27" (58 mm) 5 x 7" 2.52" (64 mm) 6" 2.49" (63 mm) 6.5" 2.55" (65 mm)
Frontal grille protrusion
5.25" 1" (25 mm) 6"/6.5" 1.03" (26.2 mm)
Mounting hole
5.25" 4.56" (116 mm) 6" 5" (127 mm) 6.5" 5.56" (141 mm)

No Documentation available.
