Shelly Wave Pro Shutter US

Shelly

ART-3800238071875-SHE

MPN: 3800238071875

$138.99
$138.99
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About this product

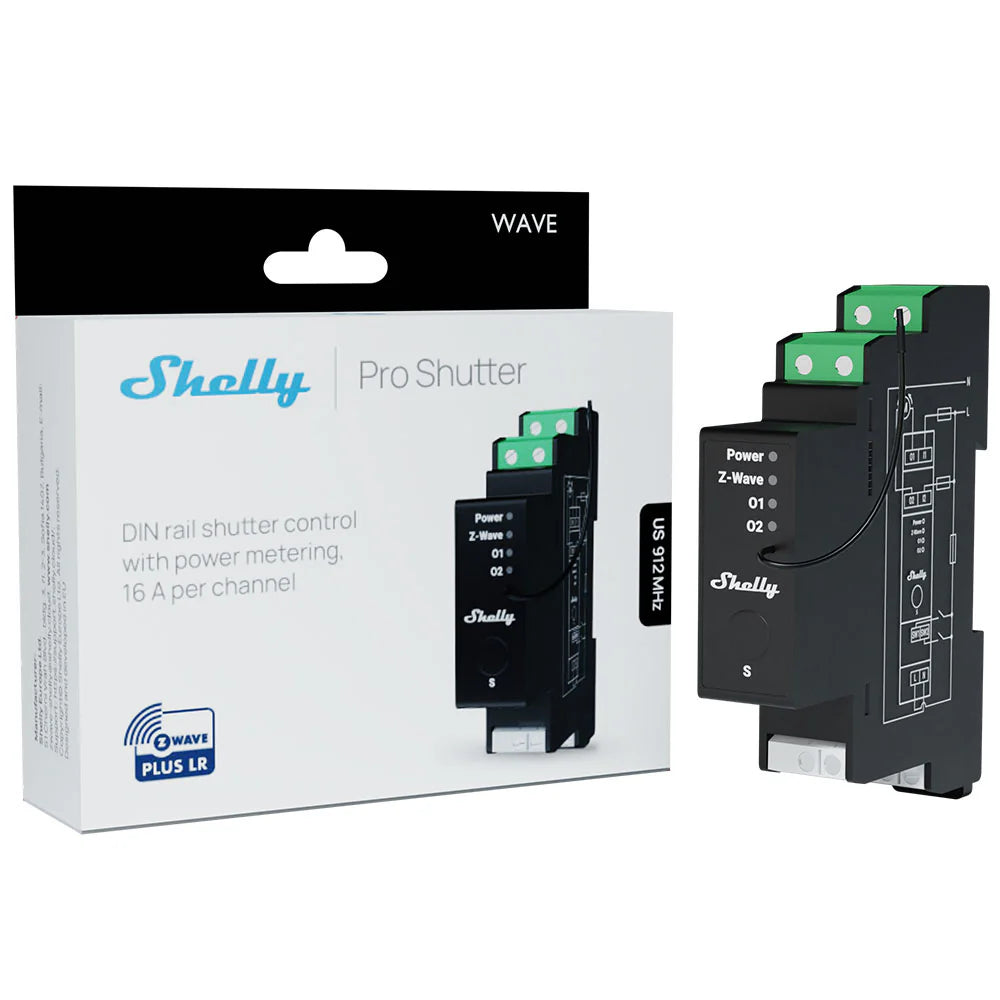

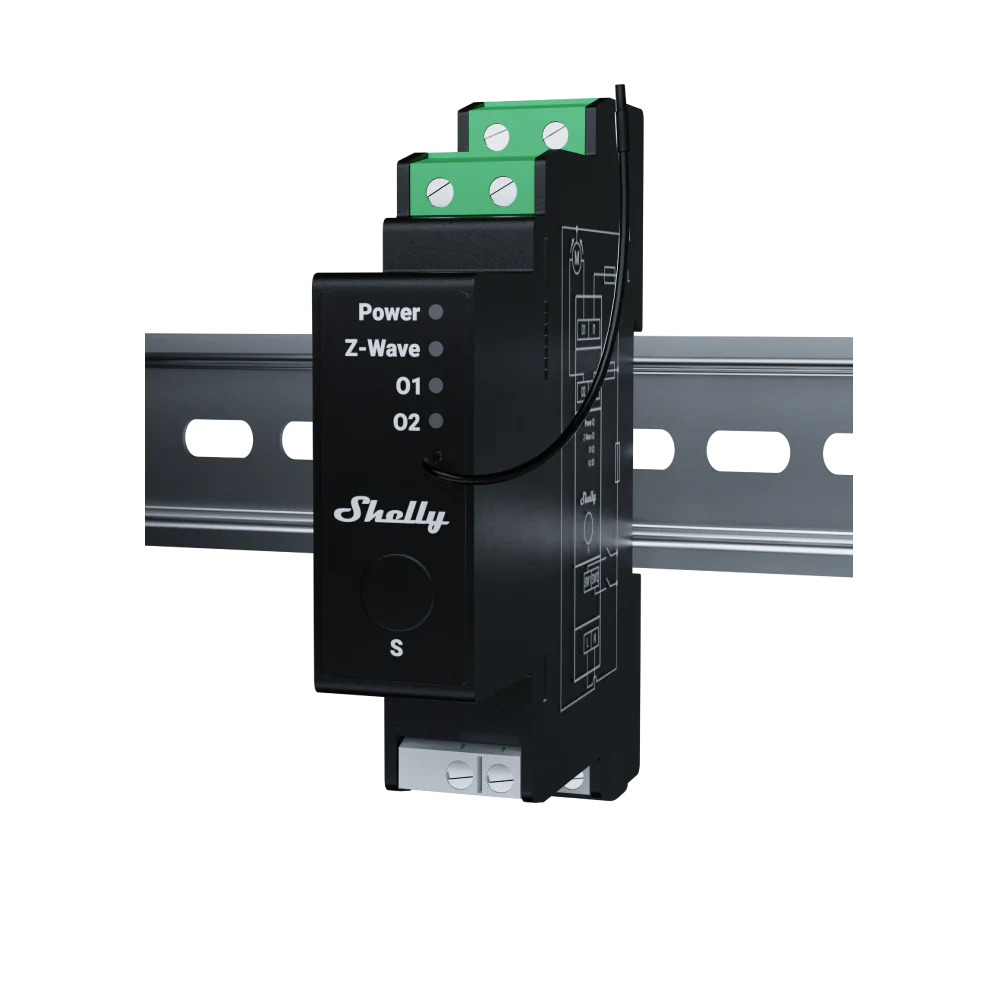

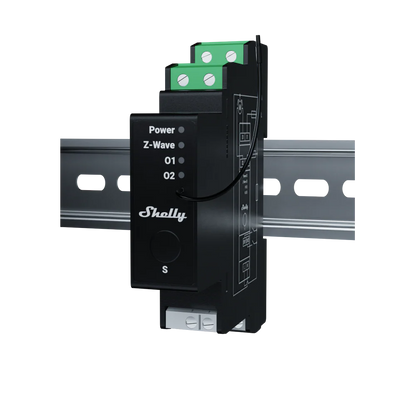

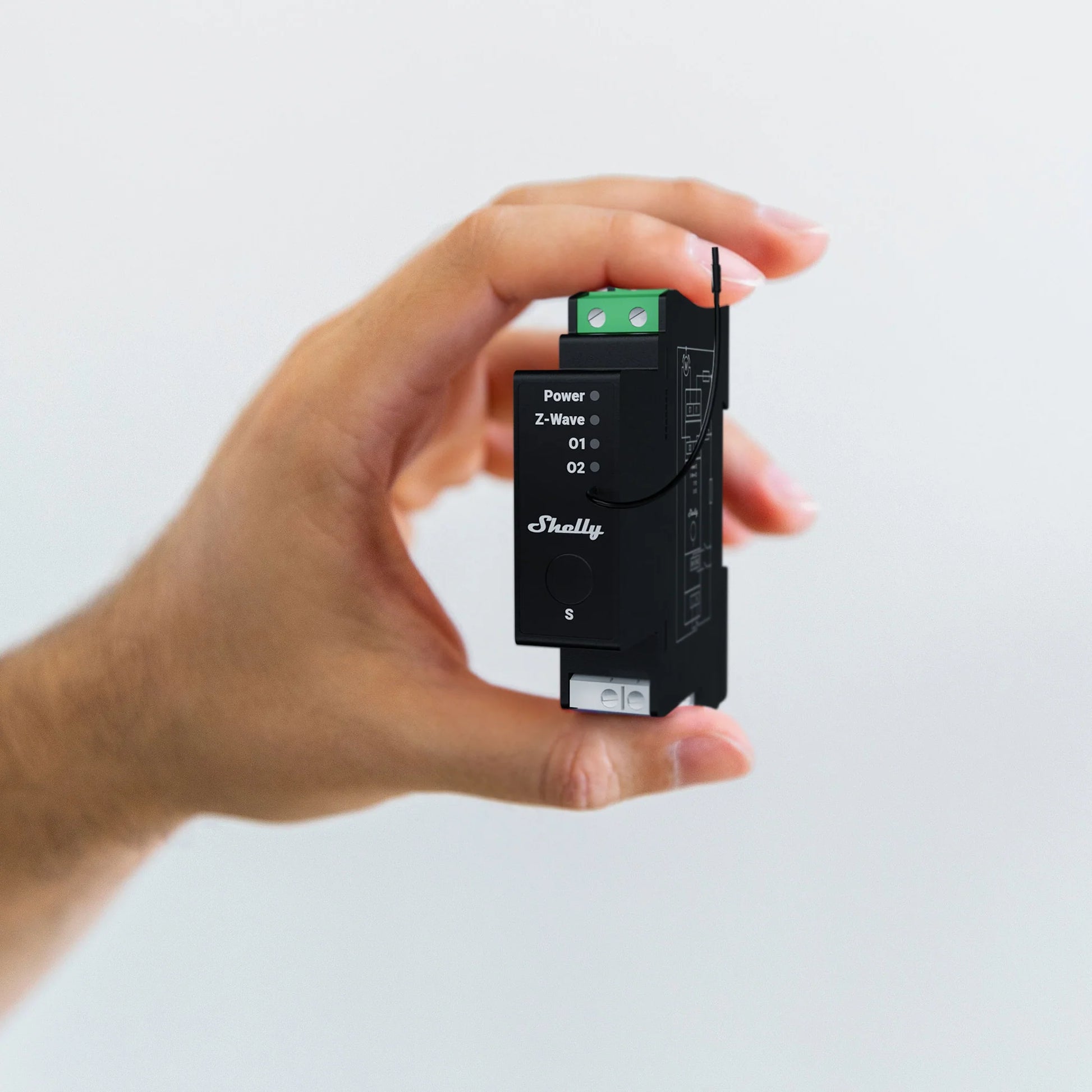

The Device is a DIN rail mountable and enables remote control of motorized blinds, roller shutters, venetian blinds, awnings, etc. It measures power consumption of the connected device. It is recommended to use only motors with electronic or mechanical limit switches. The motor limit switches must be set correctly before connecting the Device to the motor.

Key Features

  • Control the tilt position (angle) of the venetian blind slats
  • Supports push-buttons/momentary switches, and toggle switches​
  • Power metering​​
  • Supports Z-Wave Long Range - mantains a strong connection over distances exceeding 1 mile (line of sight)
  • Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz ( Z-Wave Plus)
  • Energy efficient: uses only up to 0.3 W of power
  • DIN-rail mountable
  • Latest technology: Z-Wave 800 Series​
  • Easy set up with SmartStart - just scan and go
  • Security 2 Authenticated for the highest level of security​
  • Supports over-the-air firmware updates​

Technical Specification

Size (H x W x D) 94x19x69 ± 0.5 mm / 3.70x0.75x2.71 ± 0.02 in
Weight 75 g / 2.65 oz.
Mounting DIN rail
Conductor cross section 0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (white connectors)
Shell material Plastic
Ambient temperature -20°C to 40°C / -5°F to 105°F
Power supply 120 V AC 50/60 Hz
Power consumption < 0.3 W

No Documentation available.
