About this product

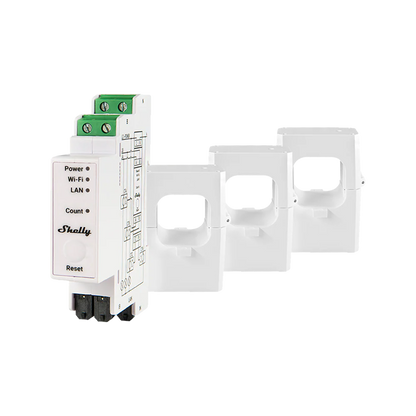

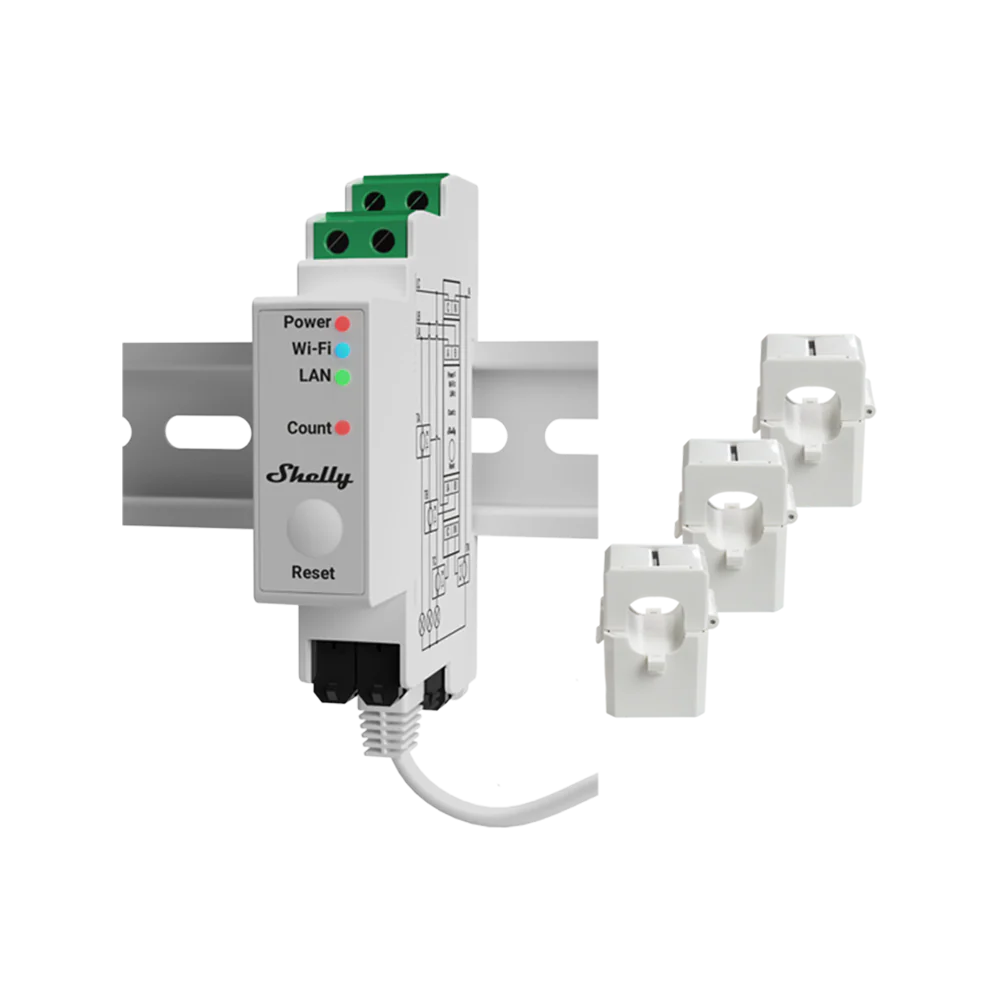

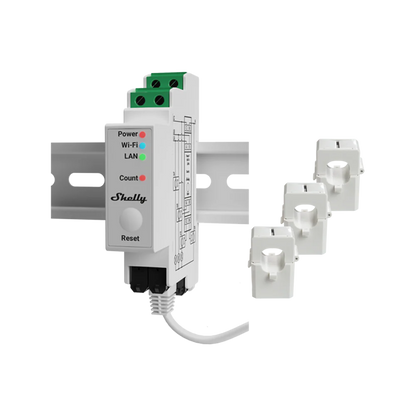

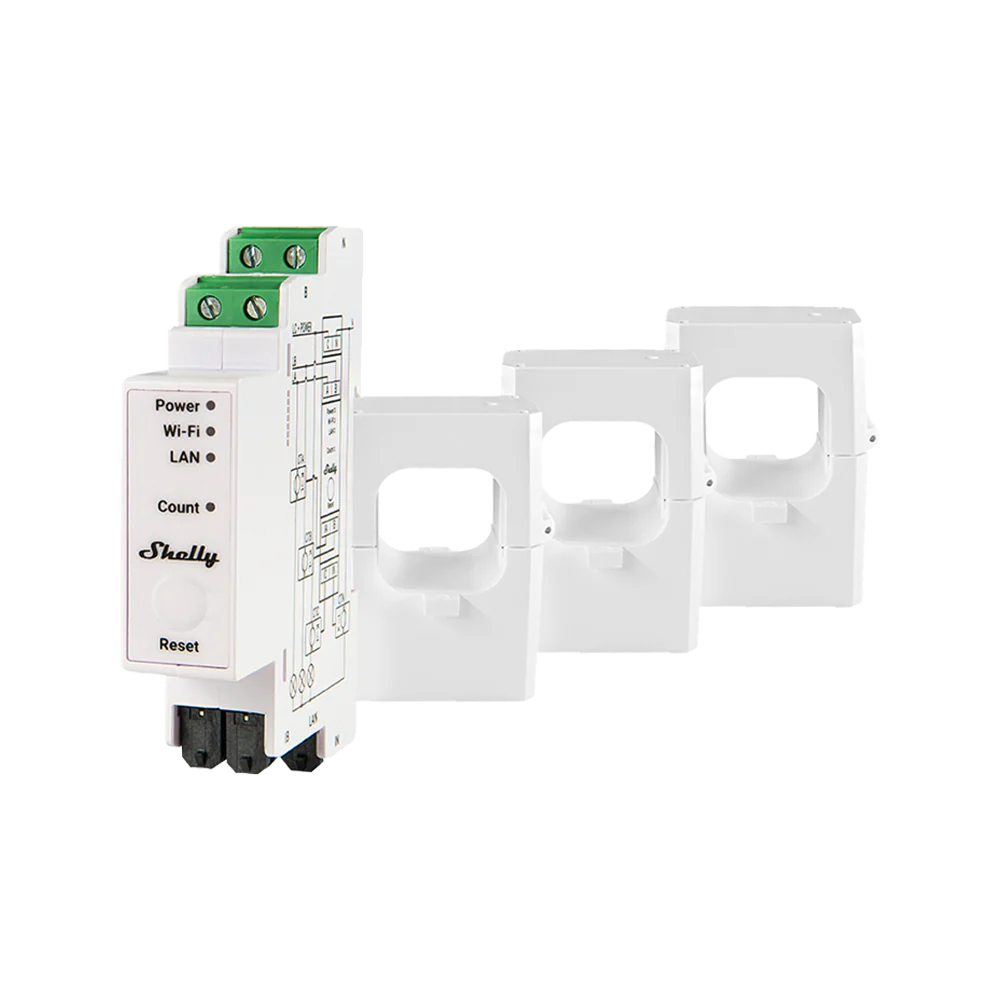

Shelly Pro 3EM (The Device) is a DIN rail mountable three-phase energy meter. The Device is Matter-ready. It can work standalone in a local LAN and/or Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS.

The Device reports accumulated energy as well as instantaneous voltage, current, active, and apparent power per phase in real time. It stores data in non-volatile memory that can be retrieved for a period of at least 45 days in 1-minute intervals.

The Device has a real-time clock to keep the correct time if the connection to an SNTP server is lost.

Shelly Pro 3EM can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.

The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

⚠NOTICE! The Device does not have a built-in relay. Contactor control is provided using a Shelly Pro Addon attached to the Shelly Pro 3EM.

Key Features

• 4 quadrant measurement with multiple connection types
• Accuracy Class B active energy (Compliance with IEC 62053-21 based on manufacturer testing)
• Photovoltaic ready
• Phase sequence error detection (option)
• Optical pulse indication of energy usage
• Measurement accuracy tо 1%
• Stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals
