ABOUT THIS PRODUCT

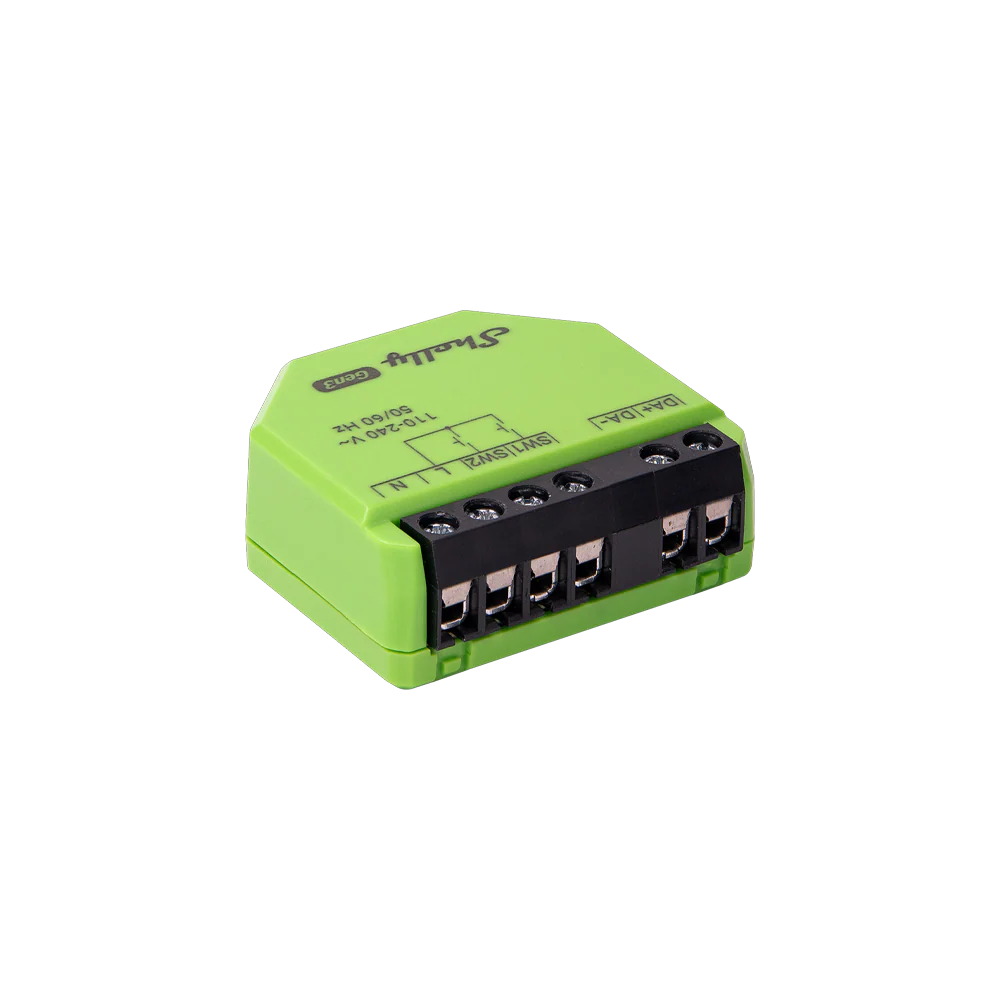

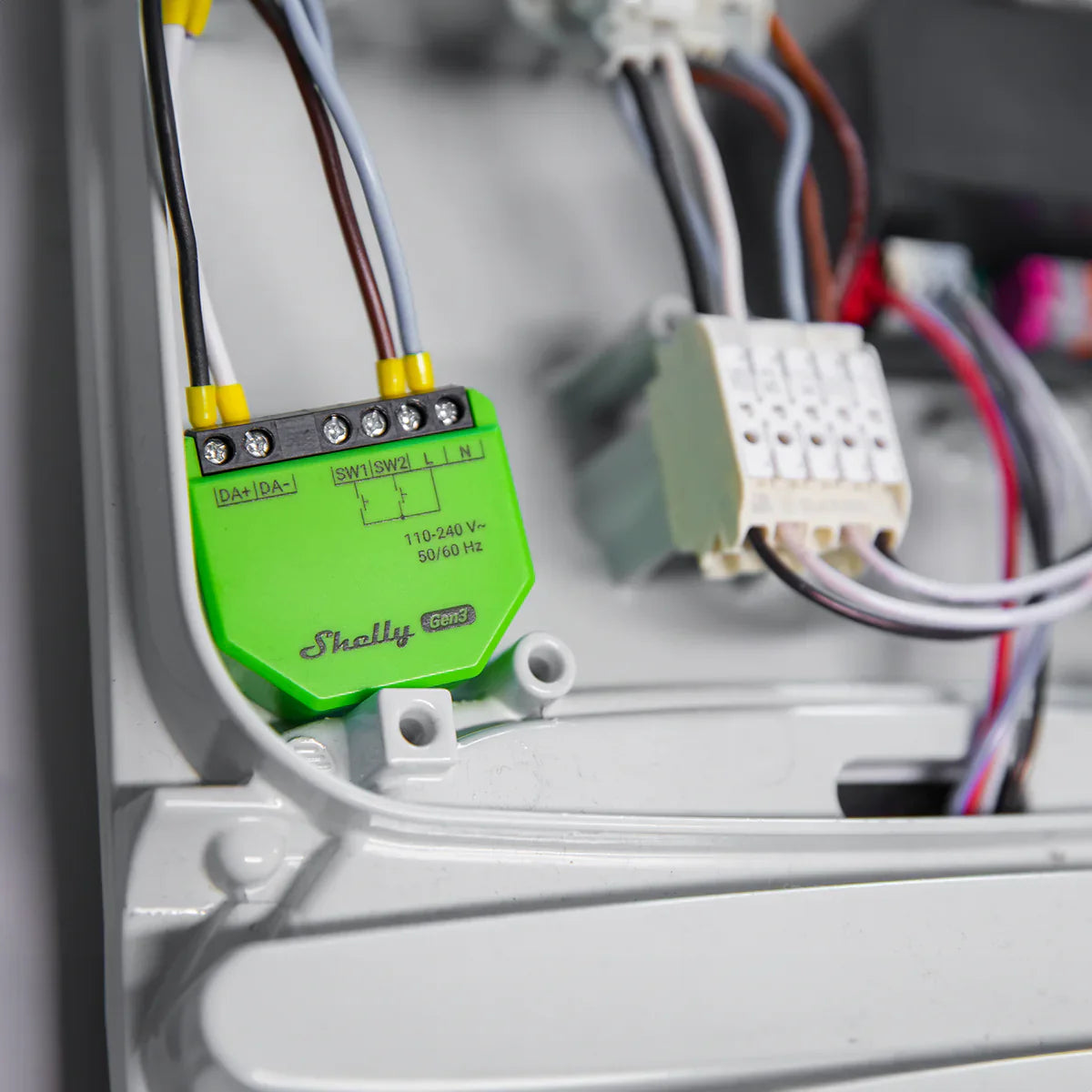

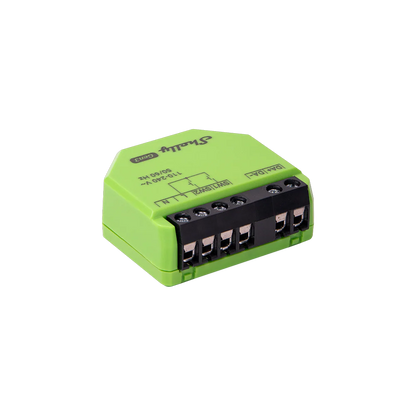

Shelly DALI Dimmer (the Device) is a gateway device between Shelly ecosystem and APIs and a DALI network of lights. It can control DALI capable light sources that contain DALI control gear.

In terms of DALI it is a single-master application controller, supporting LED control gear (Part 207), which does not share the bus with other DALI control devices. Shelly DALI Dimmer controls all connected DALI control gear as a single group with broadcast messages.

The Device contains a bus power supply with possibility to control up to X non-powered bus units.

The Shelly DALI Dimmer can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to a Wi-Fi router and the Internet.

It has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings.

KEY FEATURES

• Matter certified
• Wi-Fi and Bluetooth connectivity (BLE gateway and Wi-Fi range extender)
• DALI single master application controller
• Supports LED control gear (DALI Part 207 gear)
• Bus power supply guaranteed 10mA (up to 5 DALI control gear units)
• Smart schedules
• Night mode: Enables to set a specific brightness of lights during night time
• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control
• Button fade rate: Controls how quickly the brightness changes while holding the button(s)
• Transition duration: Controls the time for dimming from 0 to 100%
• Supports scripting, webhooks, MQTT and local actions
• Supports KNXnet / IP communication
• No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
