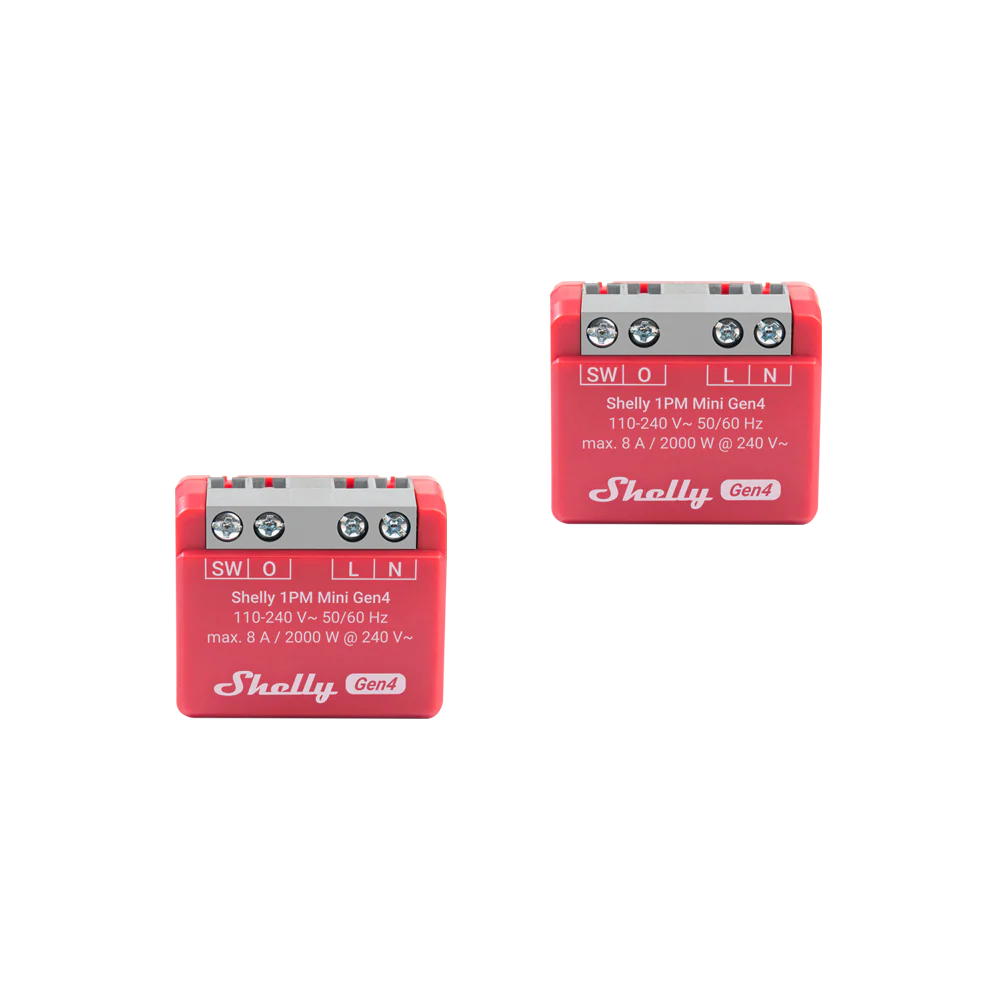

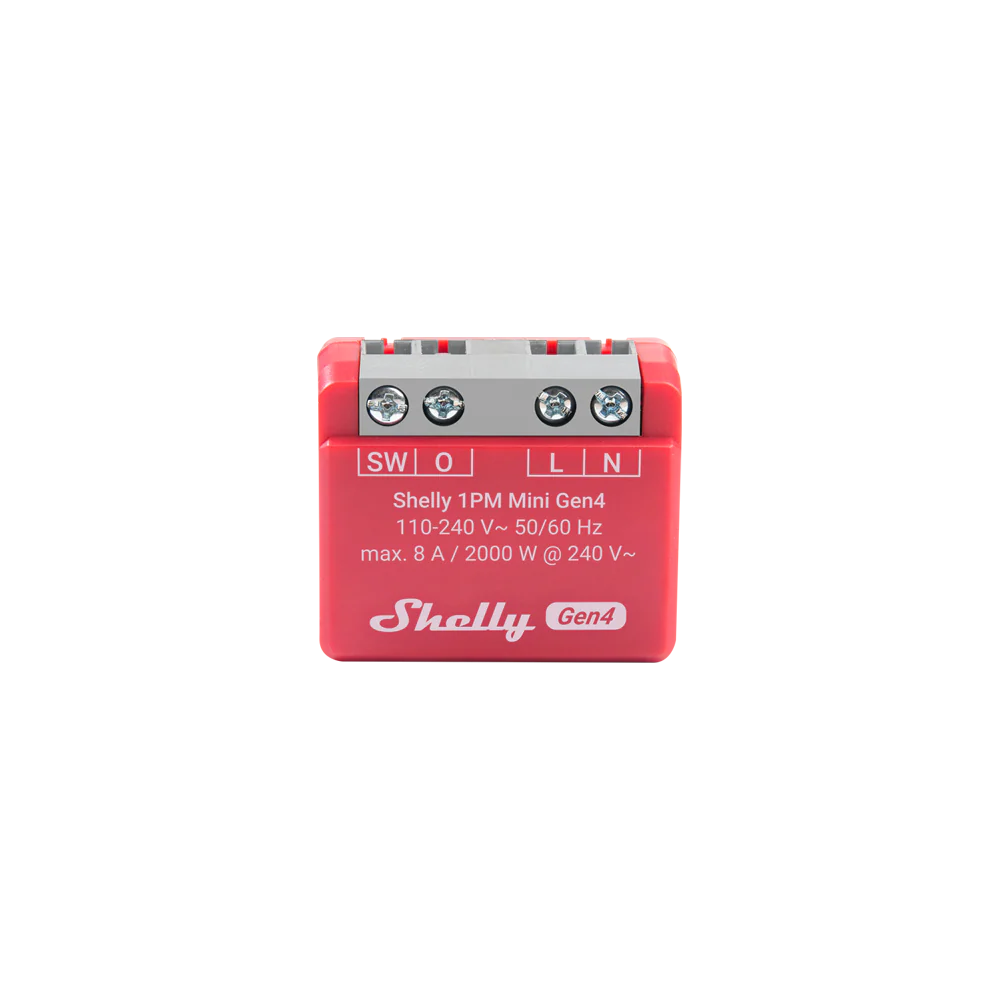

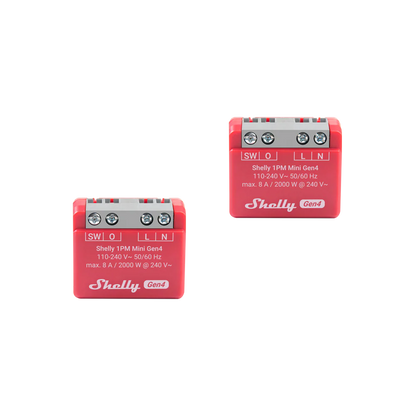

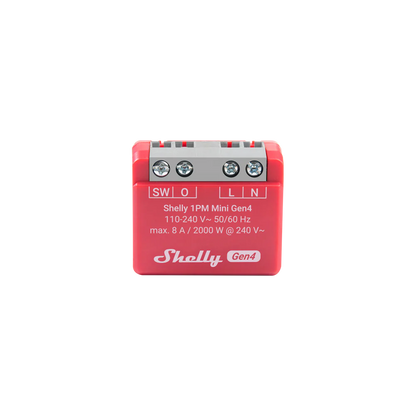

Shelly 1PM Mini Gen4

Shelly

SKU:ART-3800238070809-SHE

Regular price $27.99
Regular price Sale price $27.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Pack Quantity
View full details

ABOUT THIS PRODUCT

Shelly 1PM Mini Gen4 is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is an improved version of Shelly 1PM Mini Gen3 with with a more advanced processor and Zigbee connectivity.

Shelly 1PM Mini Gen4 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 1PM Mini Gen4 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
The device has multi-protocol wireless MCU which provide Zigbee and Bluetooth connectivity ensuring a secure connection.

This device is compatible with Matter.

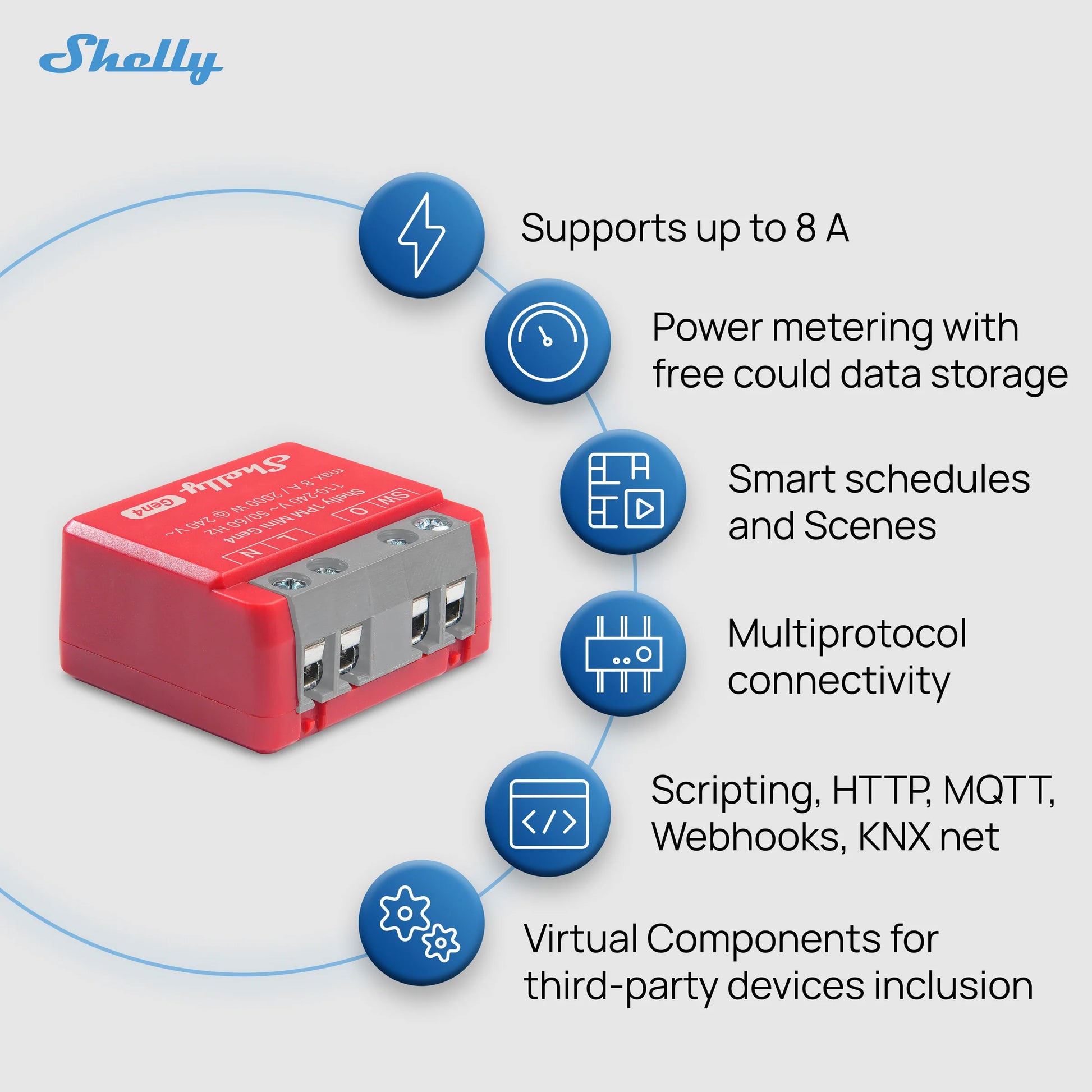

KEY FEATURES

  • Multiprotocol connectivity: Choose from Wi-Fi, Zigbee and Bluetooth
  • Matter-certified
  • Supports up to 8 A at 240 VAC​
  • Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.​
  • Perfect to retrofit behind existing switches and sockets
  • Supports schedules, scenes and local actions
  • Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

Technical Specification

Size (HxWxD)
29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch
Weight
18 ±1 g / 0.63 ±0.04 oz
Conductor cross section
0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Mounting
Wall box
Shell material
Plastic
Ambient working temperature
-20 °C to 40 °C / -5 °F to 105 °F
Power supply
110 - 240 V~
Relay
NO contact, 1-pole, µ contact

No Documentation available.

SKU # Part # Pack Quantity Price Quantity
SKU #: ART-3800238070809-SHE Pack Quantity: 1 $27.99
- +
SKU #: ART-3800238070816-SHE Pack Quantity: 2 $54.86
- +
