SERV+ Display

Wholesale - Artek

ART-0100276300-GAR

MPN: 010-02763-00

$599.99
$599.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Display Size
View full details

About This Product

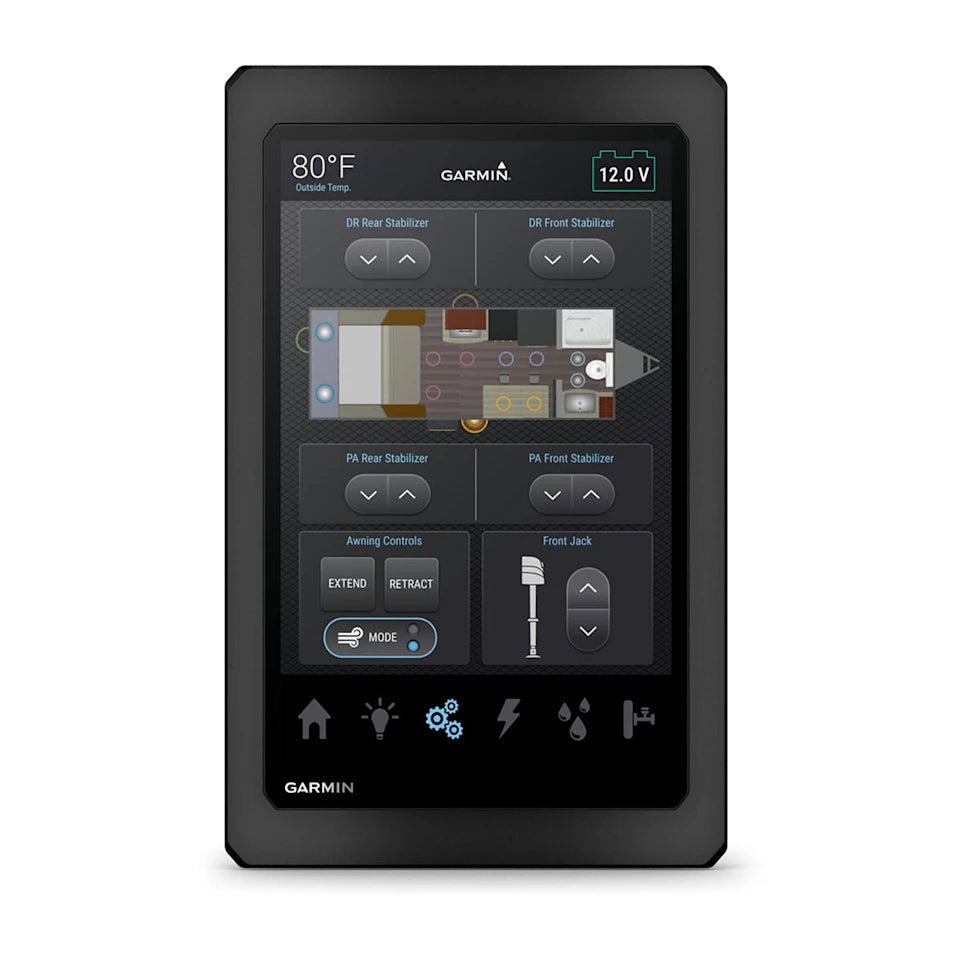

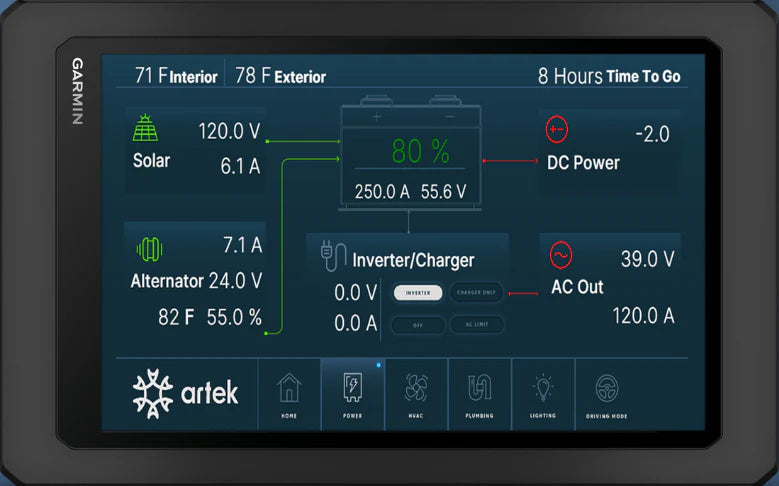

With the SERV+ digital switching system display, you can control and monitor your RV systems and entertainment from a sleek touchscreen for a smart RV experience.

This digital switching display features 5 input channels and 6 output channels to consolidate your controls in one place. However, combine SERV+ with EmpirBus systems, and the number of inputs and outputs are almost endless.

Control onboard music, lights, temperature settings and more by integrating with Garmin, Fusion and EmpirBus products.

The SERV+ touchscreen works with your RV’s setup and can be mounted in either portrait or landscape mode with minimal mounting depth.

In The Box

  • Garmin SERV+ (size dependent on selection)
  • 2-pin power cable
  • CAN termination connector
  • Trim bezel
  • microSD™ card
  • Mounting hardware and template
  • Documentation

In The Box

  • Garmin SERV+ (size dependent on selection)
  • 2-pin power cable
  • CAN termination connector
  • Trim bezel
  • microSD™ card
  • Mounting hardware and template
  • Documentation

Technical Specification

General
Display size
7” or 10"
Physical dimensions (WxHxD)
7" - 209.2 x 123.3 x 38.6 mm (8.24” x 4.85” x 1.52”) 10" - 281.2 x 176.4 x 38.7 mm (11.07” x 6.94” x 1.52”)
Weight
7" - 438 g (1.0 lbs) 10" - 720 g (1.6 lbs)
Display resolution
7" - WSVGA, 1024 x 600 10" - WXGA, 1280 x 800
Touchscreen
yes
Mounting options
portrait or landscape
Memory card
1 microSD® card slot; 2 TB max card size
Communication
Wi-Fi® connectivity, Ethernet, CAN-bus, RVC, LIN
Ambient temperature
-10° to 55°C (14° to 131°F)
Power Supply
Supply voltage
10 to 16 Vdc
Maximum current
7" - 30 A (.55 A with no output channel load) 10" - 30 A (.8 A with no output channel load)
Maximum power usage
480 W (8 W with no output channel load)
Input 8 Channels (Configurable analog/digital
5 configurable inputs, RVC+/-, LIN)
Digital
Input peak/average current (12 V)
170 mA/1 mA
Input weak signal low side/high side
1 mA/4 mA
Current drive 50mA
Analog
Input voltage range
0-16 V +/-1%*
Input resistance range
0-1500 ohm +/- 5%
Output 6 Channels
Output channels
6 High side PWM, 1-10A**

No Documentation available.

SKU # Part # Display Size Price Quantity
SKU #: ART-0100276300-GAR Display Size: 7" $599.99
- +
SKU #: ART-0100276400-GAR Display Size: 10" $799.99
- +
