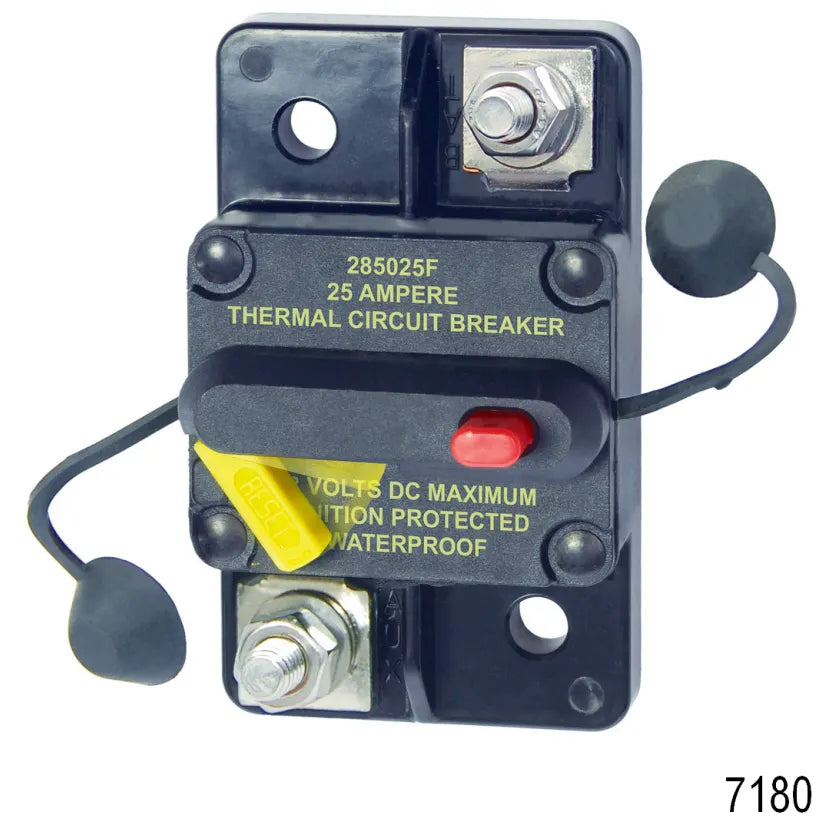

Series 285 Surface Mount Thermal Circuit Breaker

Blue Sea Systems

ART-7180-BSS

MPN: 7180

$65.33
$65.33
Sale Sold out
Tax included. Shipping calculated at checkout.
Amperage
View full details

About This Product

The Blue Sea Systems 285-Series Circuit Breakers provide medium-duty circuit protection for 25 - 150A loads when switching and circuit protection are both required. These are drop-in replacements for 185-Series circuit breakers.

Key Features

  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected.

Technical Specification

Circuit Breaker Class
Type III
Maximum Voltage
48V DC
Amperage
Select
Mounting
Surface Mount
Circuit Breaker Type
Thermally responsive bi-metal blade
Terminal Stud
M6 (accepts 1/4" ring terminal)
Weight
0.50 lbs (0.23 kg)

Dimension Drawings

Surface Mount 285

SKU # Part # Amperage Price Quantity
SKU #: ART-7180-BSS Amperage: 25A $65.33
- +
SKU #: ART-7181B-BSS Amperage: 30A $65.33
- +
SKU #: ART-7182B-BSS Amperage: 40A $65.33
- +
SKU #: ART-7183B-BSS Amperage: 50A $65.33
- +
SKU #: ART-7184B-BSS Amperage: 60A $65.33
- +
SKU #: ART-7185-BSS Amperage: 70A $65.33
- +
SKU #: ART-7186B-BSS Amperage: 80A $65.33
- +
SKU #: ART-28590S-BSS Amperage: 90A $65.33
- +

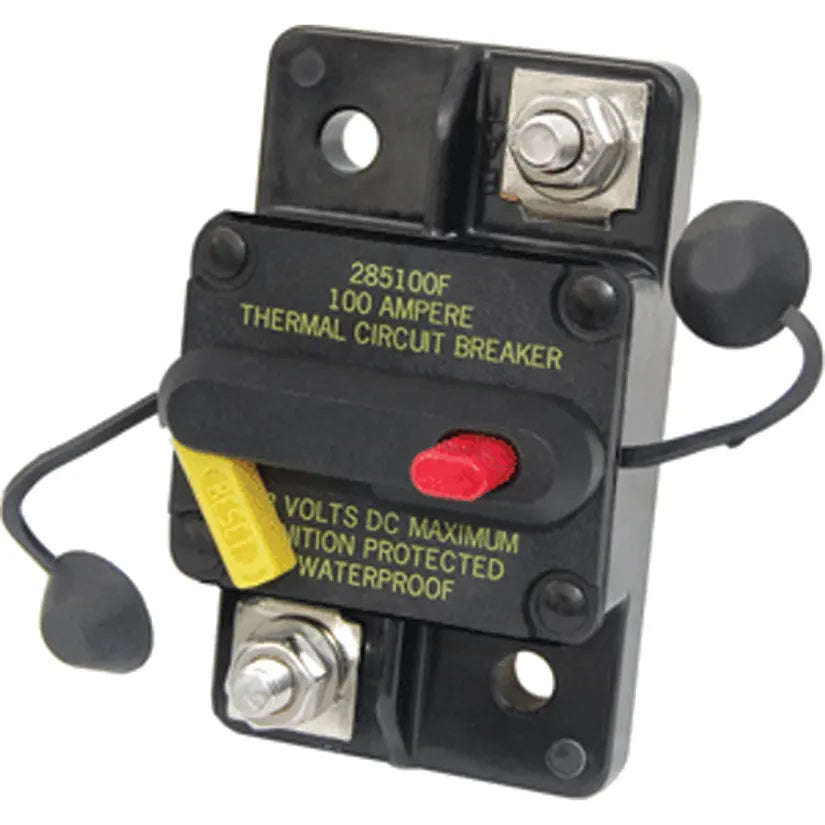

SKU #: ART-7187B-BSS Amperage: 100A $65.33
- +
SKU #: ART-7188B-BSS Amperage: 120A $65.33
- +
SKU #: ART-7189B-BSS Amperage: 150A $65.33
- +
