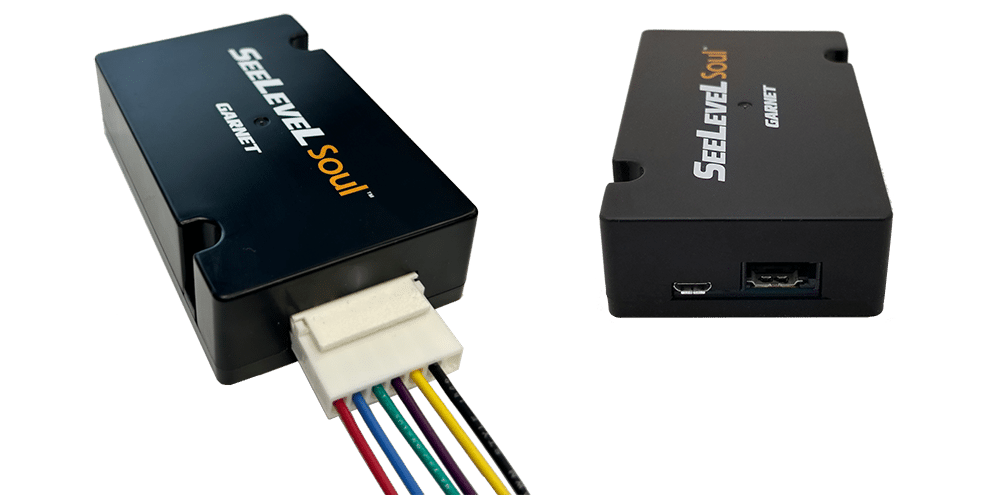

SeeLeveL Soul Data Link Module

SeeLevel

ART-708RVCH-SEE

$322.26
$322.26
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About This Product

The SeeLeveL Soul (708-RVC H) is a Data Link Module that collects tank level information from the SeeLeveL senders and transmits it to a multiplex system through the RV-C bus. With no visible display, it is designed to be concealed inside the RV so OEMs can avoid using up valuable wall or cabinet space.

Key Features

  • Includes:  (1) data link module, (1) pigtail
  • Senders:  Compatible with the 710-AR2, 710-ES3, AND 710-SS2 senders.  Senders sold separately.
  • Monitors:  Up to seven tanks (Fresh, Grey, Black, Fresh 2, Grey 2, Black 2, Grey 3), and  Battery voltage
  • LPG:  Connects to an existing LPG sensor
  • Other:  RV-C Interface multiplex compatible, Configures through the SeeLeveL Soul user interface

Technical Specification

Enclosure
Size
System Power
Module requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts. Current drain is less than 200mA.
Wiring
A single two-wire conductor required from the Module to the senders. All the senders are wired in parallel. 12 V power and ground required for Module. A separate two-wire conductor required from the Module to the LPG sender.
LPG
Module will work with an LPG sender with a maximum resistance of 50 ohms to 250 ohms. Module shows increasing level as resistance increases. System must be calibrated with the LPG tank full.
Compliance & Certifications
CAN ICES-003(B)/NMB-003(B)
