About this product

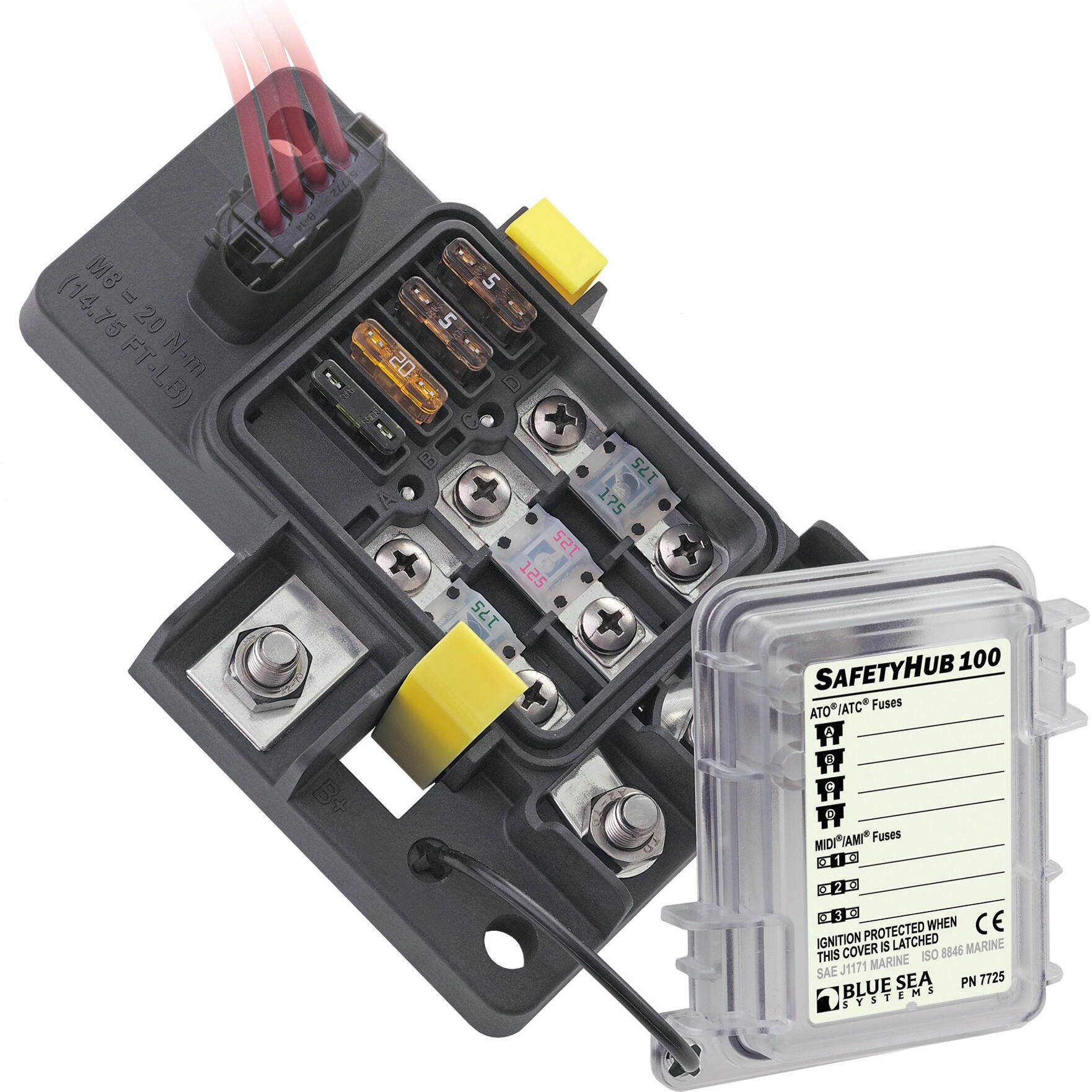

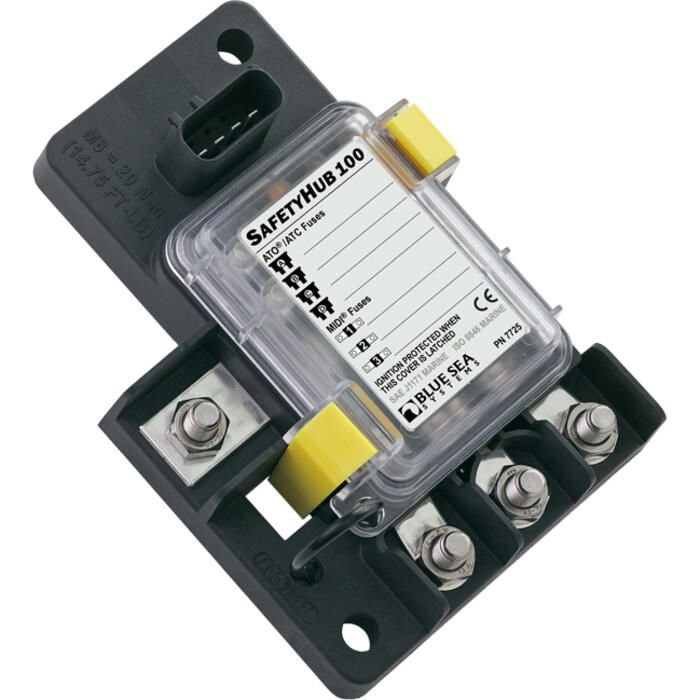

The Blue Sea Systems SafetyHub 100 Fuse Block 7725 simplifies marine electrical wiring by combining ignition-protected fusing with integrated connector plugs. Designed for gasoline-powered boats, it safely consolidates up to seven circuits while reducing loose wires and protecting fuses from harsh marine conditions.

Key Features

• Three 30A-200A MIDI/AMI fuses (not included, sold separately) ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
• Four 1A-20A ATO/ATC fuses (not included, sold separately) ideal for circuits including bilge pumps, alarms, and clock memory
• Sealed cover protects fuses from the harsh marine environment: IP66 rating-protected against powerful water jets
• Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
• Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats
