About this product

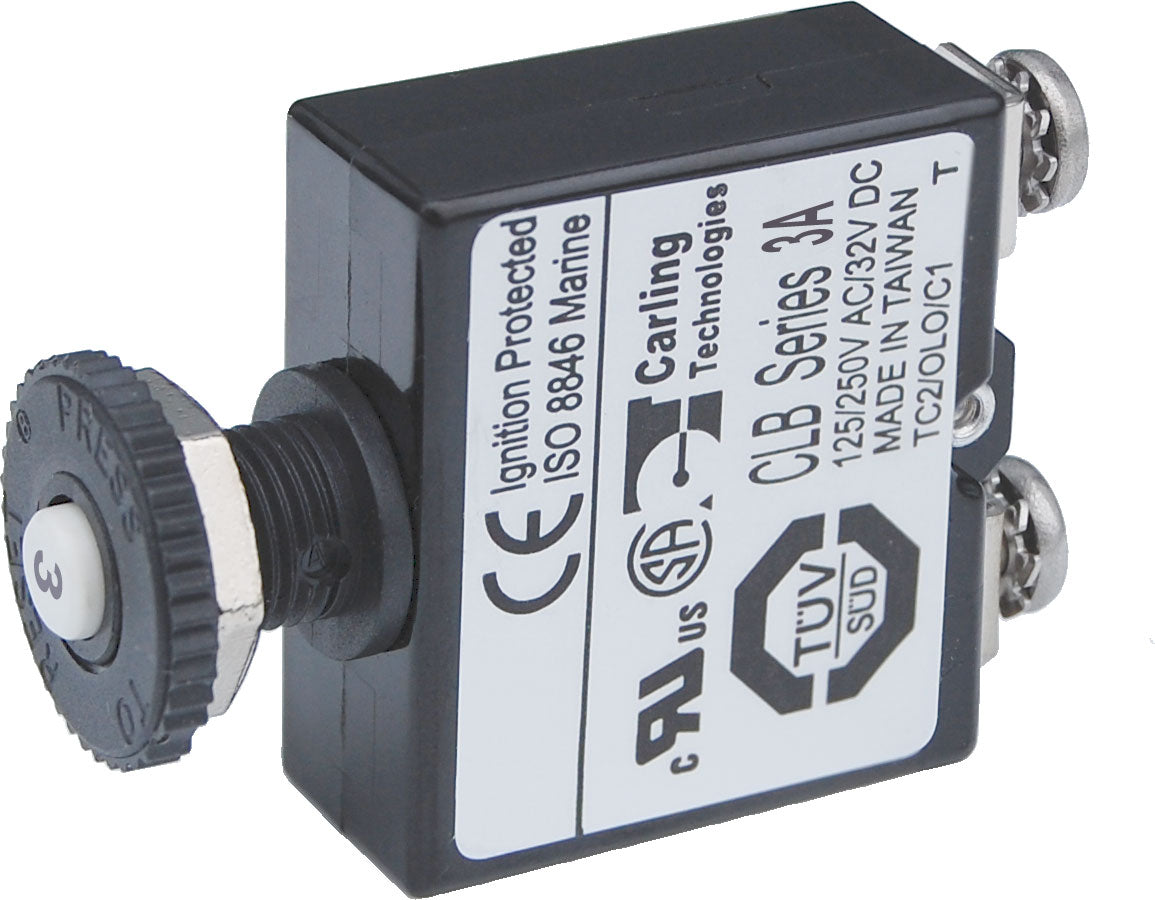

The Blue Sea Systems Push Button Reset Only Screw Terminal Circuit Breaker is a reset-only thermal branch circuit breaker for DC boat circuits where switching is handled elsewhere. It is used for branch circuit protection and can also be used for 24-hour circuit protection, with amperage options from 3A to 40A across the range.

This breaker is rated for a maximum of 32V DC and uses #8 screw terminals for secure wire connections behind a panel. The panel mount is 3/8-27 UNS, which suits compact electrical layouts where multiple protected circuits need to fit cleanly in a helm, console, battery area, or distribution panel.

The trip-free mechanism prevents the breaker from being held on during a fault current condition, while the push-to-reset button makes recovery straightforward after the fault has been corrected. It is ignition protected for installation aboard gasoline-powered boats and operates from -10° C to 60° C.

Key Features

• Reset-only thermal circuit breaker for branch circuits and 24-hour circuit protection where a separate switch is used or switching is not required.
• Amperage range covers 3A, 5A, 7A, 10A, 15A, 20A, 25A, 30A, and 40A circuit protection needs.
• 32V DC maximum voltage rating for common marine DC electrical systems.
• Trip-free operation prevents the breaker from being forced to stay on during a fault current condition.
• Push-button manual reset gives a clear, simple way to reset the circuit after troubleshooting.
• #8 screw terminals support secure panel wiring and help keep connections firm in areas exposed to vibration.
• Panel mount with 3/8-27 UNS thread supports compact installations in control panels and distribution areas.
• Interrupt capacity is 3000A at 14.7V DC and 2500A at 28V DC.
• Ignition protected for use aboard gasoline-powered boats when installed as part of a proper marine electrical system.
• Optional push button waterproof boots are available for added protection in wet locations.
