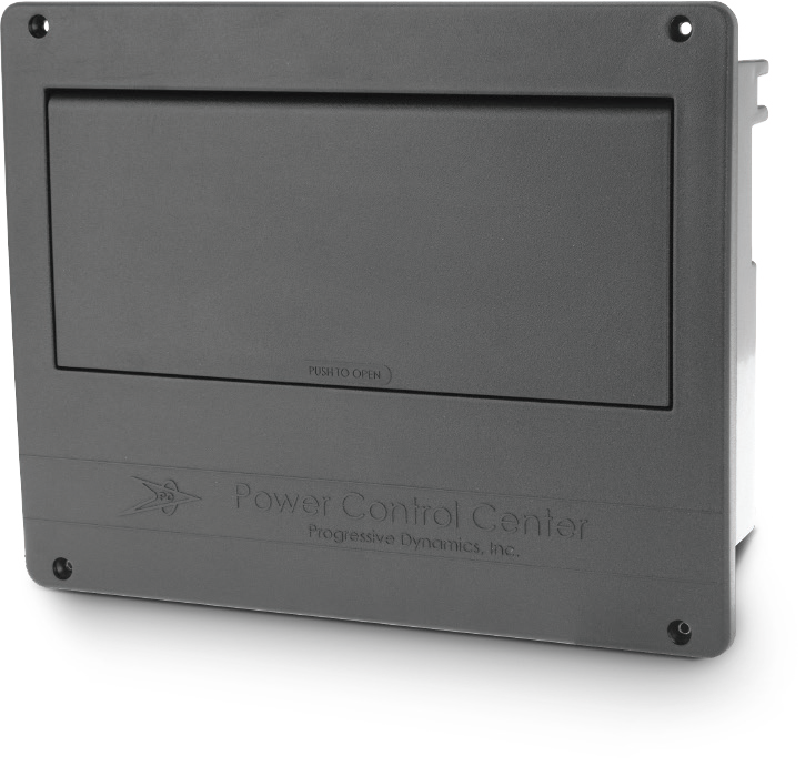

Progressive Dynamics 5500 Series AC Distribution Panel

Progressive Dynamics 5500 Series AC Distribution Panel

Progressive Dynamics

ART-PD55K000-PD

Got an interesting project? We can source specialty items at your request.
Special Order
Sale Sold out
Tax included. Shipping calculated at checkout.
Amperage
Type
View full details

Description

Features

  • A split 50/30 panel accepts — LEFT SIDE: dual 50 Amp main and up to 10 branch circuits — RIGHT SIDE: 30 Amp main and up to 4 branch circuits.
  • A split 50/50 panel accepts — LEFT SIDE: dual 50 Amp main and up to 8 branch circuits — RIGHT SIDE: dual 50 Amp main and up to 4 branch circuits.
  • A split 30/30 panel accepts — LEFT SIDE: 30 Amp main and up to 8 branch circuits — RIGHT SIDE: 30 Amp main and up to 8 branch circuits.
  • Special order configurations available on request.
  • Compatible with 6000 Series DC Power Distribution Panel.

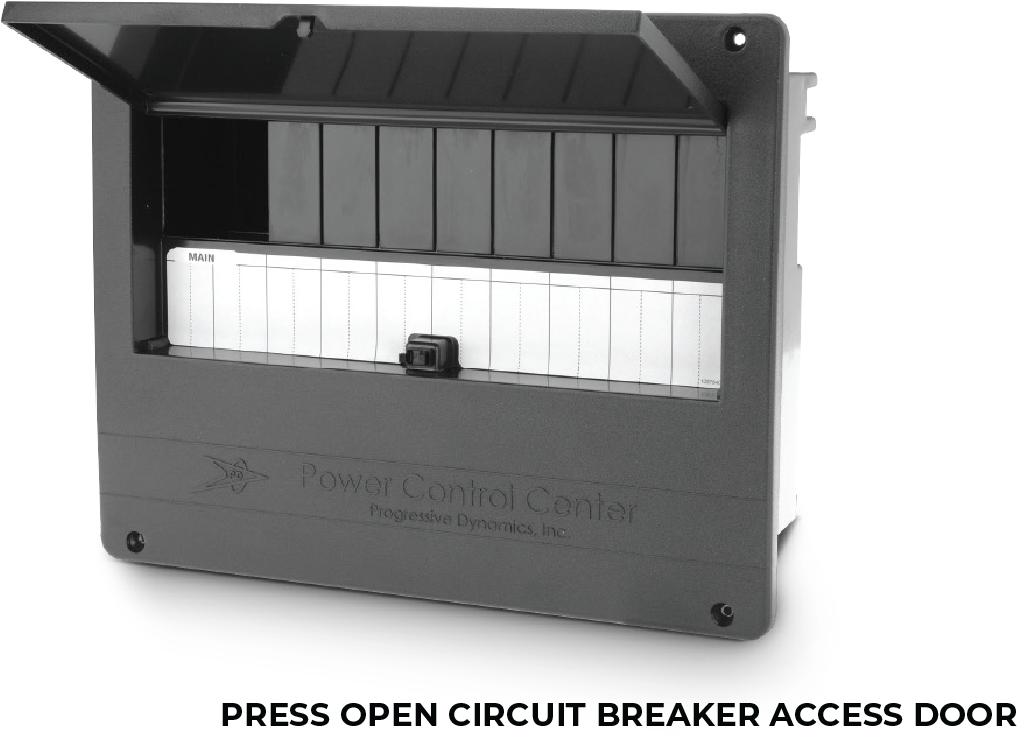

  • Press open door for easy access to circuit breakers.
  • AC Panel features 12 built-in push and lock strain relief connectors.
  • Attractive lightweight panel design made from black impact-resistant high temperature polymers.
  • AC Panel designed with large front
    wiring compartment.

Technical Specifications

Selected SKU # Part # Amperage Type Price Quantity
SKU #: ART-PD55K000-PD Amperage : 50Amp 240VAC Type : w/ 15 position neutral bar $130.00
- +
SKU #: ART-PD55K100-PD Amperage : 50Amp 240VAC Type : w/ 15 position neutral bar AND 15Amp outlet $130.00
- +
SKU #: ART-PD55K001-PD Amperage : 30Amp 120VAC Type : w/ 15 position neutral bar $130.00
- +
SKU #: ART-PD55K101-PD Amperage : 30Amp 120VAC Type : w/ 15 position neutral bar AND 15Amp outlet $130.00
- +
SKU #: ART-PD55K003-PD Amperage : (30Amp 120VAC / 30Amp 120VAC Type : w/ two 7 position neutral bars $130.00
- +
