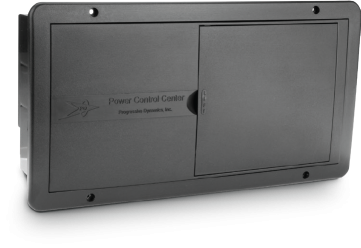

Progressive Dynamics 5000 Series AC+DC Distribution Panel

Progressive Dynamics 5000 Series AC+DC Distribution Panel

Progressive Dynamics

ART-PD50K3Q2GP-PD

Panels include:

  • 30 amp quick Quick Connects
  • 2 DC inputs
  • DC ground block

Got an interesting project? We can source specialty items at your request.
Special Order
Sale Sold out
Tax included. Shipping calculated at checkout.
AC Plug on Back
View full details

Description

Features

  • Provisions for 30 Amp AC main and up to 9 AC branch circuits.

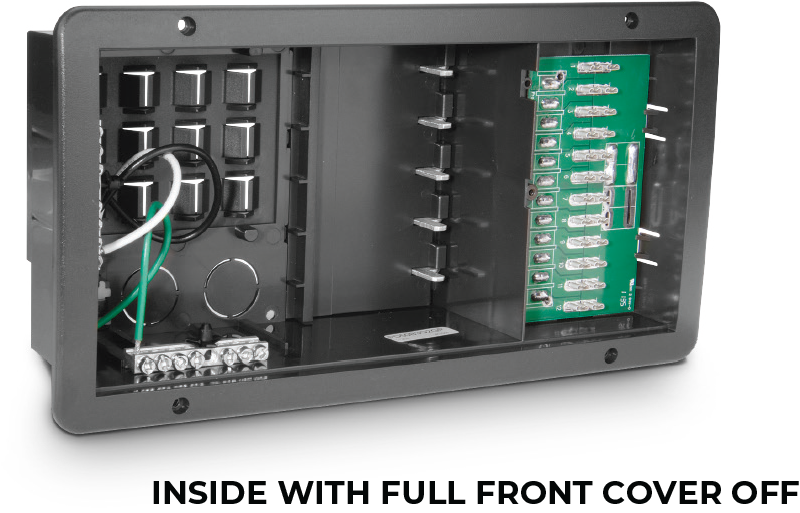

  • Generous wiring space for easy installation —
    also reduces costly wiring errors.
  • Built-in wire strain relief for each branch circuit. Saves over 50% on installation costs.
  • Space for up to 12 fused DC branch circuits for 12 Volt lighting and DC appliance circuits.
  • Accepts rated fuses up to 30 Amp — eliminates auxiliary fuse panels for slide-outs and leveling jacks saving you even more money.
  • Attractive lightweight panel design made from black impact-resistant high temperature polymers.

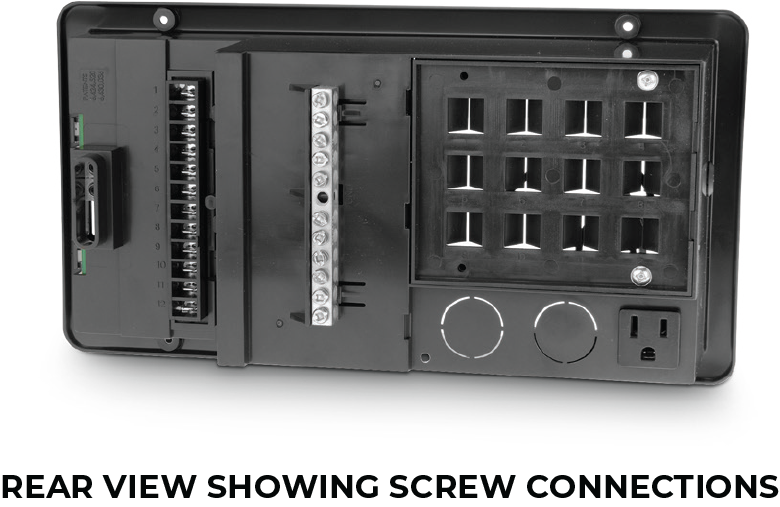

  • All 12 VDC branch circuit connections located on outside rear of panel — reducing installation time and costly errors.
  • High current 12 VDC input power terminal strip provides easy connection point for battery and converter.

Technical Specifications

Measurements and Weight*:

Dimensions:13.4”W x 7.1”H x 4.0”D
Cut-out size:12.25”W x 5.875”H
Weight:1.45 lbs.

Selected SKU # Part # AC Plug on Back Price Quantity
SKU #: ART-PD50K3Q2GP-PD AC Plug on Back: AC plug $150.00
- +
SKU #: ART-PD50K3Q2GN-PD AC Plug on Back: No plug $148.00
- +
