MRBF Terminal Fuse Block

MRBF Terminal Fuse Block

Blue Sea Systems

ART-5191B-BLU

$34.40
$34.40
Sale Sold out
Tax included. Shipping calculated at checkout.
Number of Terminals
View full details

Description

  • Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
  • Provides high current protection in tight space constraints
  • Ignition protected when used with Blue Sea Systems' MRBF Terminal Fuse
  • Isolated stud design uses standard M8 hardware and permits stacking of terminals
  • Insulating cap prevents accidental shorts
  • Accepts 5∕16" ring terminals
  • Mounts on 3/8” terminal studs
  • Fuse sold separately

Technical Specifications

  • Ignition Protected: No
  • Maximum Amperage: 300A
  • Maximum Voltage: 58V DC
  • Terminal Stud: M8 (5/16")
  • Maximum Torque: 75 in-lb (8.47 Nm)
  • Weight: 0.30lb (0.14 kg)
Selected SKU # Part # Number of Terminals Price Quantity

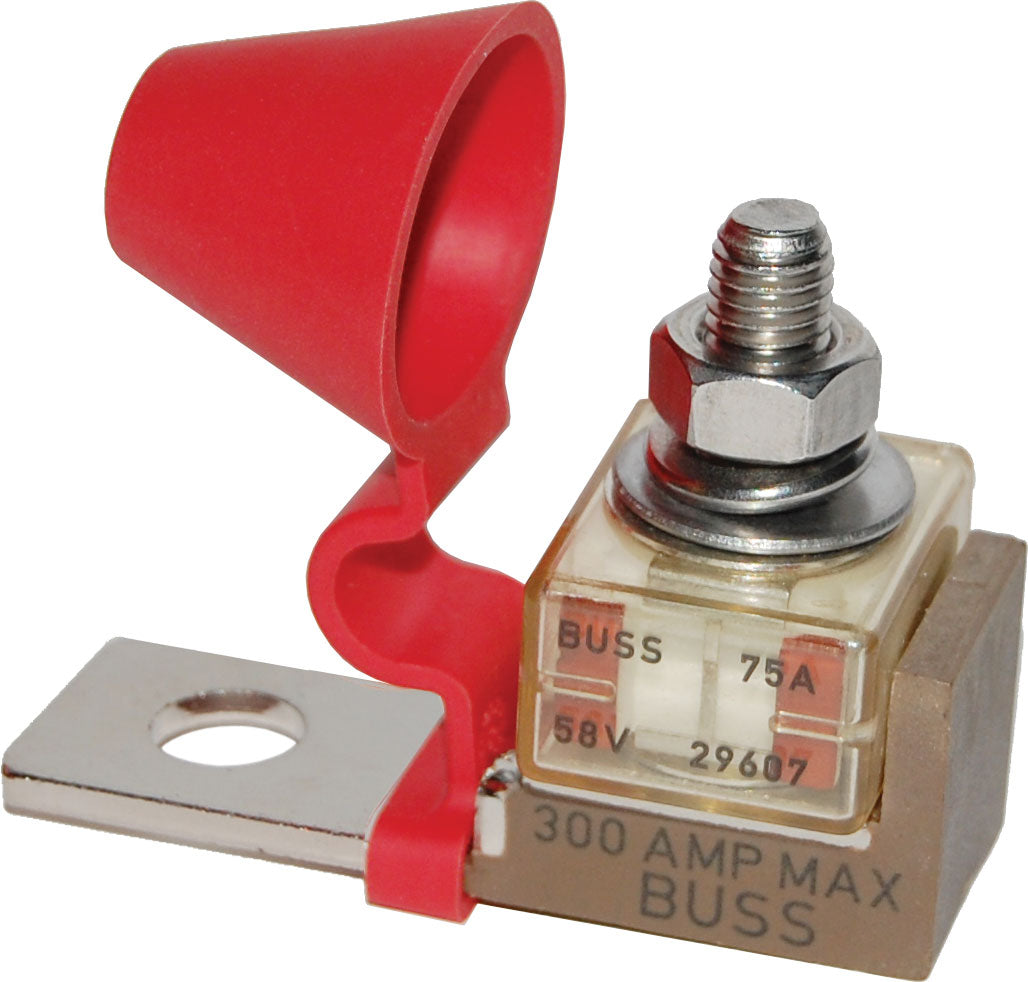

SKU #: ART-5191B-BLU Number of Terminals: One $34.40
- +

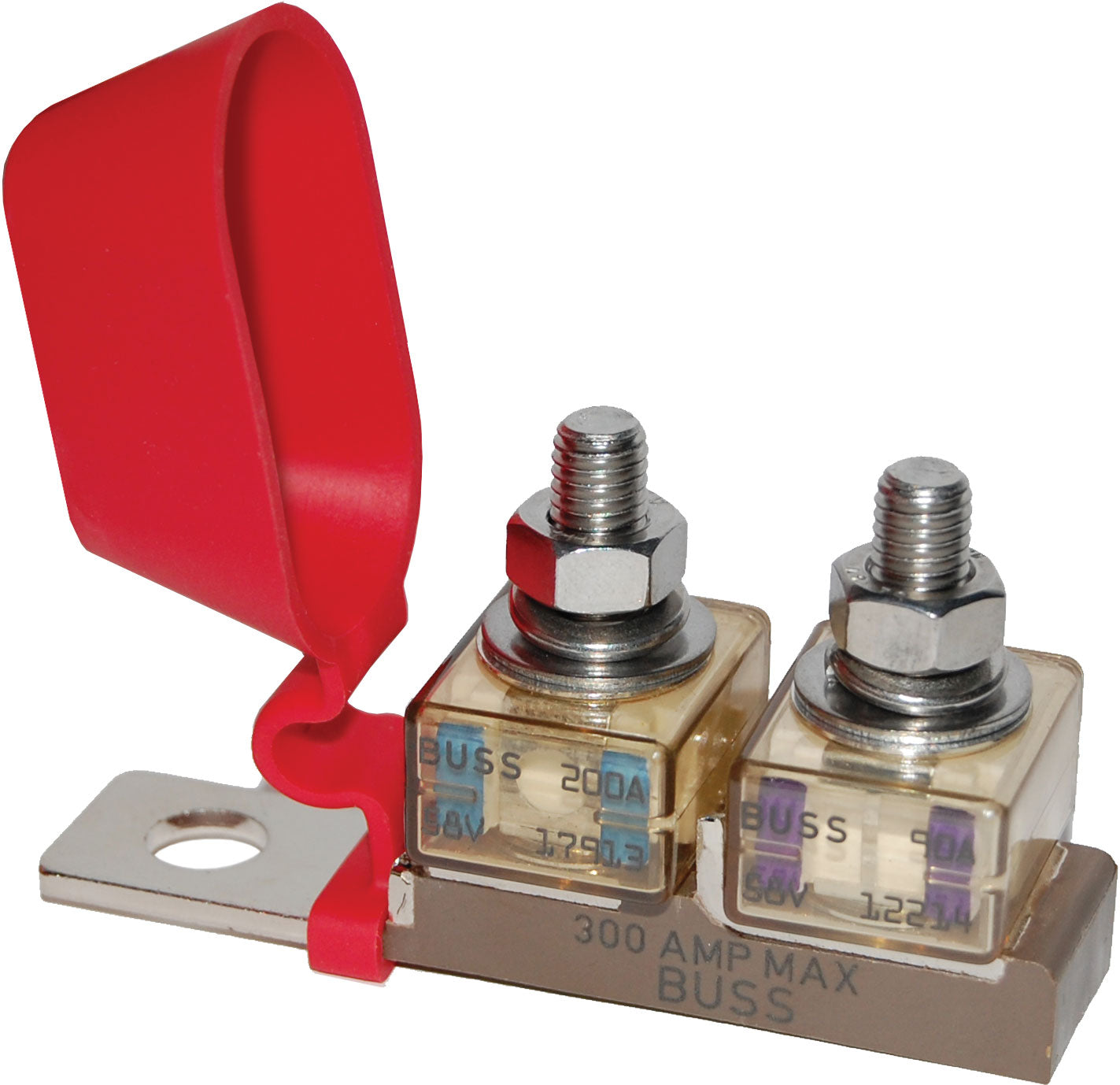

SKU #: ART-2151B-BLU Number of Terminals: Two $45.93
- +
