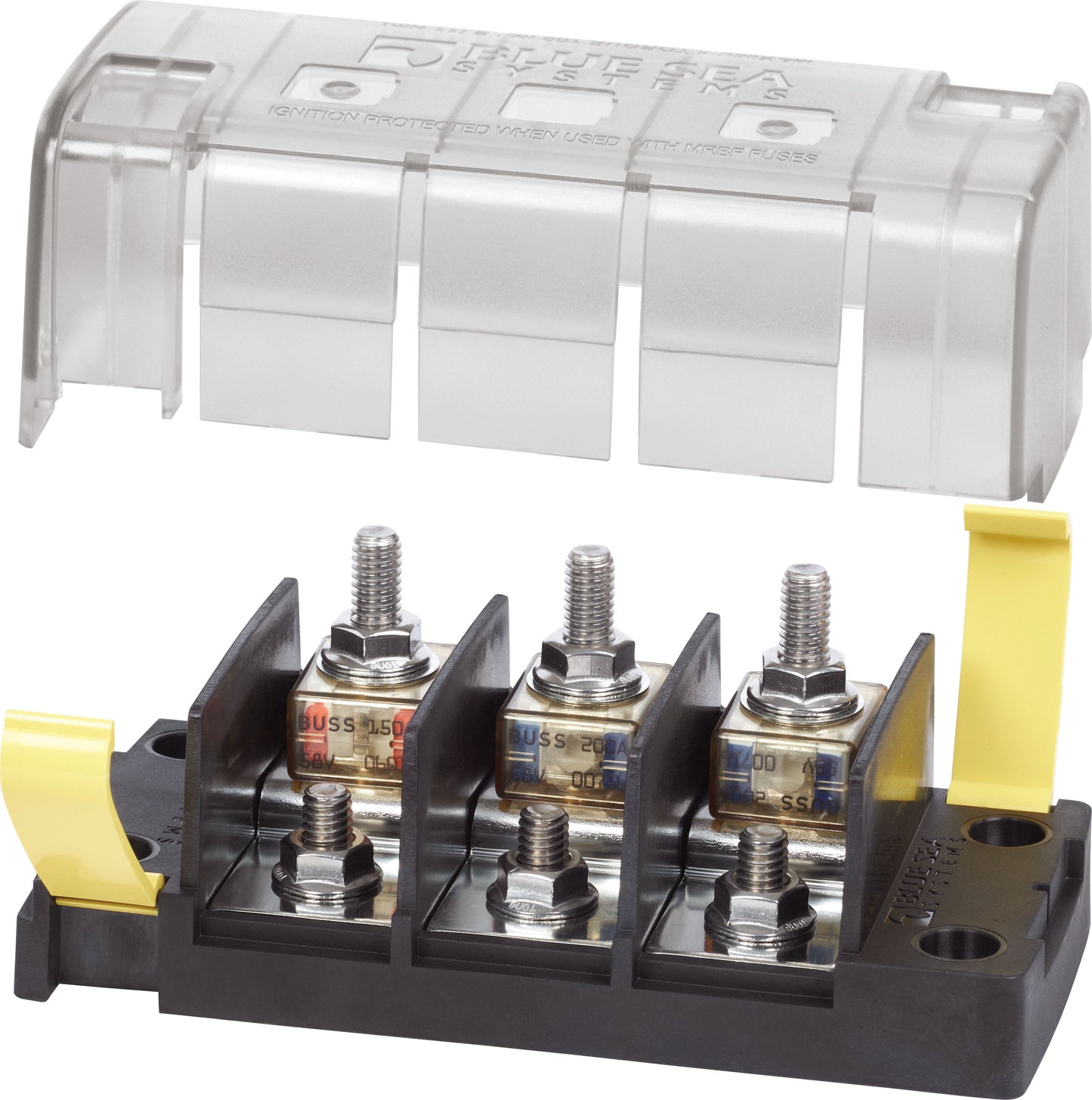

MRBF 3-Circuit Terminal Fuse Block

Blue Sea Systems

ART-5194B-BSS

MPN: 5194

$65.90
$65.90
Sale Sold out
Tax included. Shipping calculated at checkout.
Circuits
Source
View full details

About this product

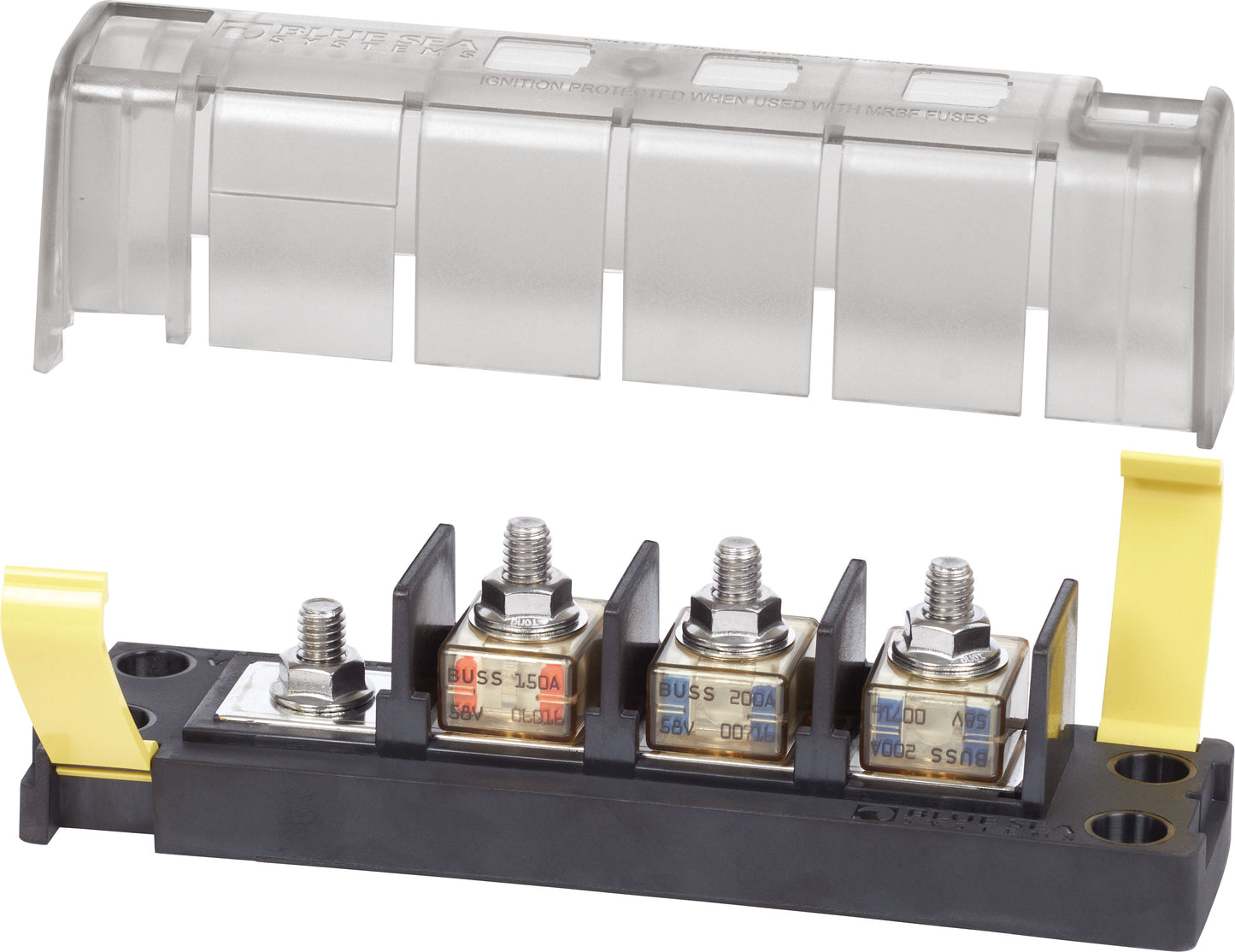

The Blue Sea Systems MRBF Surface Mount Fuse Block 5196 provides clean, high-amperage circuit protection in a compact, marine-ready design. Supporting three MRBF fuses, it's ideal for multi-output battery chargers and demanding DC systems. An insulating cover, stainless hardware, and flexible wiring options ensure safe, organized installations.

Key Features

  • Ideal for 3 output battery chargers
  • Clip-on insulating cover satisfies ABYC/USCG insulation requirements
  • Versatile wiring options allow all wires to come out a single side
  • Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification
  • One-piece stainless flange nuts ensure safe and secure connections
  • Ignition protected

Technical Specification

Maximum amperage
300A per block 240A per circuit
Maximum voltage
58V DC
Mounting surface mount
M5 (#10)
Maximum torque
100 in-lb (11.3 Nm)
Terminal stud size
M8 (5/16"-18)

No Documentation available.

SKU # Part # Circuits Source Price Quantity
SKU #: ART-5194B-BSS Circuits: 3 Source: Independent $65.90
- +
SKU #: ART-5196B-BSS Circuits: 3 Source: Common $55.78
- +
