MRBF Terminal Fuse

Blue Sea Systems

ART-5175B-BSS

MPN: 5175

$18.72
$18.72
Sale Sold out
Tax included. Shipping calculated at checkout.
Amperage
View full details

About this product

This Terminal Fuse 5175 mounts on 3/8" (M10) battery block, battery switch or busbar terminals. Appropriate for DC Main Circuits, Inverter, Charge Controller, Water Pump, Windlass, or Bow Thruster circuit protection It provides high current protection in tight spaces. Weatherproof .

Insulating nut and cap. M8 (5/16") terminal stud. Compact, Terminal Fuses are ignition protected and meet ABYC requirements for DC Main circuit protection on large battery banks. Clear window for visual indication of blown fuse and color-coded for each amperage.


Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal

key features

  • High interrupt rating satisfies ABYC requirements for DC main circuit protection on large battery banks
  • Clear window provides visual indication of blown fuse condition
  • Color-coded for easy amperage identification
  • Ignition protected safe for installation aboard gasoline powered boats

Technical Specification

Interrupting Capacity
10,000A @ 14V DC 5,000A @ 32V DC 2,000A @ 58V DC
Maximum Operating Voltage
58V DC
Amperage Trip Reference
30 - 300A

No Documentation available.

SKU # Part # Amperage Price Quantity
SKU #: ART-5175B-BSS Amperage: 30A $18.72
- +
SKU #: ART-5176B-BSS Amperage: 40A $18.72
- +

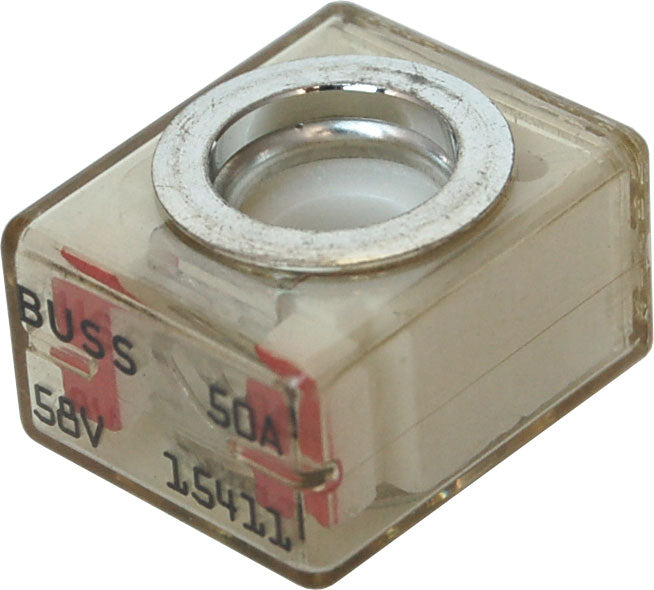

SKU #: ART-5177B-BSS Amperage: 50A $18.72
- +

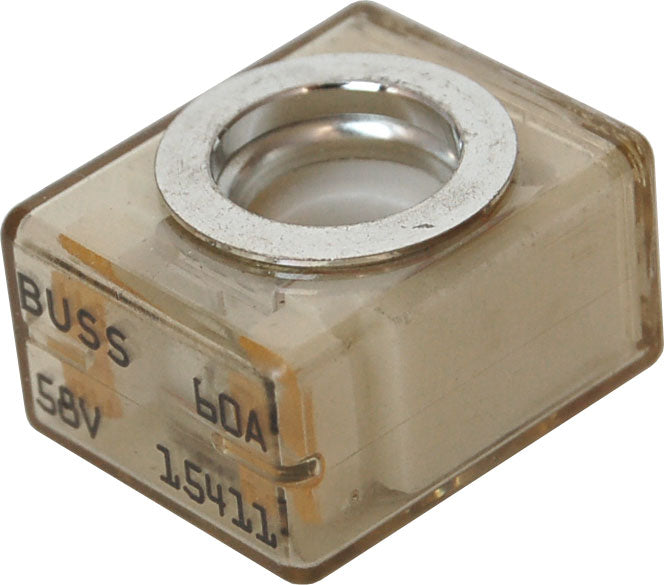

SKU #: ART-5178B-BSS Amperage: 60A $18.72
- +
SKU #: ART-5180B-BSS Amperage: 75A $18.72
- +

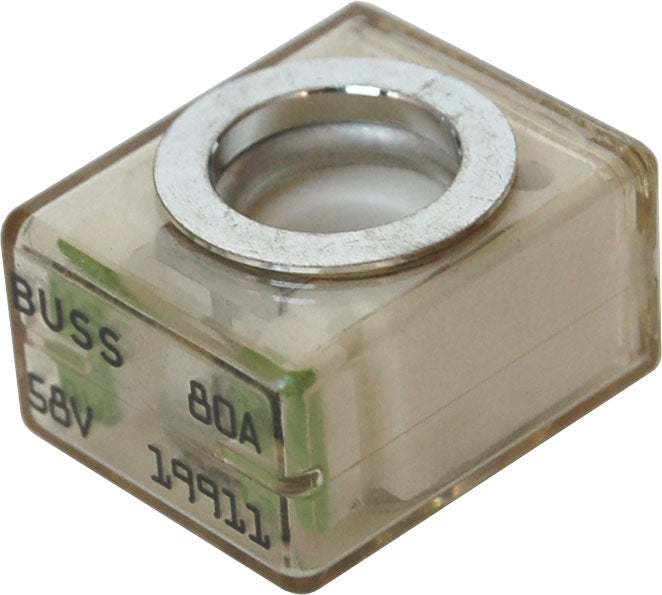

SKU #: ART-5181B-BSS Amperage: 80A $18.72
- +

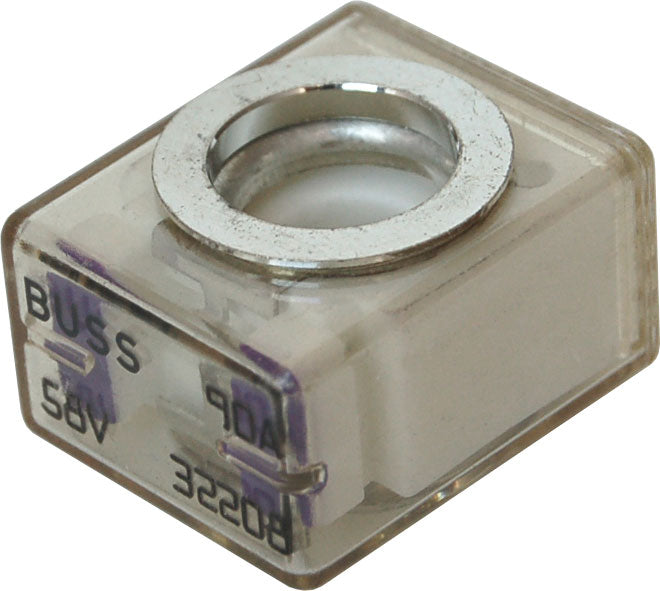

SKU #: ART-5182B-BSS Amperage: 90A $18.72
- +
SKU #: ART-5183B-BSS Amperage: 100A $18.72
- +

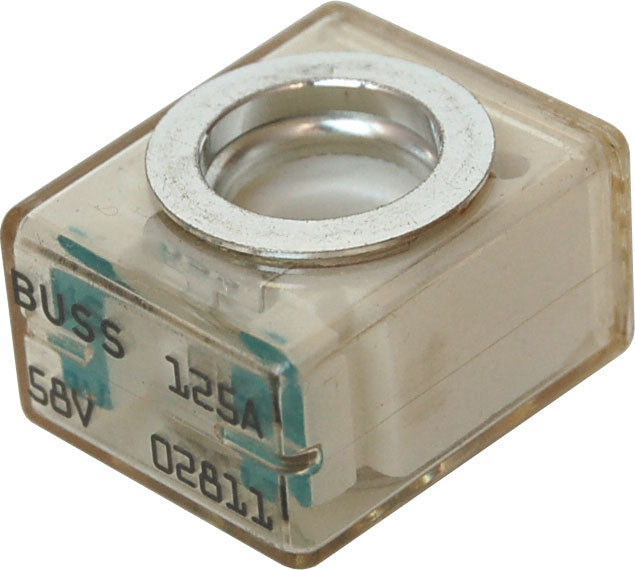

SKU #: ART-5184B-BSS Amperage: 125A $18.72
- +
SKU #: ART-5185B-BSS Amperage: 150A $18.72
- +

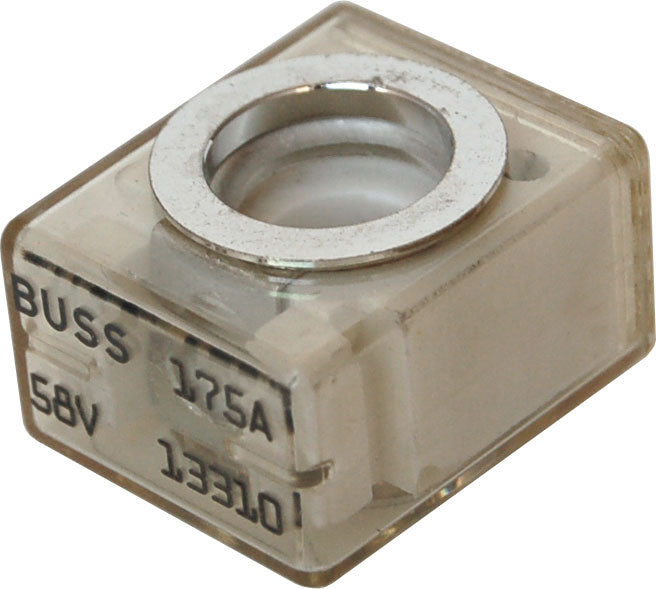

SKU #: ART-5186B-BSS Amperage: 175A $18.72
- +
SKU #: ART-5187B-BSS Amperage: 200A $18.72
- +

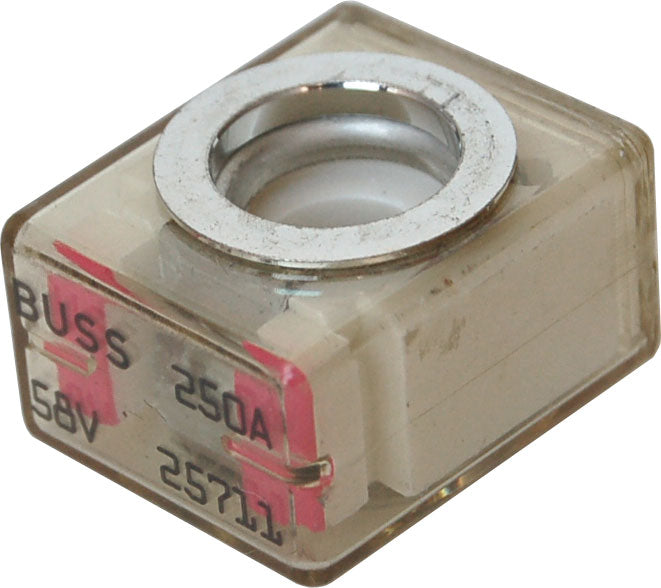

SKU #: ART-5189B-BSS Amperage: 250A $18.72
- +

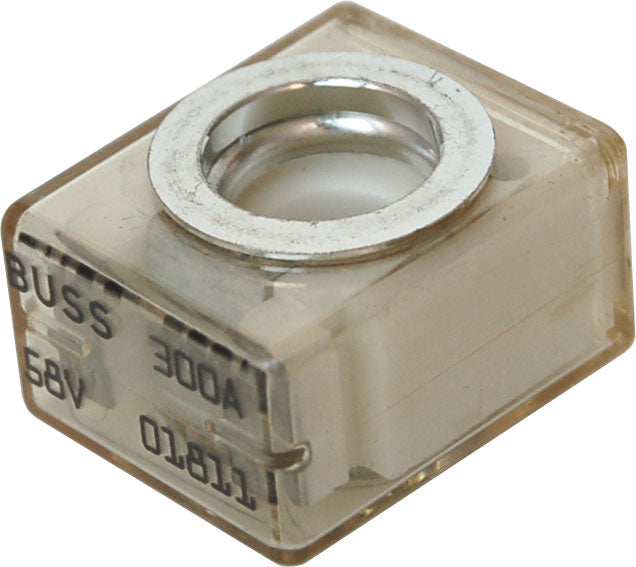

SKU #: ART-5190B-BSS Amperage: 300A $18.72
- +
