MINI BLADE FUSE - 58V

Littlefuse

ART-0997003WXN-LIT

$1.50
$1.50
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
View full details

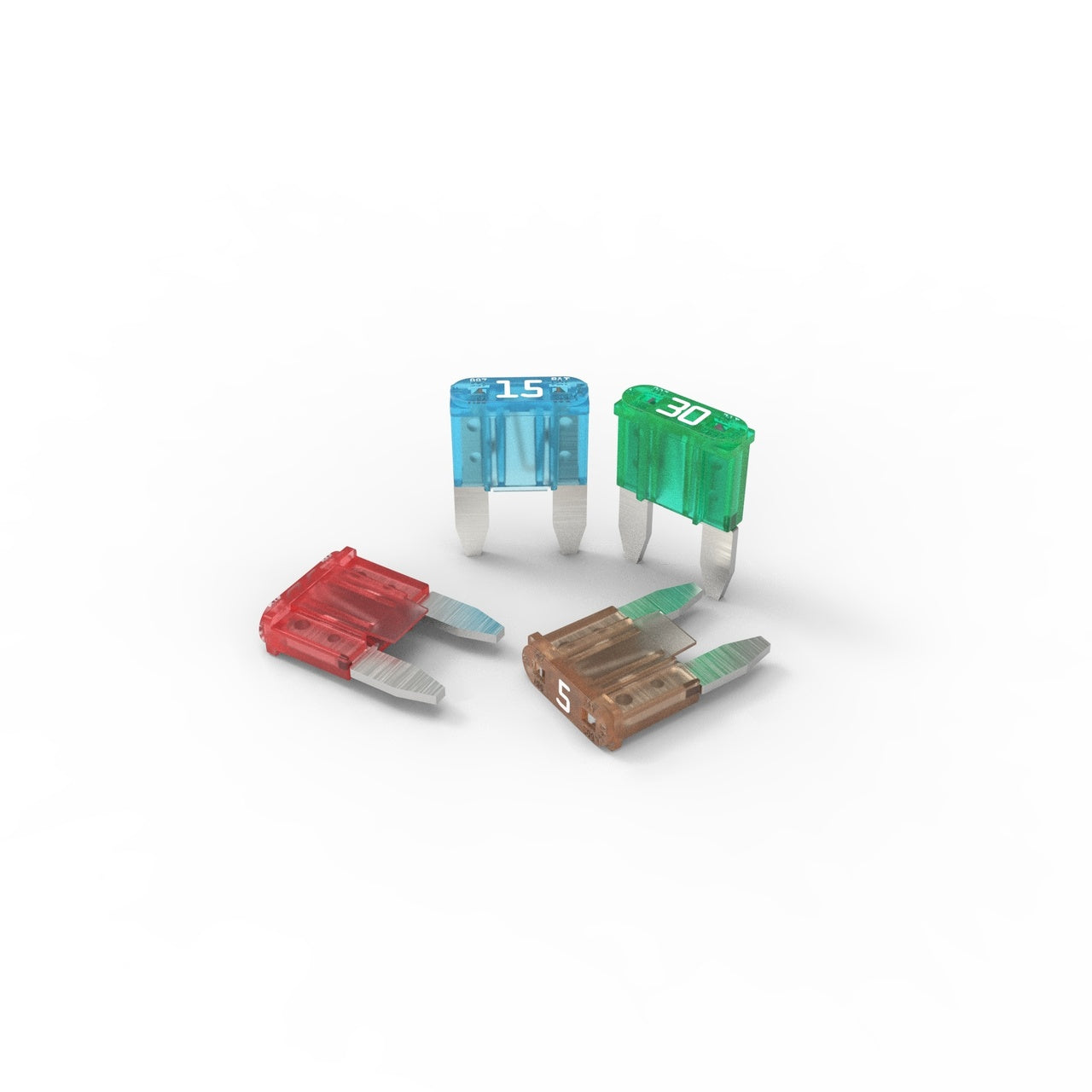

MINI® 58V blade fuses deliver space and weight savings while ensuring reliable circuit protection.

Features

  • Fast-acting
  • Available with ratings of 2 A to 30 A
  • Interrupting rating of 1 kA at 58 V dc
  • Silver-plated zinc alloy terminals
  • Operate at up to 125 ℃ with terminals reaching 150 ℃ at contact point
  • PA66 housing with UL flammability rating of V-2
  • Net weight 0.57 g ±5 % per fuse
  • Comply with SAE J2077, SAE 2576, and ISO 8820-3
  • Recognized as UL 248 Special Purpose Fuses
  • RoHS compliant and certified lead-free

Benefits

  • Color coding indicates ampere rating
  • See-through housings make it easier to see when fuses blow
  • High-contrast ampere rating stamps aid identification
  • Same blade size and pitch as other MINI fuses
  • Rejection feature makes it impossible to replace a blown MINI 58V fuse with one that has a lower voltage rating
  • Checkpoints on top make it possible to measure resistance without removing the fuse

Applications

  • Cars
  • Trucks
  • Offroad vehicles
  • Watercraft as approved by Littelfuse

No Documentation available.

SKU # Part # Size Price Quantity
SKU #: ART-0997002WXN-LIT Size: 2A $1.50
- +

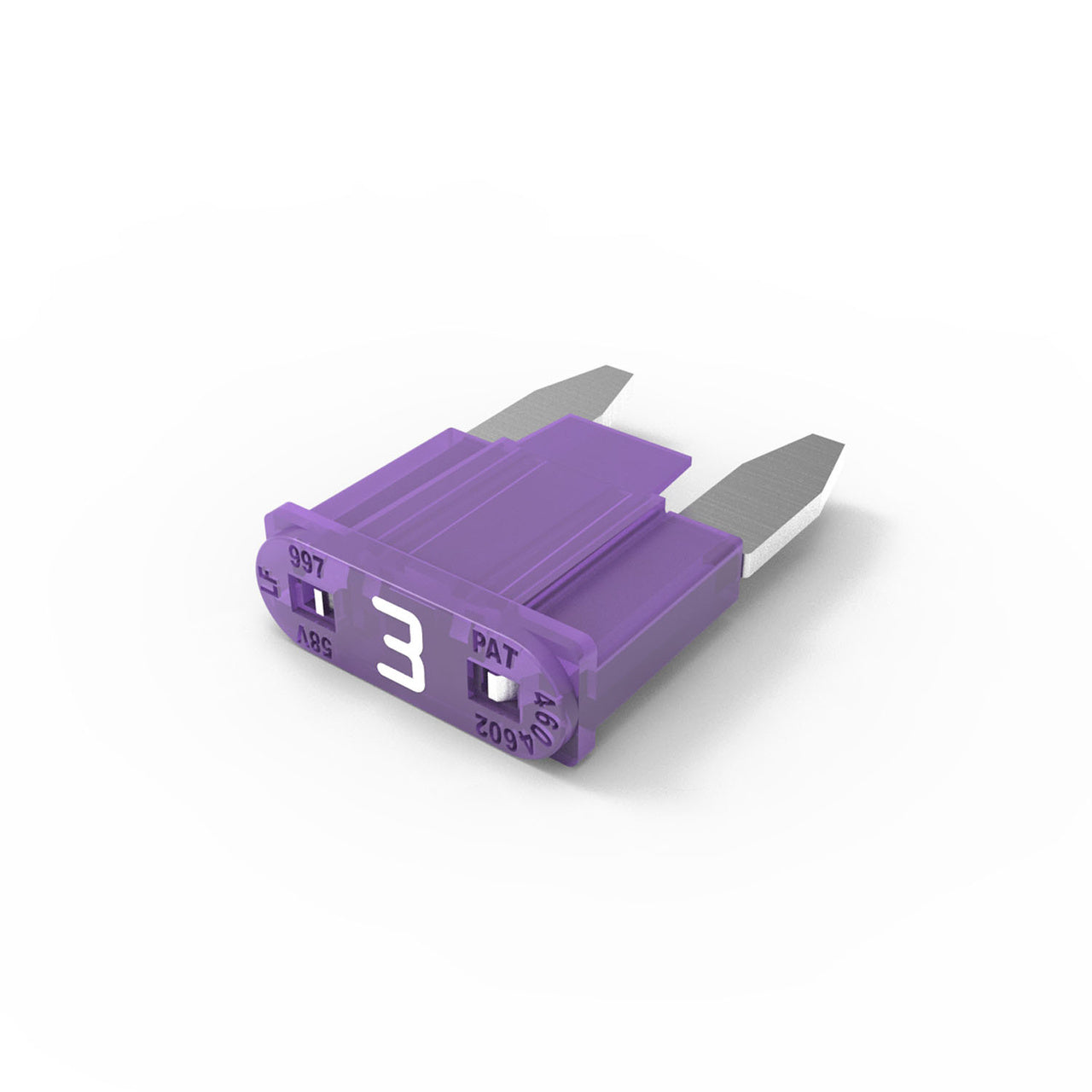

SKU #: ART-0997003WXN-LIT Size: 3A $1.50
- +

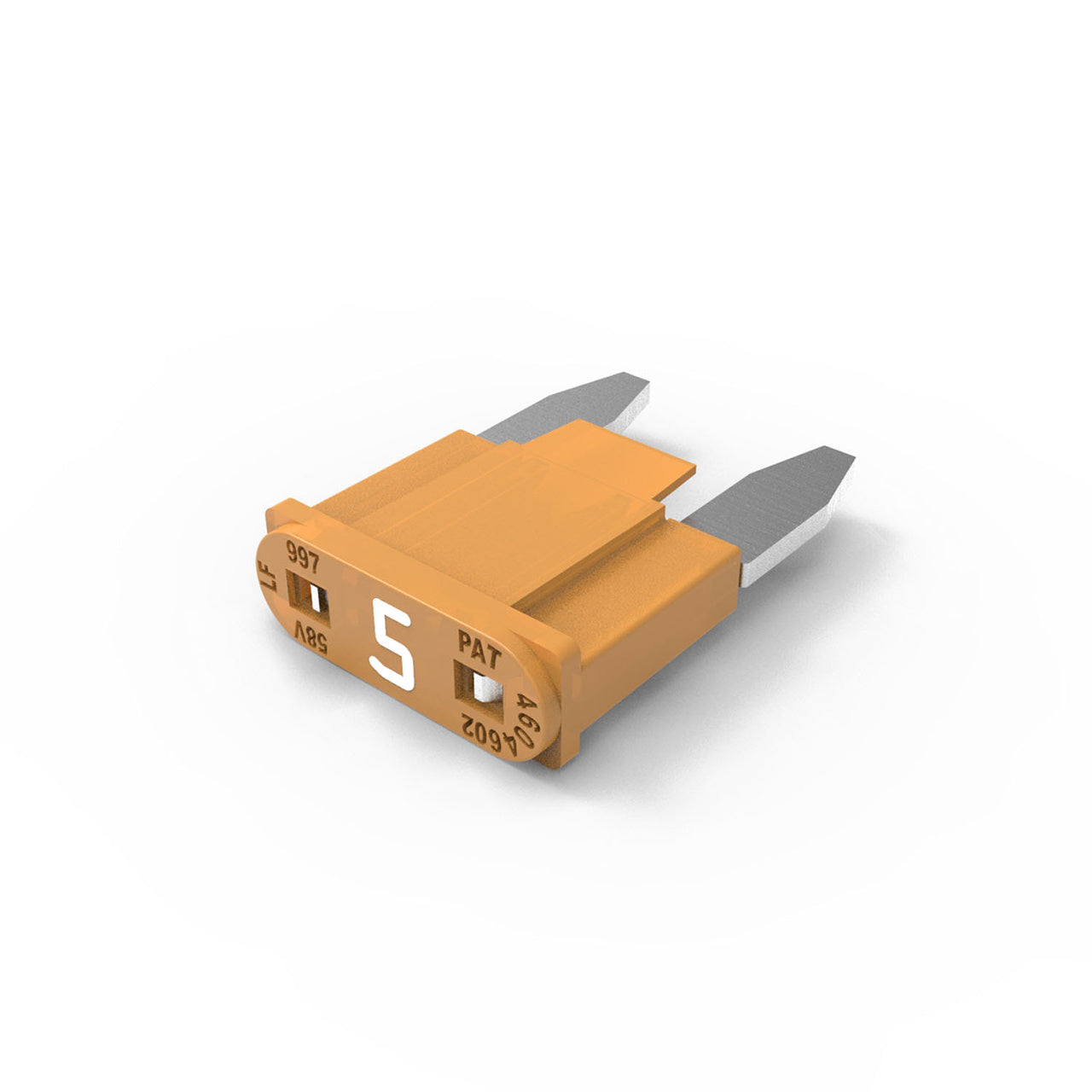

SKU #: ART-0997005WXN-LIT Size: 5A $1.50
- +

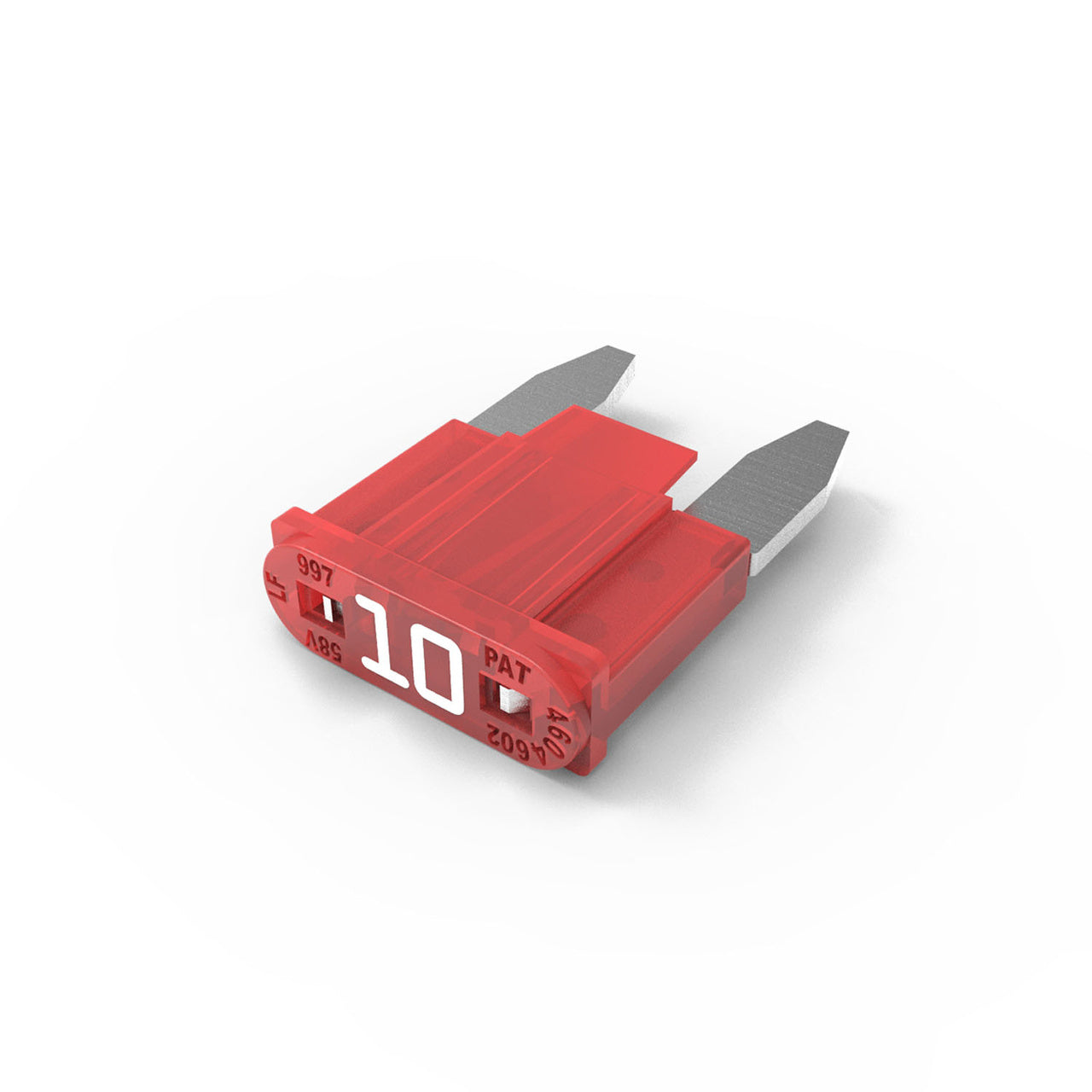

SKU #: ART-09970010WXN-LIT Size: 10A $1.50
- +

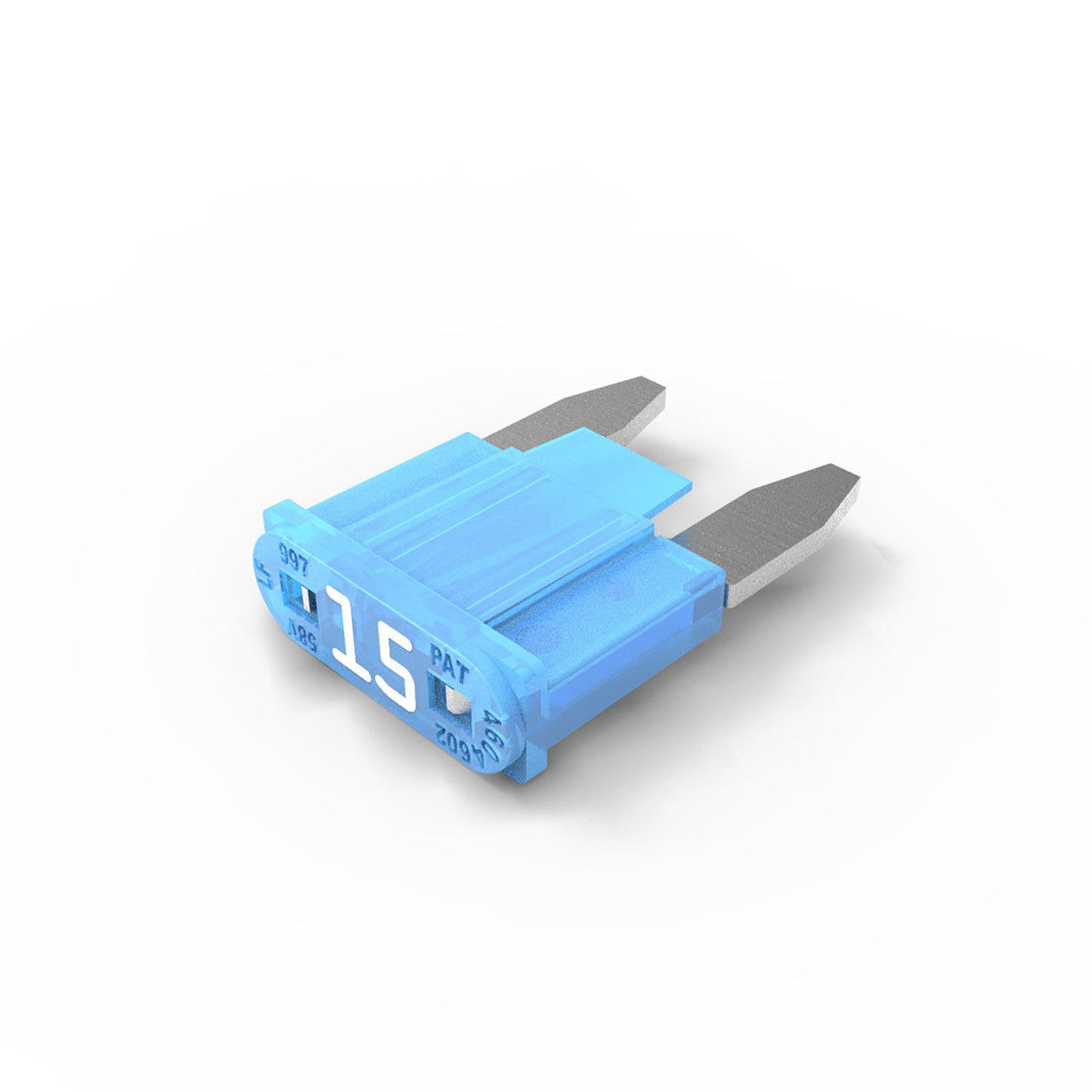

SKU #: ART-0997015WXN-LIT Size: 15A $1.50
- +

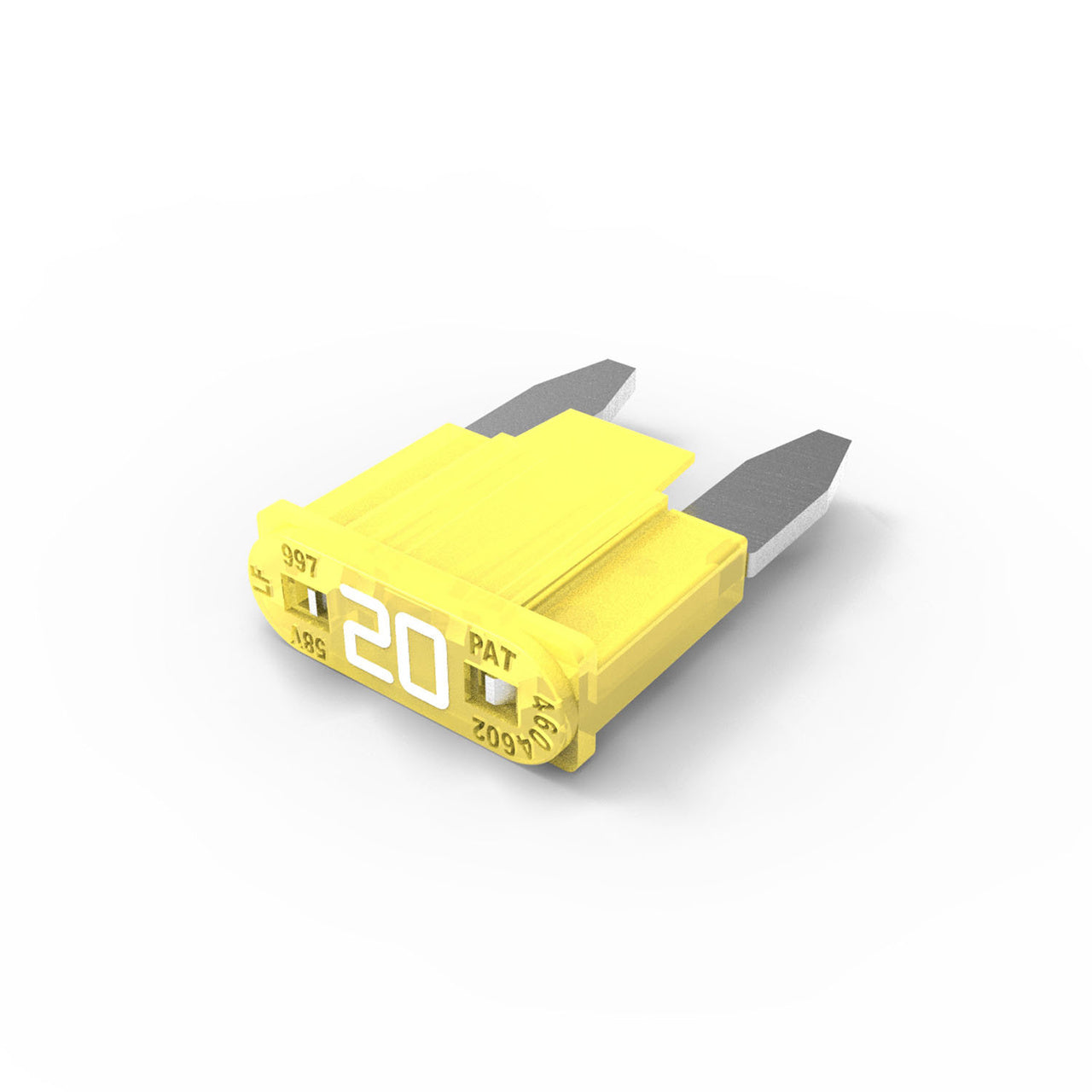

SKU #: ART-09970020WXN-LIT Size: 20A $1.50
- +

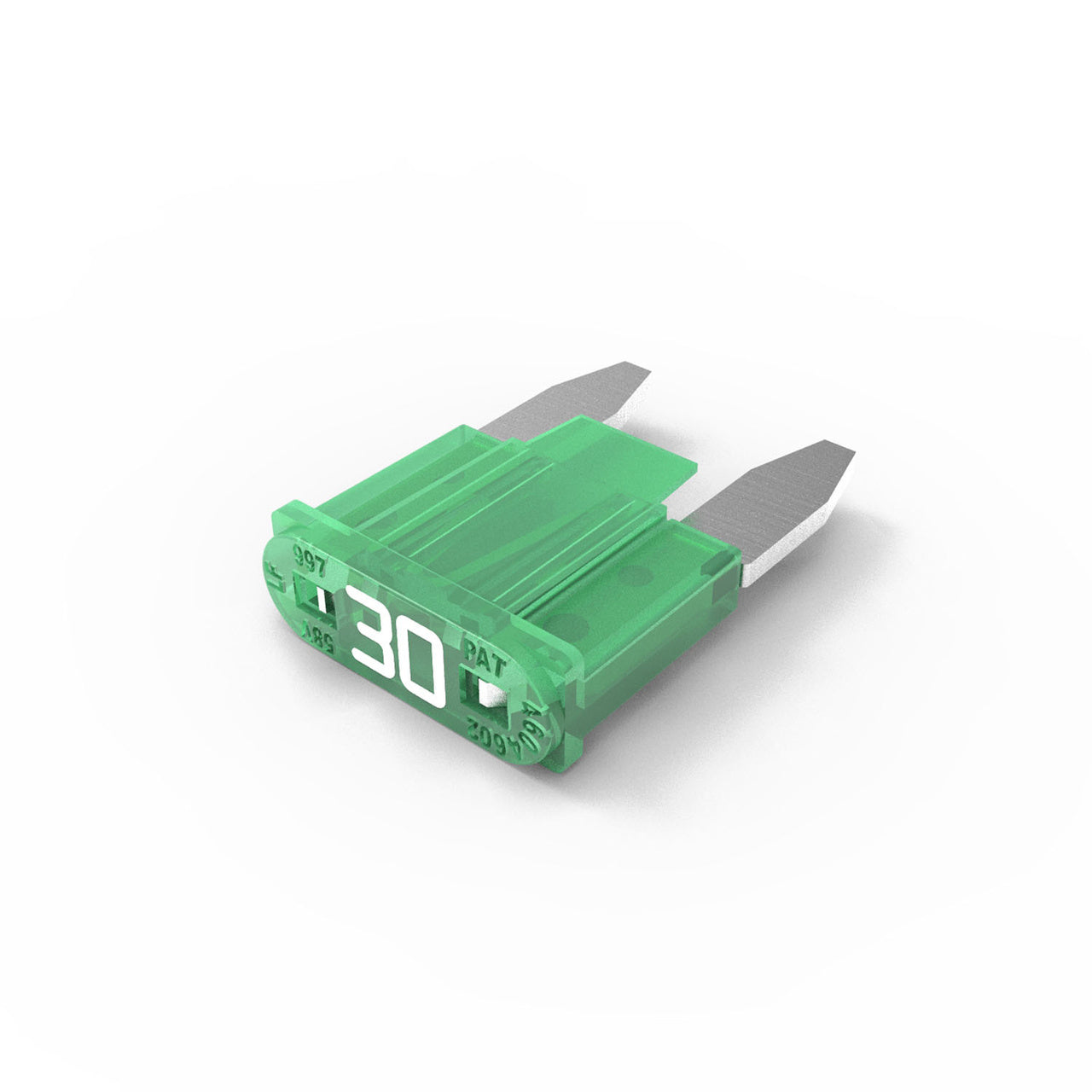

SKU #: ART-09970030WXN-LIT Size: 30A $1.50
- +
