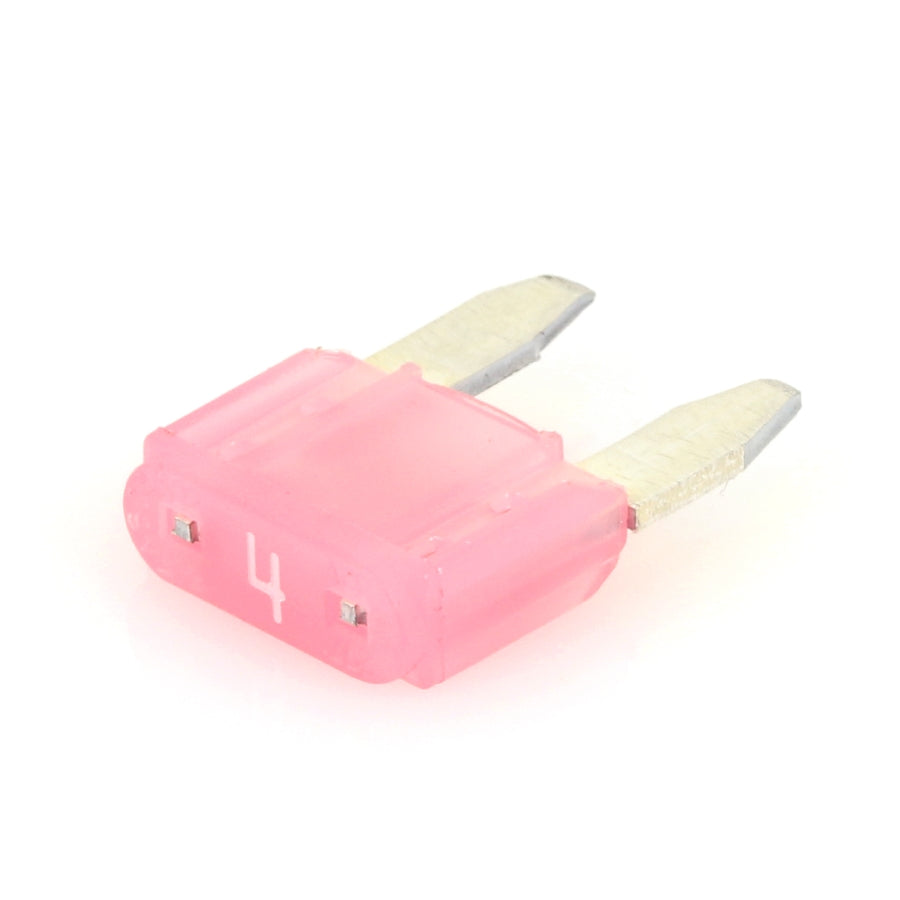

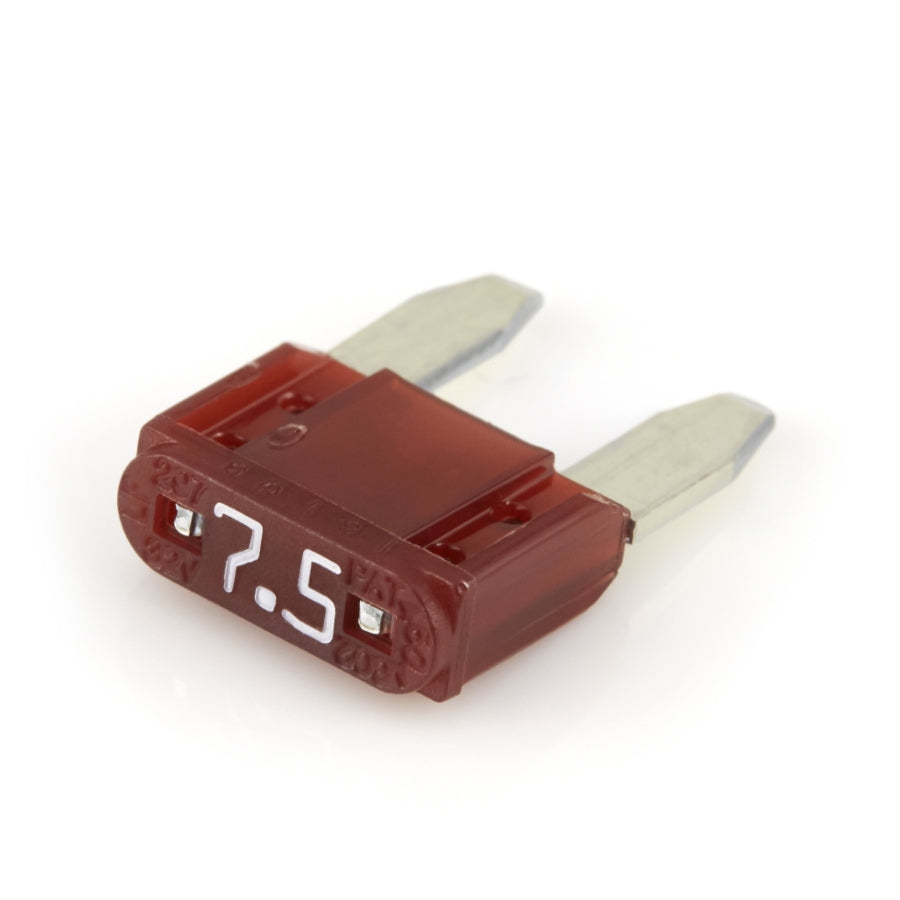

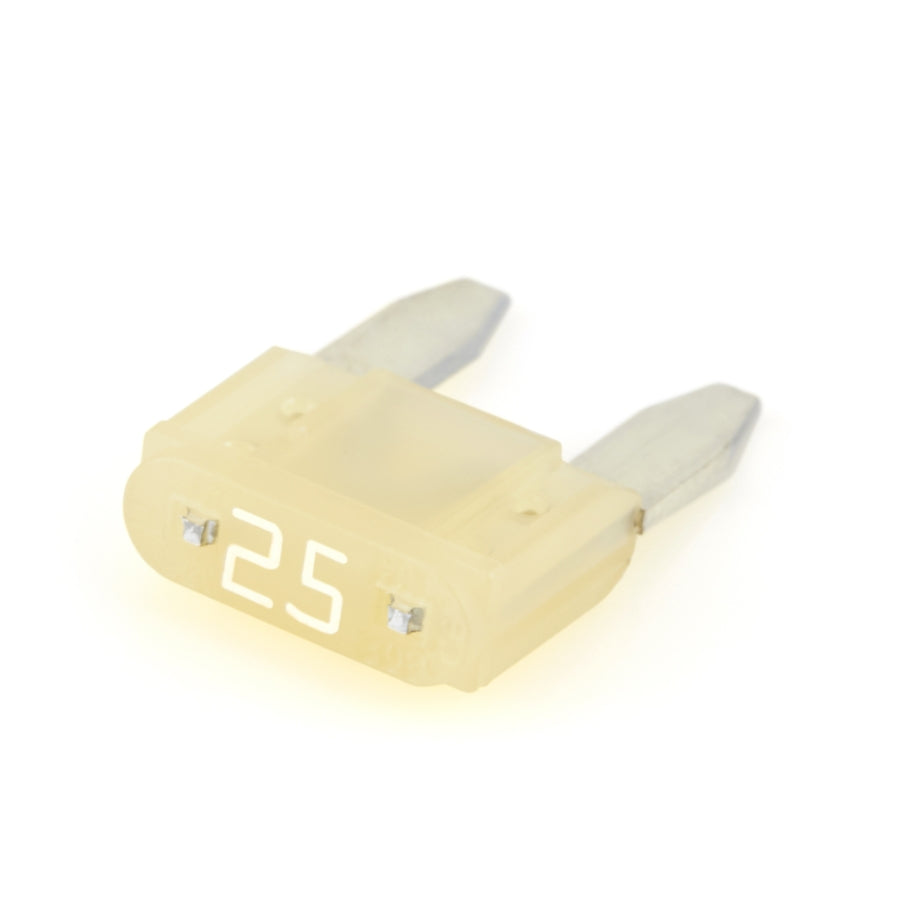

MINI BLADE FUSE - 58V

MINI® 58V blade fuses deliver space and weight savings while ensuring reliable circuit protection.

Features

• Fast-acting
• Available with ratings of 2 A to 30 A
• Interrupting rating of 1 kA at 58 V dc
• Silver-plated zinc alloy terminals
• Operate at up to 125 ℃ with terminals reaching 150 ℃ at contact point
• PA66 housing with UL flammability rating of V-2
• Net weight 0.57 g ±5 % per fuse
• Comply with SAE J2077, SAE 2576, and ISO 8820-3
• Recognized as UL 248 Special Purpose Fuses
• RoHS compliant and certified lead-free

Benefits

• Color coding indicates ampere rating
• See-through housings make it easier to see when fuses blow
• High-contrast ampere rating stamps aid identification
• Same blade size and pitch as other MINI fuses
• Rejection feature makes it impossible to replace a blown MINI 58V fuse with one that has a lower voltage rating
• Checkpoints on top make it possible to measure resistance without removing the fuse

Applications

• Cars
• Trucks
• Offroad vehicles
• Watercraft as approved by Littelfuse
