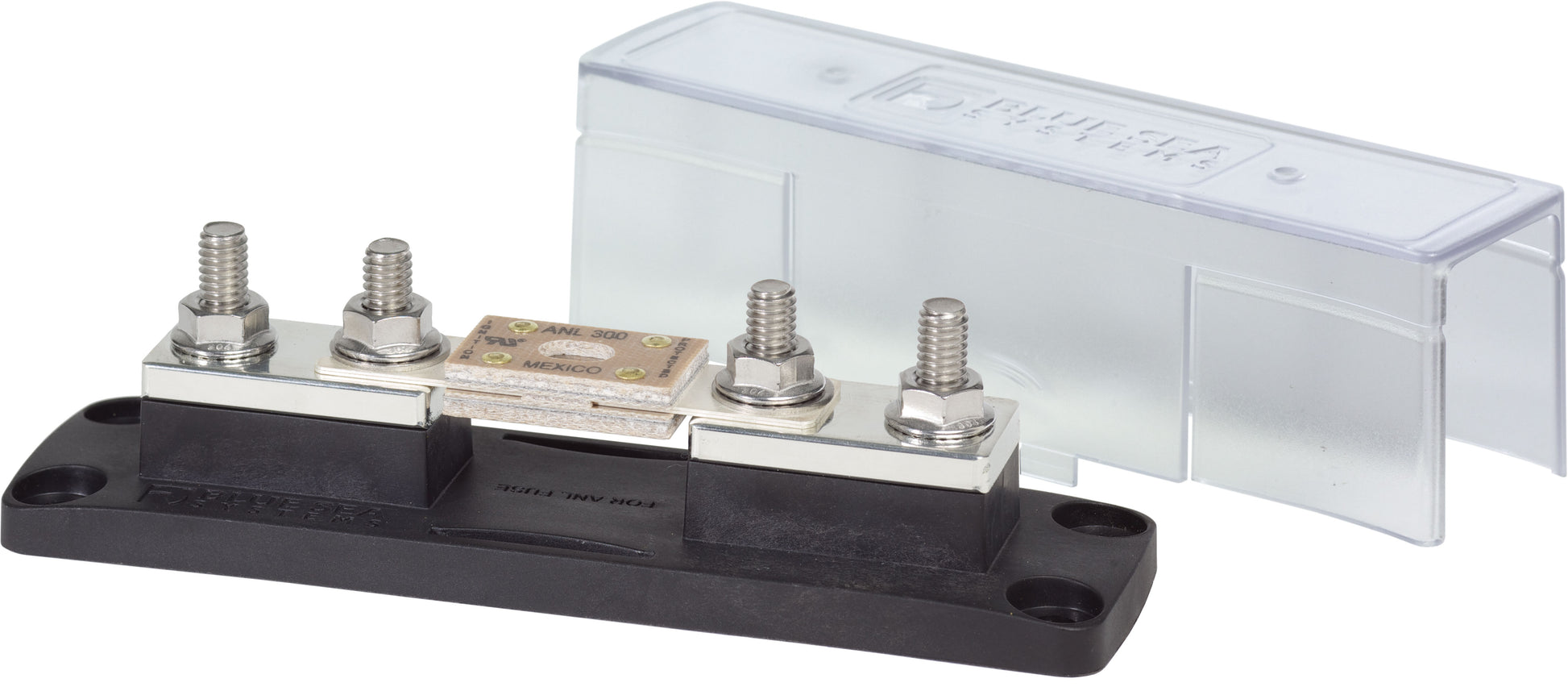

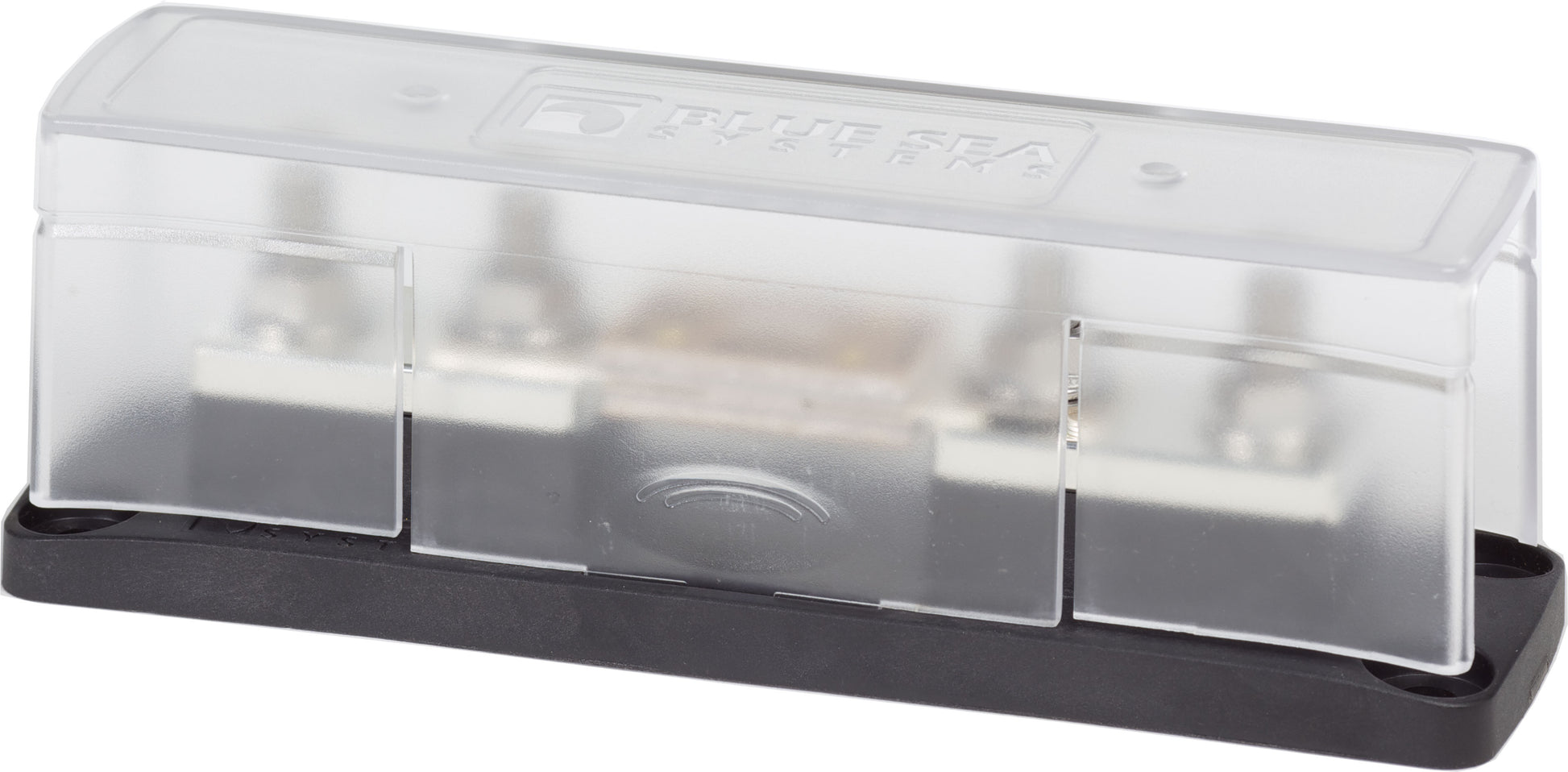

ANL Fuse Block with Insulating Cover - 35 to 750A

Blue Sea Systems

ART-5503-BSS

MPN: 5503

$57.09
$57.09
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About this product

Blue Sea Systems 5503 ANL fuse block with insulated cover. This fuse block is designed for ANL fuses between 35 Amps and 750 Amps DC.

Key Features

  • Cover included
  • Accepts 5/16" (M8) ring terminals
  • For use on systems up to 32 Volts DC
  • Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately

Technical Specification

Maximum Voltage
32VDC
Stud Size
5/16"
Base Material
Reinforced Polycarbonate
Maximum Cable Size
4/0
Maximum Torque
107 in-lb (12.09 Nm)
Stud Torque
107 in-lb (12.09 Nm)
Terminal Stud Size
5/16" - 18 (M8)
