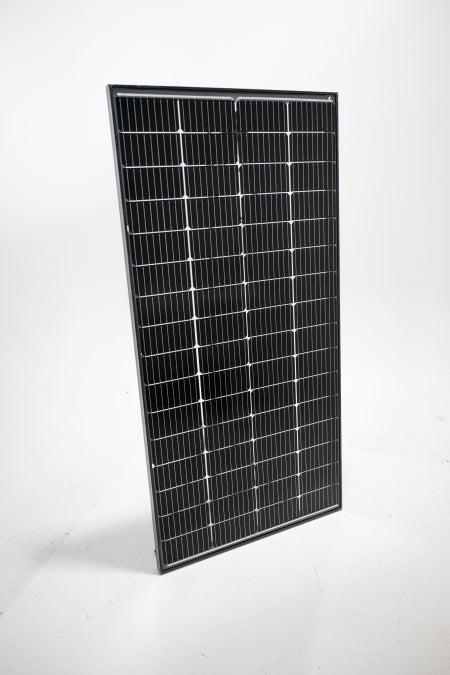

Lumera 24V 220W Solar Panel

Wholesale - Artek

ART-LS220WBI24-UL-LUM

MPN: LS220WM1024V Certified

$289.00
$289.00
Sale Sold out
Tax included. Shipping calculated at checkout.
UL
View full details

About this product


The Lumera 220W Bifacial Solar Panel is a sleek, high-performance solution for mobile and off-grid installations. Made in Western Canada, this panel features bifacial PERC cells that harvest sunlight from both sides—up to 30% more energy gain in reflective environments. It’s designed to endure harsh marine and RV conditions while delivering superior efficiency and reliability.

Key Features

  • Bifacial PERC monocrystalline cells for enhanced energy capture
  • Durable, low-profile design with anodized aluminum frame and tempered glass
  • MC4 connectors with long leads for easy hook-up
  • Manufactured in British Columbia with stringent quality control
  • Industry-leading warranty: up to 25 years output, including stretch performance guarantees

Technical Specification

Rated Power (Pmax)
220 W
Max Power Voltage (Vmp)
37.56 V
Max Power Current (Imp)
6.12 A
Open‑Circuit Voltage (Voc)
43.72 V
Short‑Circuit Current (Isc)
6.71 A
Dimensions
56.5″ × 30.5″ × 1.38″ (1410 × 700 × 35 mm)
Weight
~24 lb (10.94 kg)
Frame/Glass
Clear anodized aluminum/low‑iron tempered glass
Connectors
MC4 with long leads approx. 900 mm (36in)
Max System Voltage/Series Fuse
600 VDC / 15 A
Warranty
5 yr @95%, 10 yr @90%, 25 yr @80% output + 5 yr workmanship

No Documentation available.

SKU # Part # UL Price Quantity
SKU #: ART-LS220WBI24-UL-LUM UL: Certified $289.00
- +
SKU #: ART-LS220WBI24-LUM UL: Uncertified $285.00
- +
