1 4

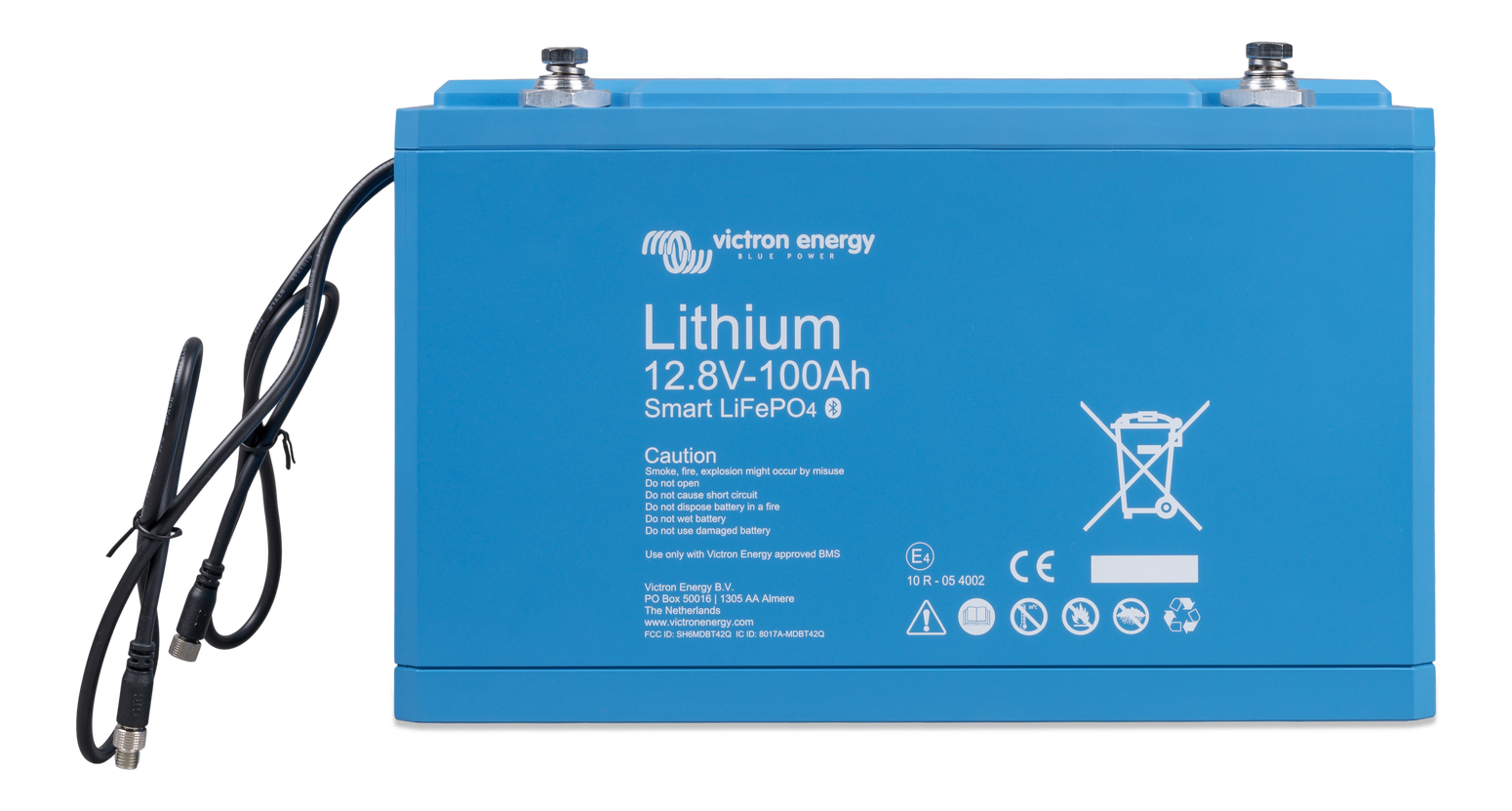

LiFePO4 Battery

LiFePO4 Battery

Victron Energy

ART-BAT512110610-VIC

MPN: BAT512110610

Special Order Only (expect additional 7-10 business day lead time).

Replace with Victron NG Batteries.


$1,025.10
$1,025.10
Sale Sold out
Tax included. Shipping calculated at checkout.
Voltage
Amperage Hours
View full details

Lithium Battery Smart 12,8V & 25,6V

  • With integrated cell balancing
  • Can be parallel and series connected
  • Bluetooth app available to monitor cell voltage and temperature

Requires one of these BMS-es:

Technical Specification

Nominal voltage
12.8 V
Nominal capacity (25 °C)
100 Ah
Nominal energy
1 280 Wh
Charge voltage (absorption)
14.0 – 14.4 V (14.2 V recommended)
Float voltage
13.5 V
Maximum charge current
200 A (≤ 50 A recommended)
Maximum continuous discharge current
200 A (≤ 100 A recommended)
End-of-discharge voltage
11.2 V
Internal resistance
0.8 mΩ
SKU # Part # Voltage Amperage Hours Price Quantity
SKU #: ART-BAT512110610-VIC Voltage: 12. 8V Amperage Hours: 100Ah $1,025.10
- +
SKU #: ART-BAT512120610-VIC Voltage: 12. 8V Amperage Hours: 200Ah $1,561.45
- +
SKU #: ART-BAT524110610-VIC Voltage: 25. 6V Amperage Hours: 100Ah $1,884.45
- +
SKU #: ART-BAT524120610-VIC Voltage: 25. 6V Amperage Hours: 200Ah $2,983.50
- +
