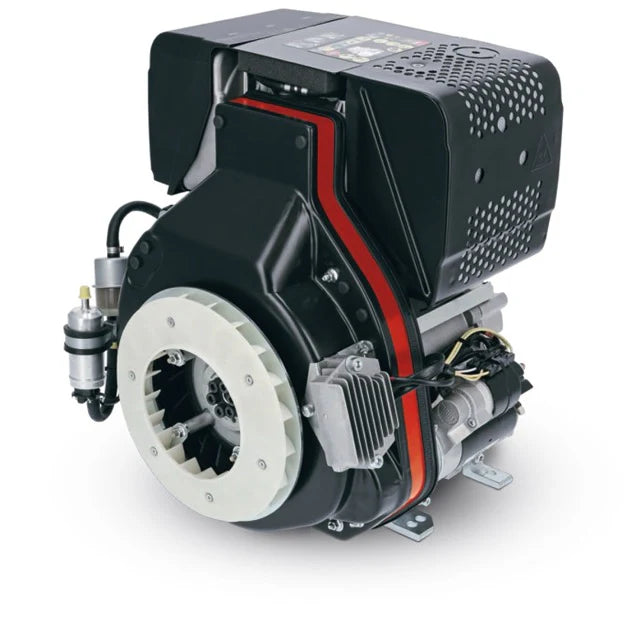

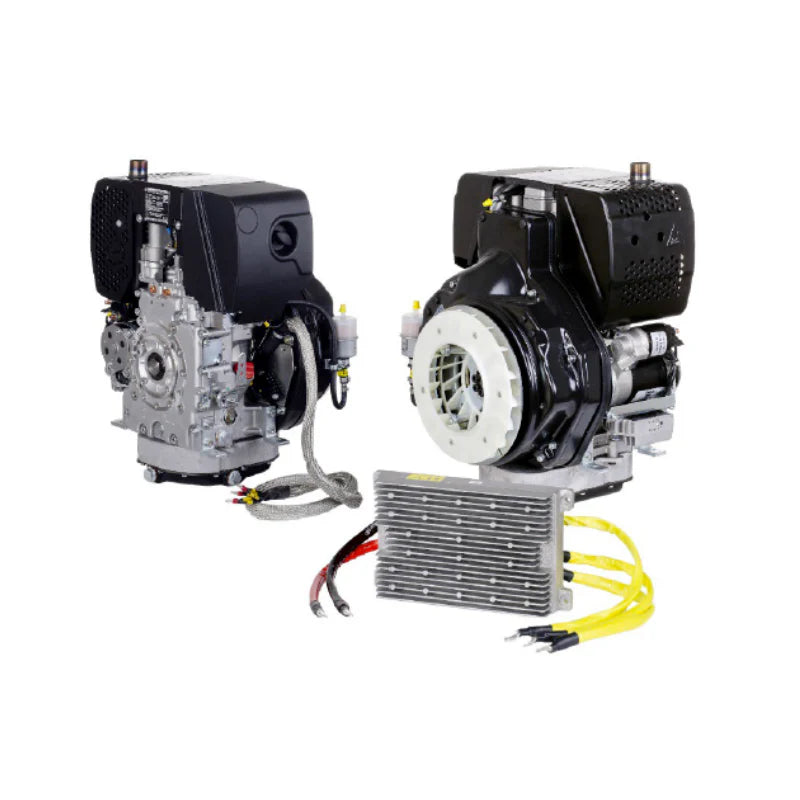

Hatz has always been a visionary leader in the field of emerging technologies. What’s more, Hatz has a proven track record of making dreams a reality. This fusion of technical expertise and innovative spirit has consistently put Hatz in a position to provide cutting edge solutions to its customers. For use in hybrid systems, as power outage backup, or for continuous power supply — the flywheel-integrated permanent magnet generator (or fiPMG for short) proves this once again.
Hybrid Opportunities
- Almost any machine can be transformed into a clean diesel/electric hybrid
- Diesel fuel has much greater energy density than lithium batteries
- Indoor accessibility, silent operation, zero emissions on battery
- Offers autonomy and range extension
- Eliminates the need for a separate battery charger
Minimize Size and Weight
Compared to a conventional generator, permanent magnet technology allows for reduced installation space requirements and less weight. Hatz has achieved this by integrating the rotor and stator directly into the flywheel. This reduces dimensions and mass by up to 90 percent compared to a standard 4 pole generator end.
Conventional vs. Permanent Magnet
Compared to the conventional design of typical engine/generator unit, the flywheel-integrated permanent magnet design reduces the size by 315 mm / 12.4 in and the weight by 17 kg / 37.5 lb. The contactless PMG system has a high degree of efficiency at over 85 percent.
