Digital Switching — LITE System

The essentials, streamlined.
Our LITE system brings single-screen RV control and monitoring to smaller builds. You get a Garmin SERV+ touchscreen, our prebuilt graphics package, and an RV-C four-channel high-side driver so you can run lighting and core loads right away then scale later as your needs grow.

What’s included

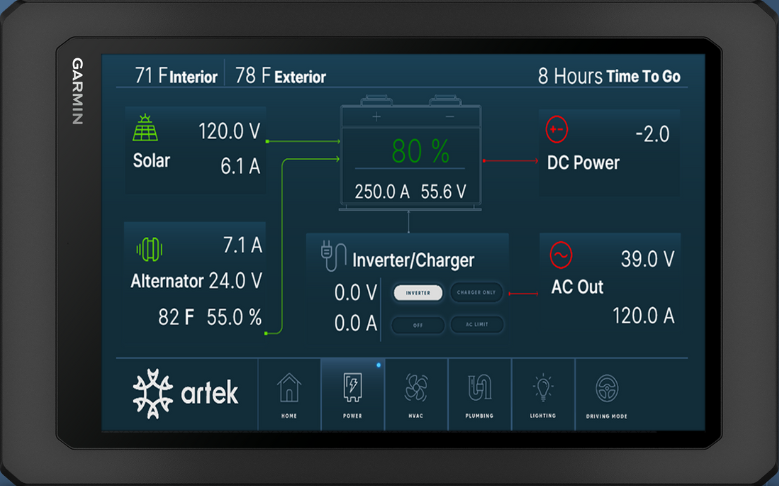

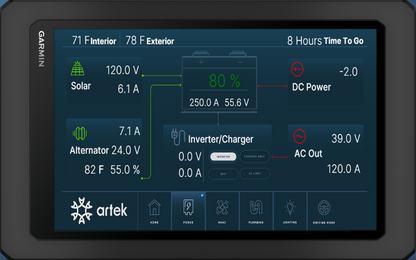

• Garmin SERV+™ display (10″)

• RV-C 4-port smart switching driver (high-side, protected)


Controls out of the box

• Lighting zones — multi-zone on/off with smooth dimming on supported channels

• Common loads — water pump, awning(s), fans, Starlink power, air compressor, lift bed, and other DC loads

• Climate & comfort — interior/exterior temps displayed; control select fans and supported A/Cs

• Audio — Fusion® integration supported in our graphics package

• Power— Victron overview when paired with a compatible Victron GX device.

Why LITE

• Faster install — single display with built-in outputs plus a 4-channel driver keeps wiring simple

• Lower upfront cost — no custom development required; graphics and mappings are ready


Tech at a glance

SERV+ display — core capabilities

• 6 high-side PWM outputs (1–10 A each) for lighting/aux loads
  (limit: only two channels >5 A simultaneously)

• Configurable I/O (CH7–CH11) for digital inputs, voltage/resistance sensing, temp sensors, low-current signal drive, RTC ignition

• Networking & UX — built-in Wi-Fi (AP or client)and multi-screen networking.


Included RV-C 4-port smart driver (LITE)

• 4 protected high-side outputs — ~10 A per channel (thermal/board limits apply); ~15 A total board limit

• 2 PWM-capable channels for smooth fan/lighting control

• Diagnostics over RV-C — overcurrent, thermal, open-load with real-time telemetry

• Input range: 9–36 V (12/24 V systems)
