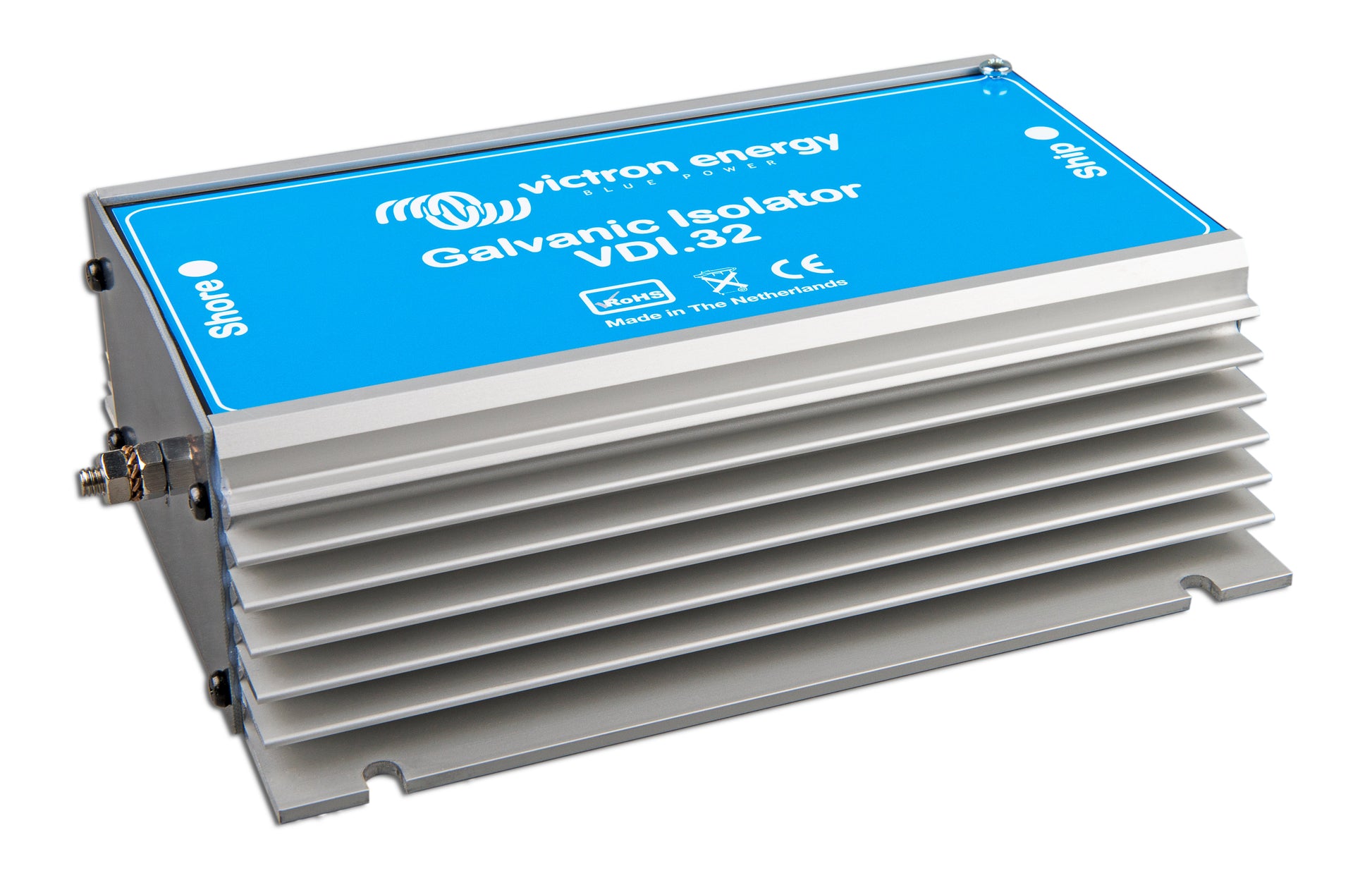

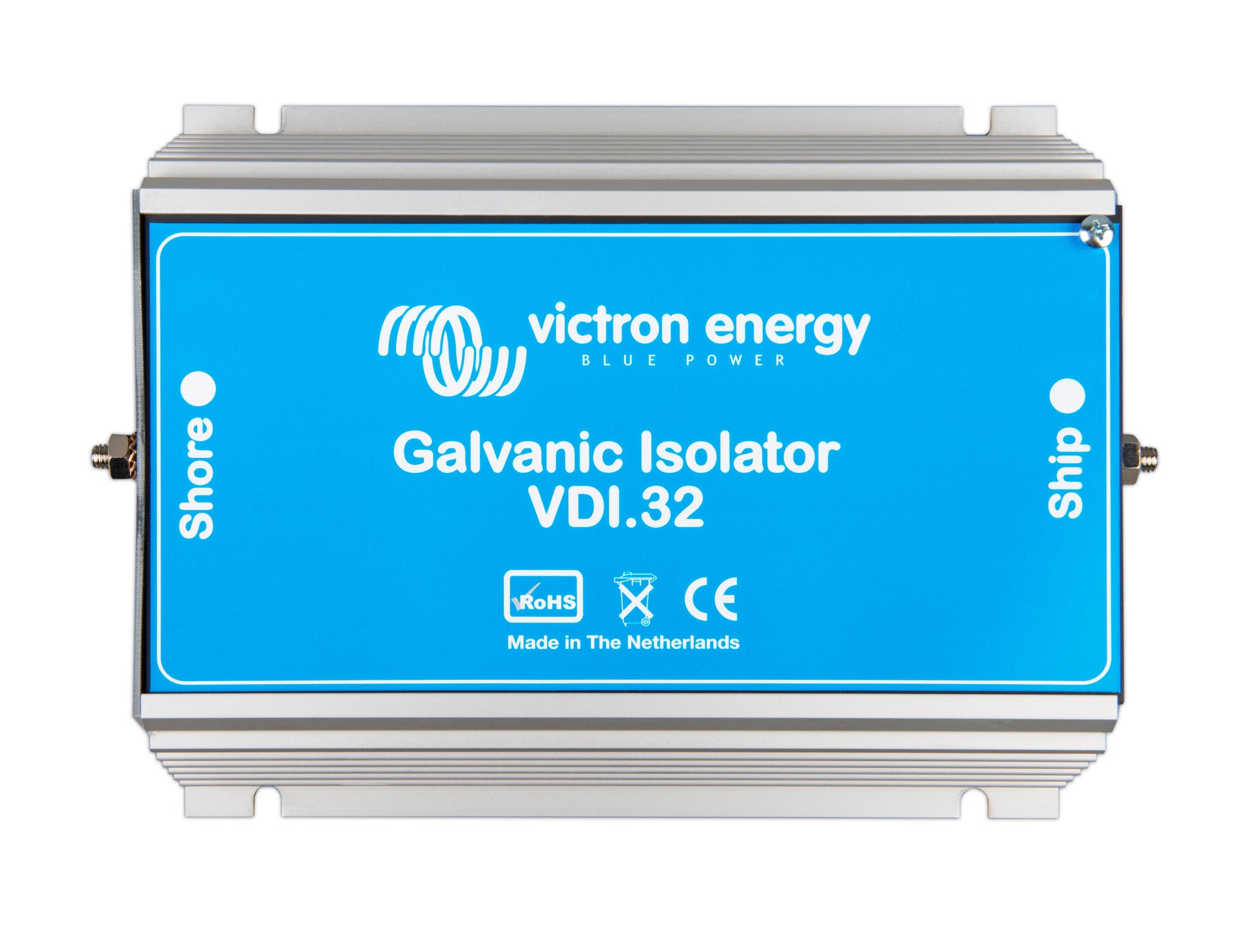

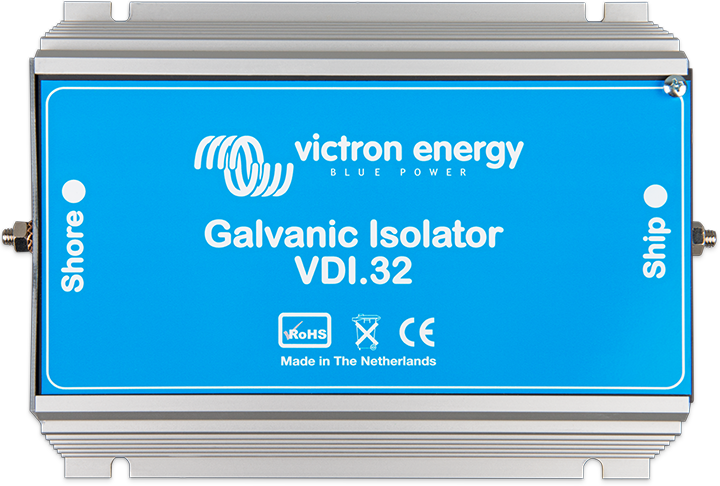

Galvanic Isolator VDI-16, VDI-32 and VDI-64

Galvanic Isolator VDI-16, VDI-32 and VDI-64

Victron Energy

SKU:ART-GDI000016000-VIC

Regular price $108.80
Regular price Sale price $108.80
Sold out
Shipping calculated at checkout.
Title
View full details

Collapsible content

Description

The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on.
The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.

The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.

How to Install

About the Brand

Victron Energy, headquartered in the Netherlands, has been a pioneering force in the design and manufacturing of products tailored for battery-based energy systems since its inception in 1975. Over the decades, this Dutch company has evolved from its modest beginnings as a technology startup into a prominent international enterprise. Today, their extensive product portfolio boasts nearly 1,000 distinct offerings, all of which are distributed and trusted by customers worldwide.

Victron Energy's reputation is firmly established on the global stage, renowned for the production of dependable off-grid battery inverter chargers and a diverse selection of cost-effective solar controllers. They particularly excel in meeting the unique demands of the automotive, RV, and boating sectors, where micro power systems are commonplace. In this fiercely competitive market, Victron stands out as one of the select few high-quality manufacturers, earning the trust of discerning consumers seeking reliability and innovation in their energy solutions.


SelectedSKU # Part # Title PriceQuantity
SKU #: ART-GDI000016000-VIC Title: Galvanic Isolator VDI-16 A $108.80
- +
SKU #: ART-GDI000032000-VIC Title: Galvanic Isolator VDI-32 A $249.05
- +
SKU #: ART-GDI000064000-VIC Title: Galvanic Isolator VDI-64 A $305.15
- +
