Epoch 12V Eco Series LiFePO4 Battery

Epoch

SKU:ART-12100ECO-EPO

MPN: 12100-ECO

Regular price $299.00
Regular price Sale price $299.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Amperage Hours
View full details

About this product

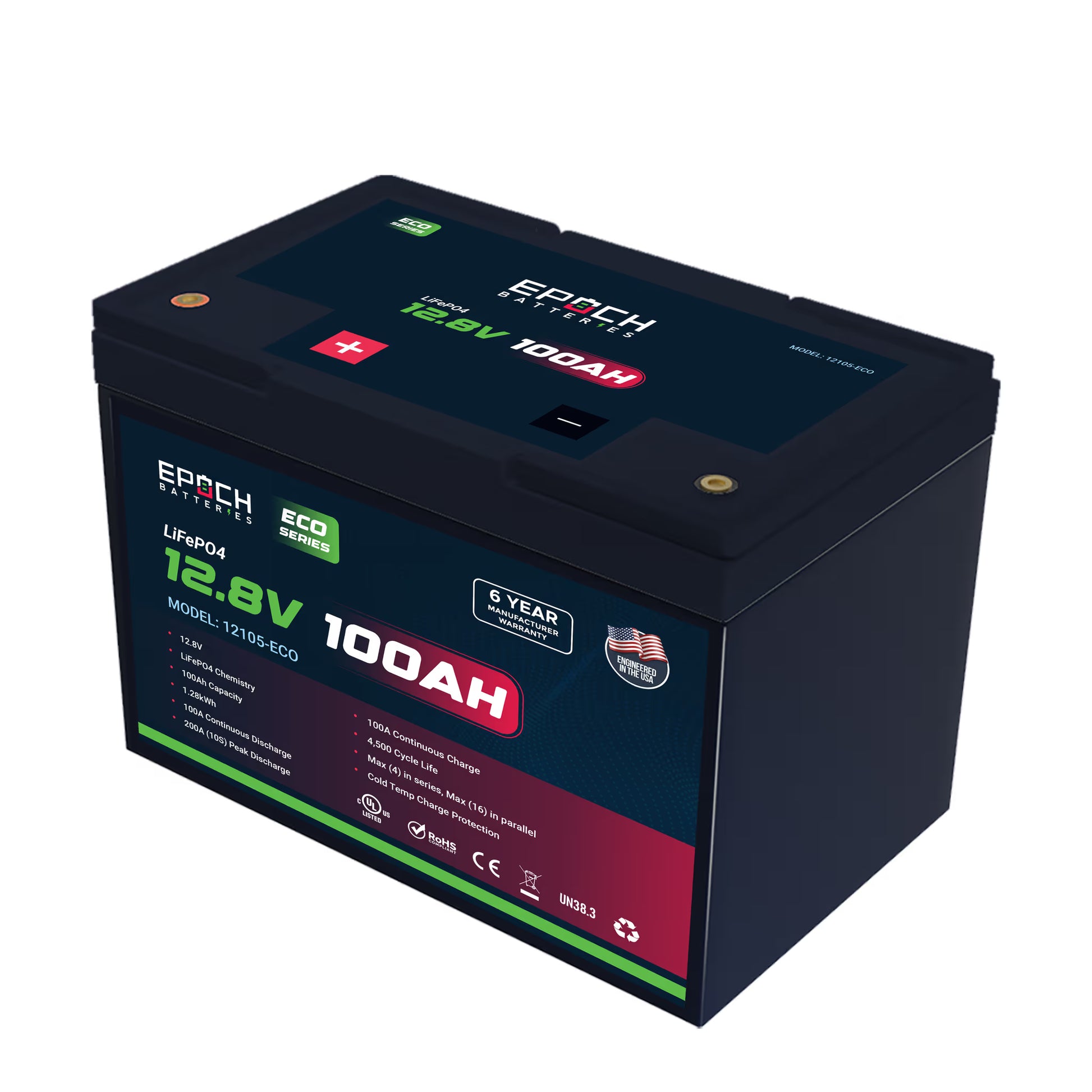

12V 100Ah

  • LiFePO4 Chemistry - Deep Cycle Battery
  • Group 24: L10.25" x W6.75" x H9.00"
  • Low-Temperature cut-off (Charge Protection)
  • Built-in Smart Battery Management System (BMS)
  • Advanced BMS system with 20+ safety features built in
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel up to 20.48 kWh
  • 4,500+ Cycle life & Maintenance-free
  • 6 Year Manufacturer Warranty

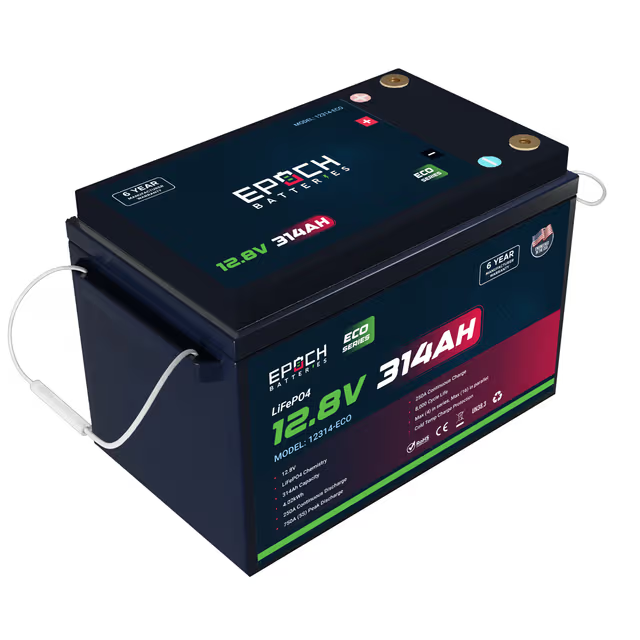

12V 314Ah

  • LiFePO4 Chemistry - Deep Cycle Battery
  • L15.5" x W7.63" x H10.5"
  • Low-Temperature cut-off (Charge Protection)
  • Built-in Smart Battery Management System (BMS)
  • Advanced BMS system with 20+ safety features built in
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel up to 64.3 kWh
  • 8,000+ Cycle life & Maintenance-free
  • 6 Year Manufacturer Warranty

Recommended Settings

12V 100Ah

  • Maximum Continuous Charge Current: 250A
  • Bulk/Absorption: 14.2V-14.4V
  • Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
  • Float Voltage: Disabled (preferred) or 13.3V-13.6VRe-bulk: 13.2V
  • Temperature Compensation: 0 mV/°C (none)
  • Equalization: Disabled
  • Battery Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
  • BMS High Voltage Cutoff: 14.6VSoC Recalibration: 14.6V

12V 314Ah

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

  • Bulk/Absorption: 14.2V – 14.6VAbsorption Time: Two batteries in parallel connections require 30 minutes 200Ah
  • Float: 13.4V – 13.8V
  • Equalization: 14.4V/ Disabled
  • Temperature Compensation: 0/Disabled
  • Charge Rate: 50% of the battery or battery bank capacity
  • Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
  • Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
  • Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
  • Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)

Technical Specification

Dimensions (100Ah)
10.25" x 6.75" x 9"
Dimensions (314Ah)
13.75" x 7.63" x 10.0"
Voltage
12.8V
Max Charge Voltage
14.6V
Operating Voltage Range
10.0 - 14.6V
Charge Temp Range
0°C (32°F) / 55°C (131°F)
Discharge Temp Range
-20°C (-4°F) / 60°C (140°F)
Storage Temp
0°C (32°F) / 35°C (95°F)
Series | Parallel
Max (4) in Series, Max (16) in Parallel
Max Continuous Discharge Amps
100Ah = 100A / 314Ah = 250A

No Documentation available.

SKU # Part # Amperage Hours Price Quantity
SKU #: ART-12100ECO-EPO Amperage Hours: 100Ah $299.00
- +
SKU #: ART-12314ECO-EPO Amperage Hours: 314Ah $699.00
- +
