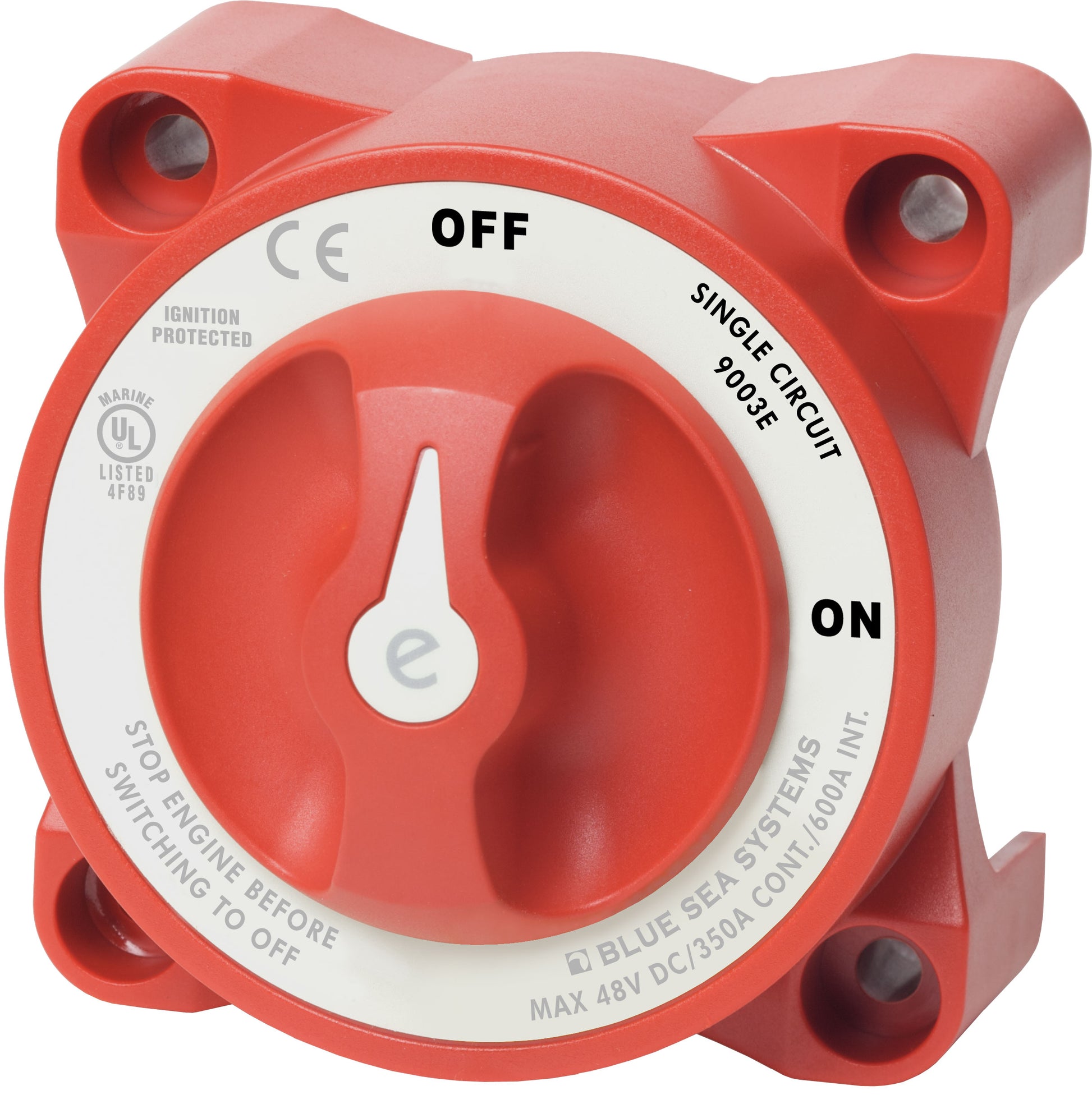

E-Series On Off Battery Switch

Wholesale - Artek

ART-9003E-BSS

MPN: 9003E

$58.65
$58.65
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About this product

Rated for 350 amp continuous duty for applications requiring high power output and reliability.
That's 45% higher than standard switches.
Higher than most, these switches have a maximum operating voltage of 48V DC.

Key Features

• Ignition protected - safe for use on gasoline powered boats

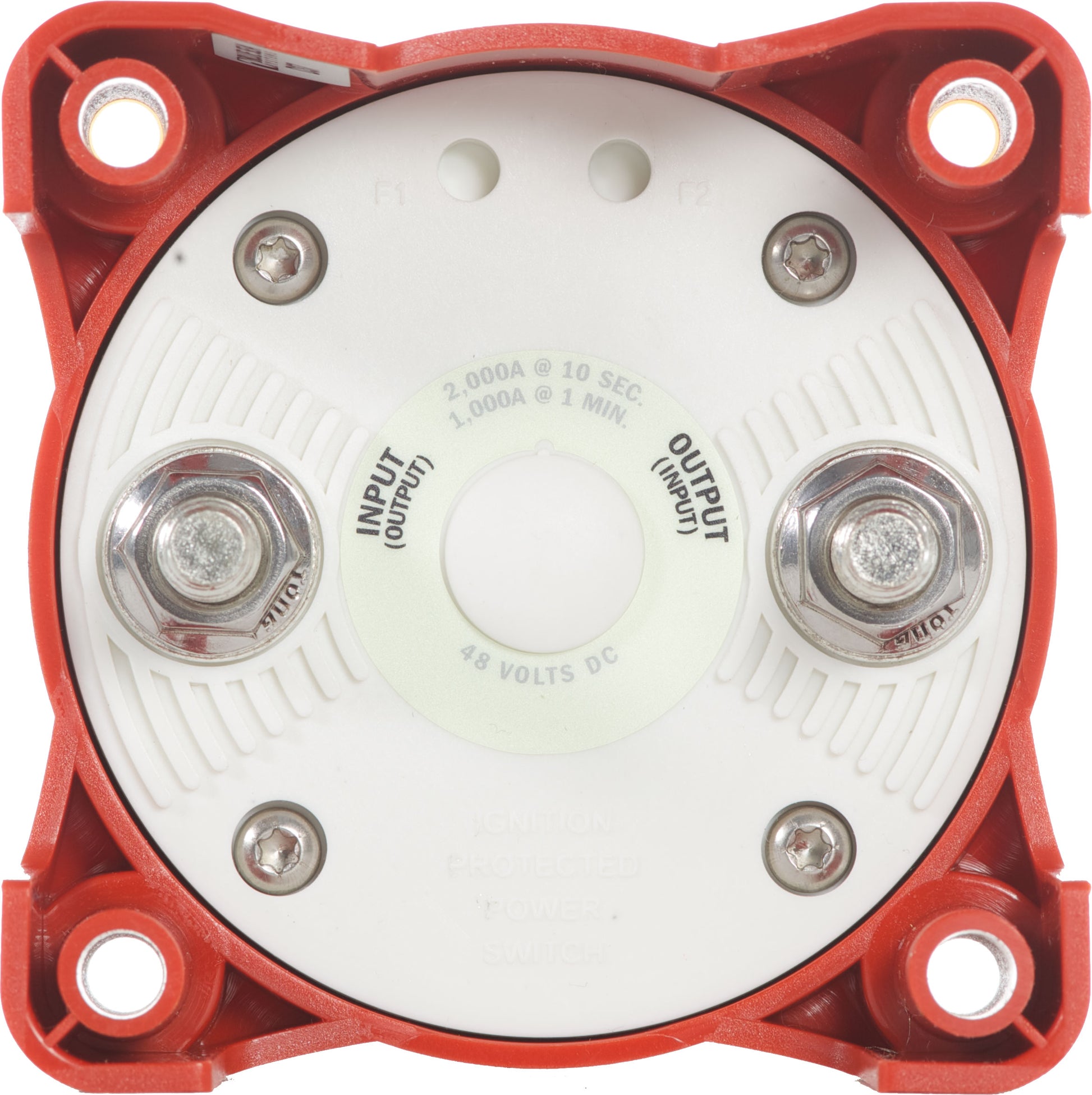

• 3/8" tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts multiple cable terminals up to 4/0
• Rated at IP66 - withstands heavy seas, jets of water

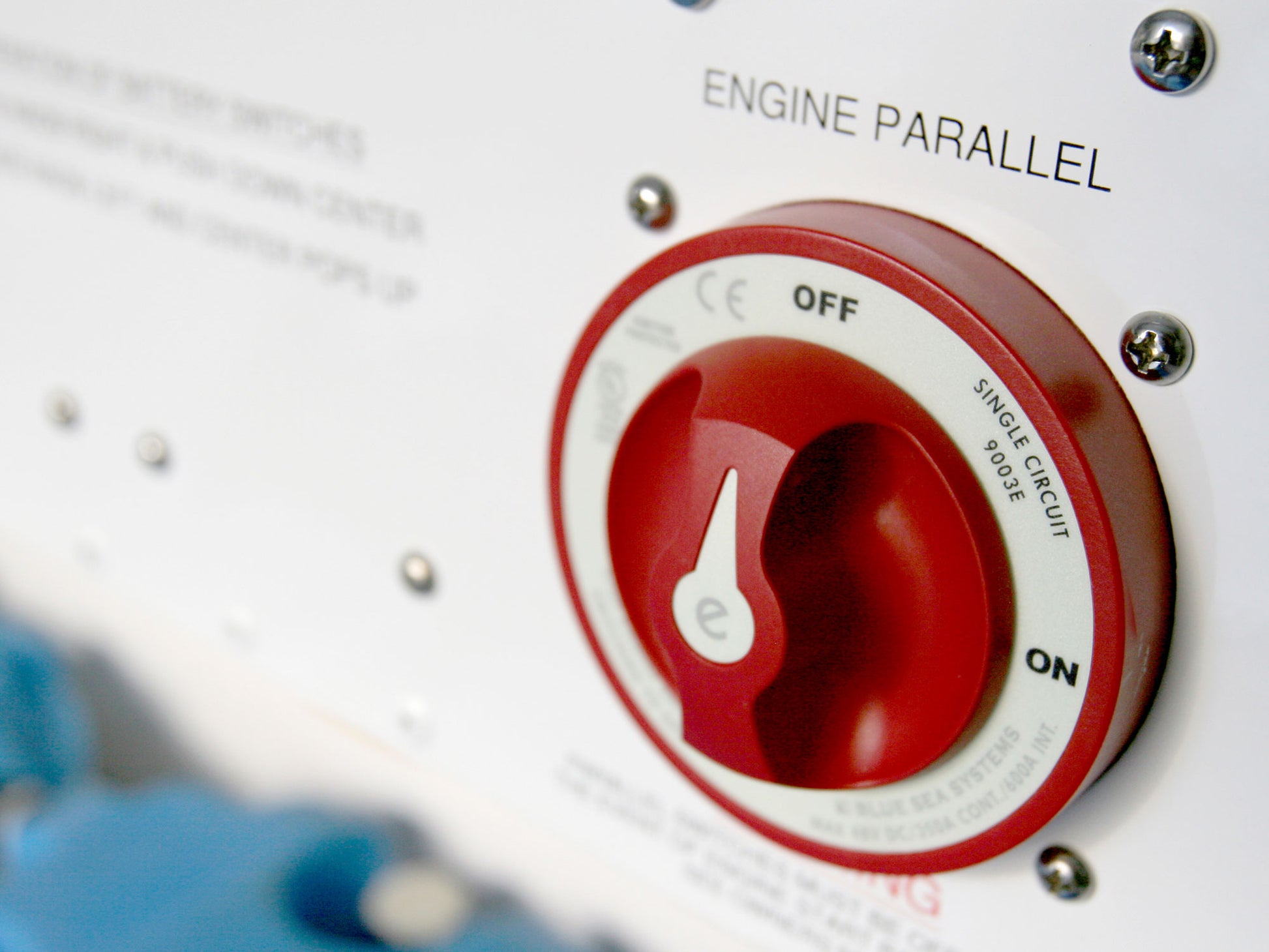

• Case design allows surface or flush mounting
• Fits Perko and Guest low amperage battery switch hole patterns

Technical Specification

10 Sec
Cranking 2000A
AFD
No
Cont. Amp
350A
Int. Amp
600A
Stud
3/8"
Volts
48VDC Max.
60 Sec Cranking
1000A
Battery Inputs
1
Dimensions
3.85"W x 3.85"H x 3.10"D
