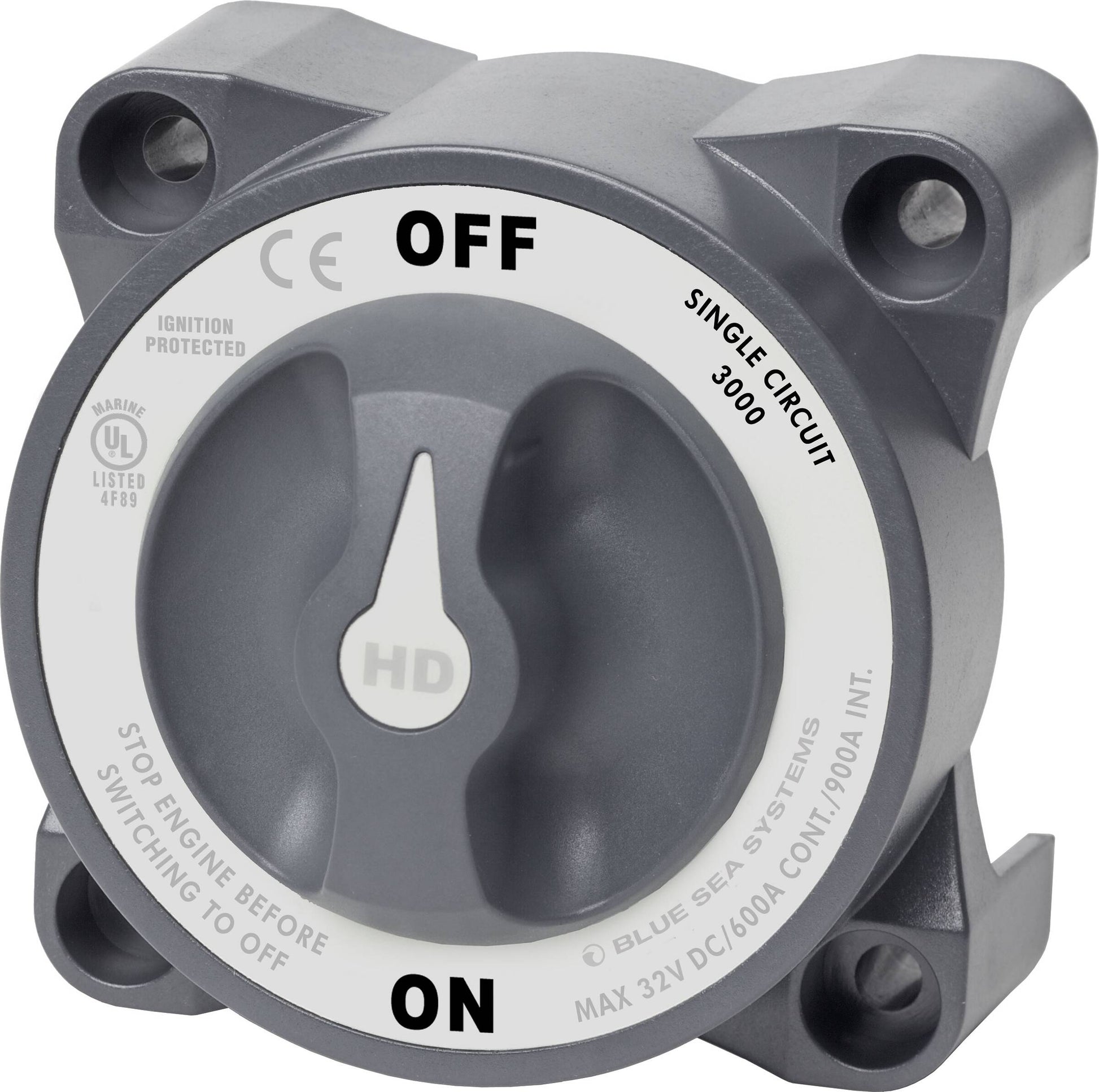

HD-Series Heavy Duty On-Off Battery Switch (3000)

Blue Sea Systems

ART-3000-BSS

MPN: 3000

$94.93
$94.93
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About This Product

Switches a single battery to a single load group.

Key Features

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Accepts two 4/0 AWG (95mm²) battery cables
  • The 3000 is an OFF-ON switch. It does NOT have select between two sources. This is a true disconnect switch, where one load can be switched ON or OFF only.

Technical Specification

Switch Type
Single Circuit ON-OFF
Switch Positions
2
Battery Combine
No
Alternator Field Disconnect
No
Maximum Voltage
32V DC
Terminal Stud Torque
220 in-lb (24.86 Nm)
Continuous Rating
500A
Intermittent Rating
900A (5min)
Starting Rating 30 sec
1750A
Battery Inputs
1
Cable Clearance For 4/0 AWG Cables
1.10in (27.94 mm)
Cable Quantity to Meet Ratings
Two Cables
Cable Size to Meet Ratings
4/0 AWG (120mm²)
Mounting Holes
Accept 1/4" (M6) Screw
Switching Rating
25A
Terminal Stud Size
1/2" (M12)
