COLUMBIA SUBFLOOR MERCEDES SPRINTER

COLUMBIA SUBFLOOR MERCEDES SPRINTER

Wholesale

ART-COL-SPR-WHO

ABOUT

NEW DESIGN

Our second generation flooring solution includes 5 PEX exit options and a water chase. You no longer need to select your PEX exit prior to manufacturing. You may choose your desired exit location as well as if you would like to utilize the water chase channel at time of install.

This new design also increases the amount of PEX, resulting greater heating capabilities. PEX lengths now range from 100' - 186' depending on your vehicle chassis, which is an over an 80% increase for extended van models and about 20% more PEX than our closest competitors.

In addition, there is now an option to replace the plywood overlay with an aluminum overlay to increase thermal conductivity.

MADE TO ORDER

Floors are cut each Monday. Typical manufacturing lead times are 7 - 10 business days.

Floors can be held for local pick up or shipped. Additional freight charges apply for shipped orders.

If you have questions or need a freight quote, please contact us.

We do not accept returns or issue refunds on custom or made to order items.


$3,231.00
$3,231.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Topper
Vehicle Chassis
View full details

Included in the floor system kit:

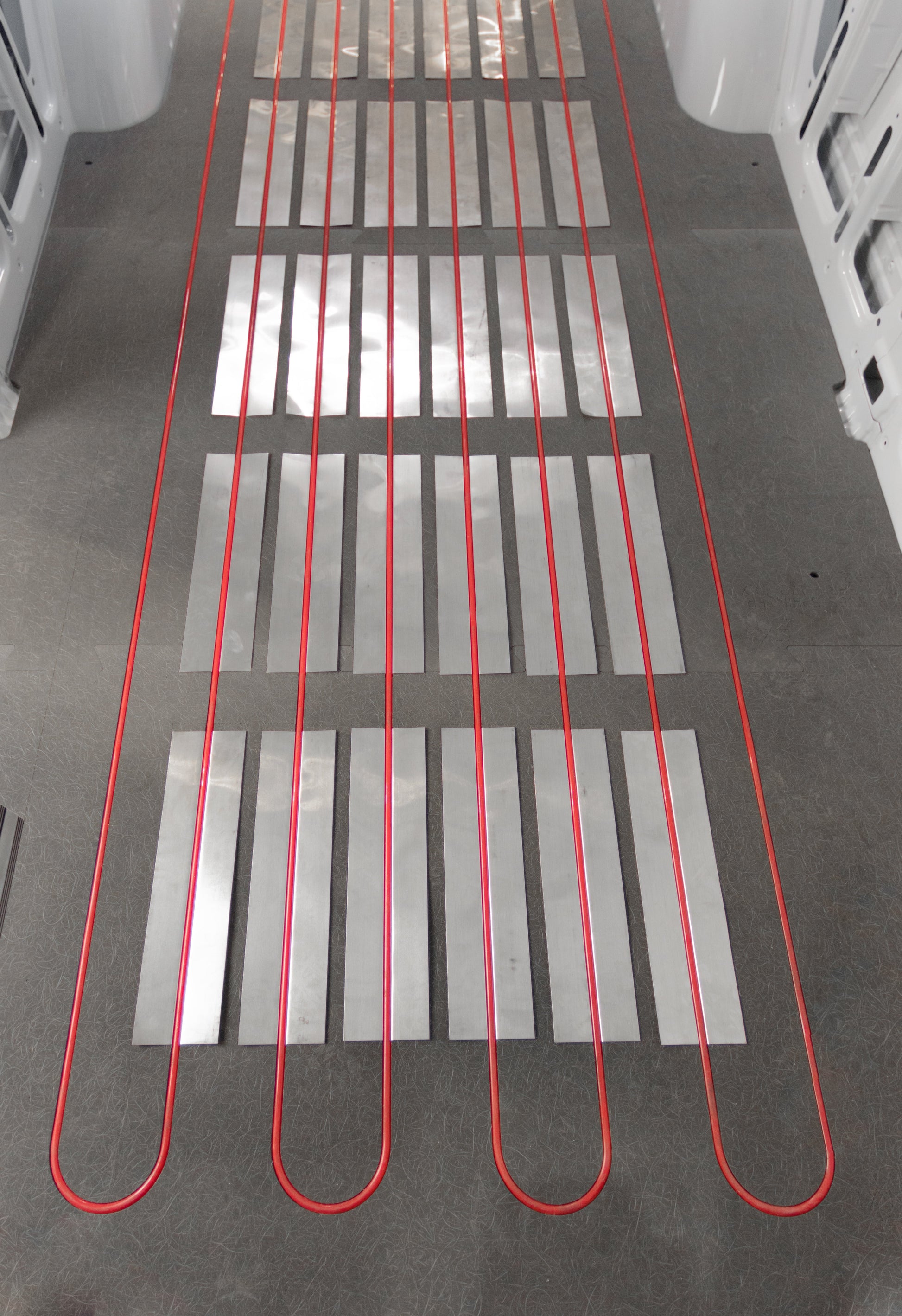

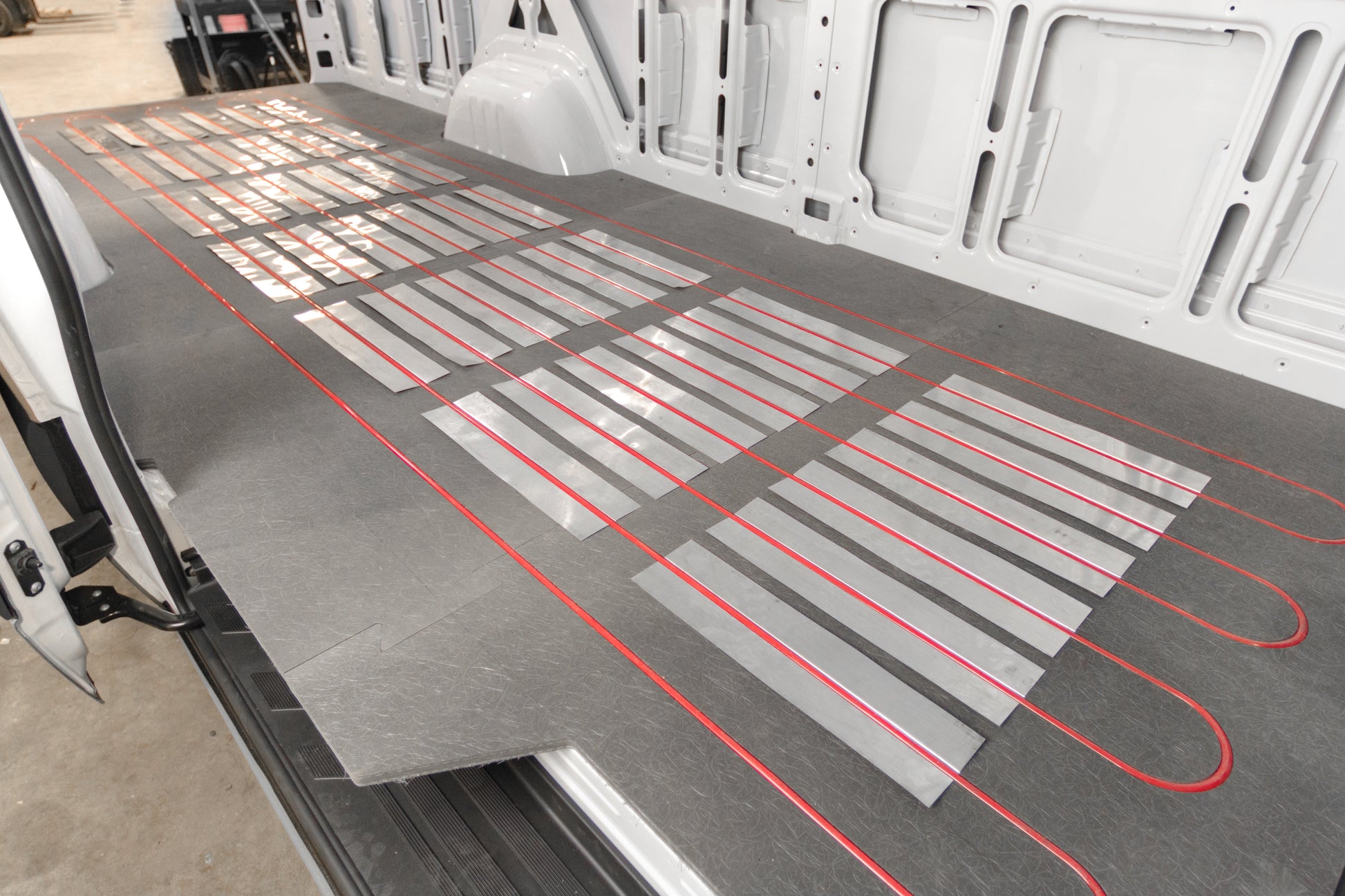

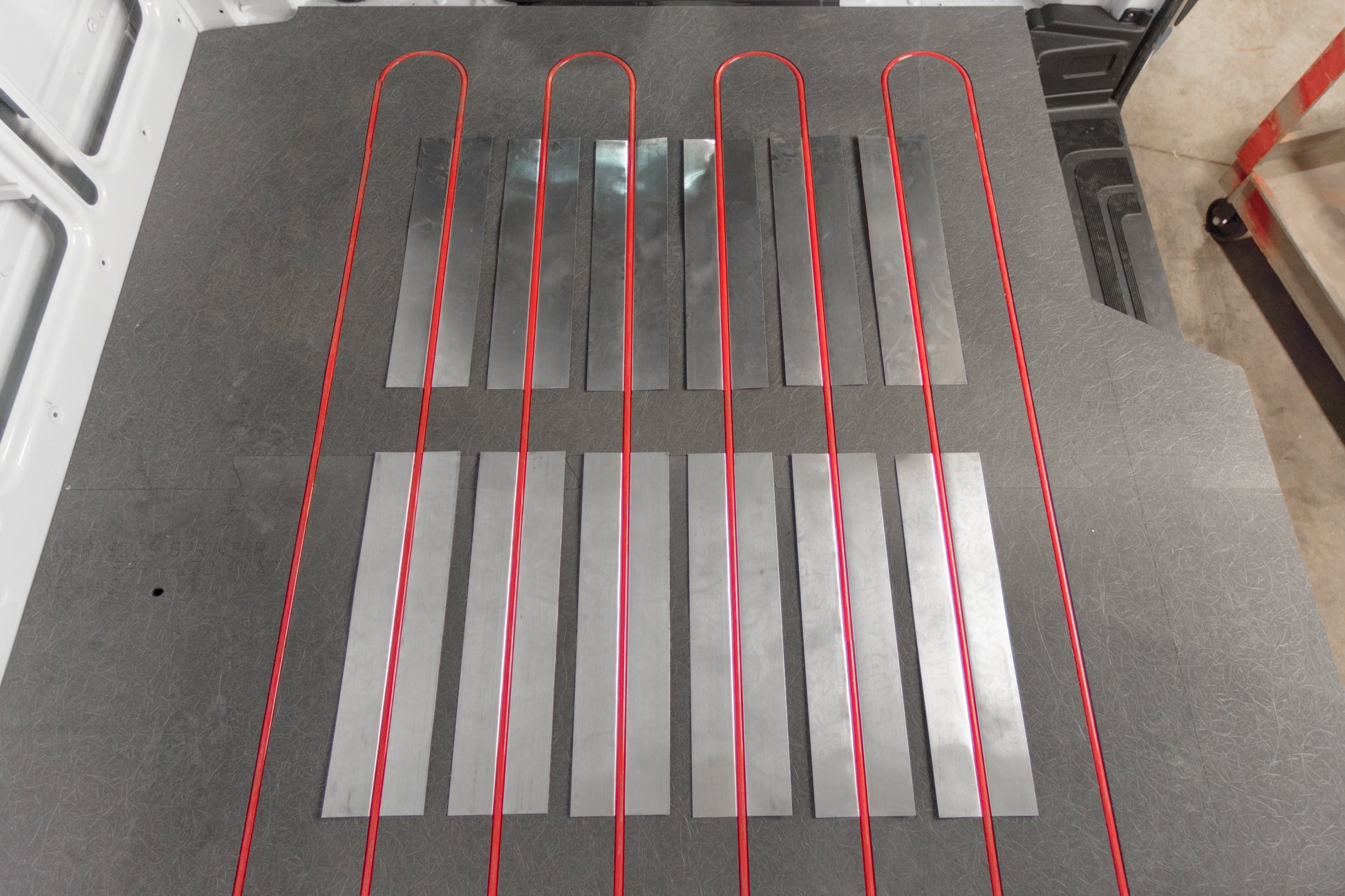

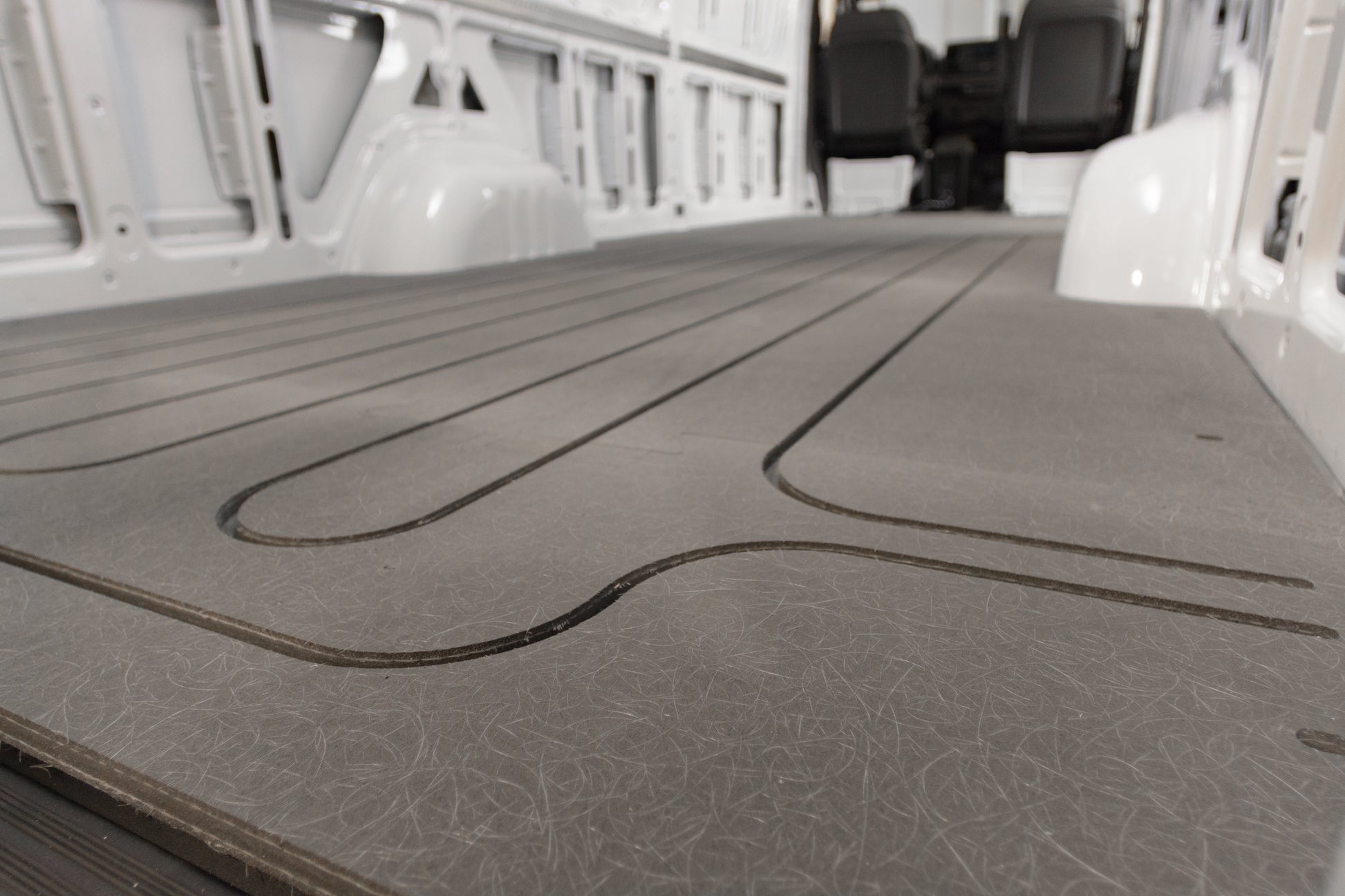

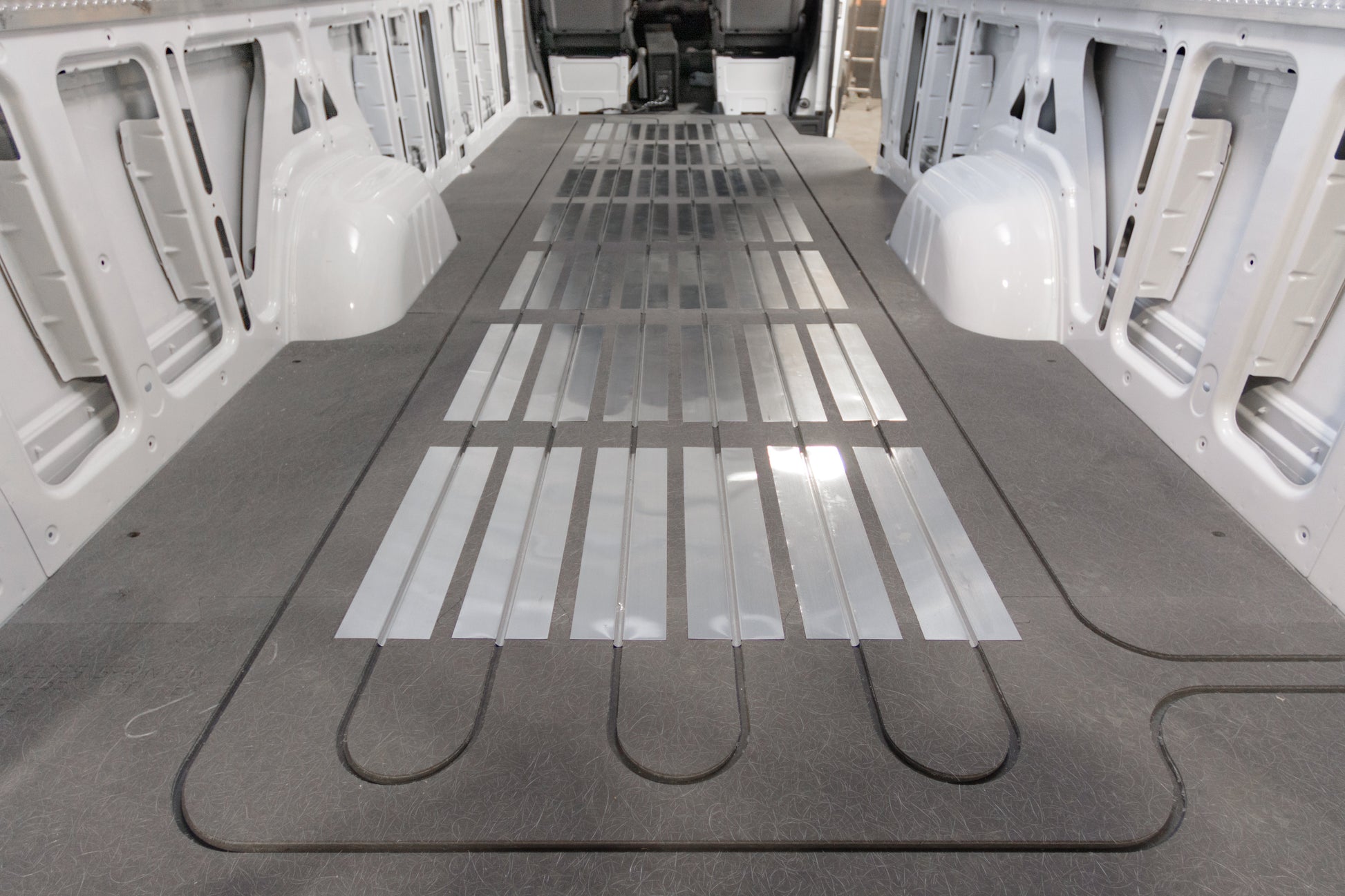

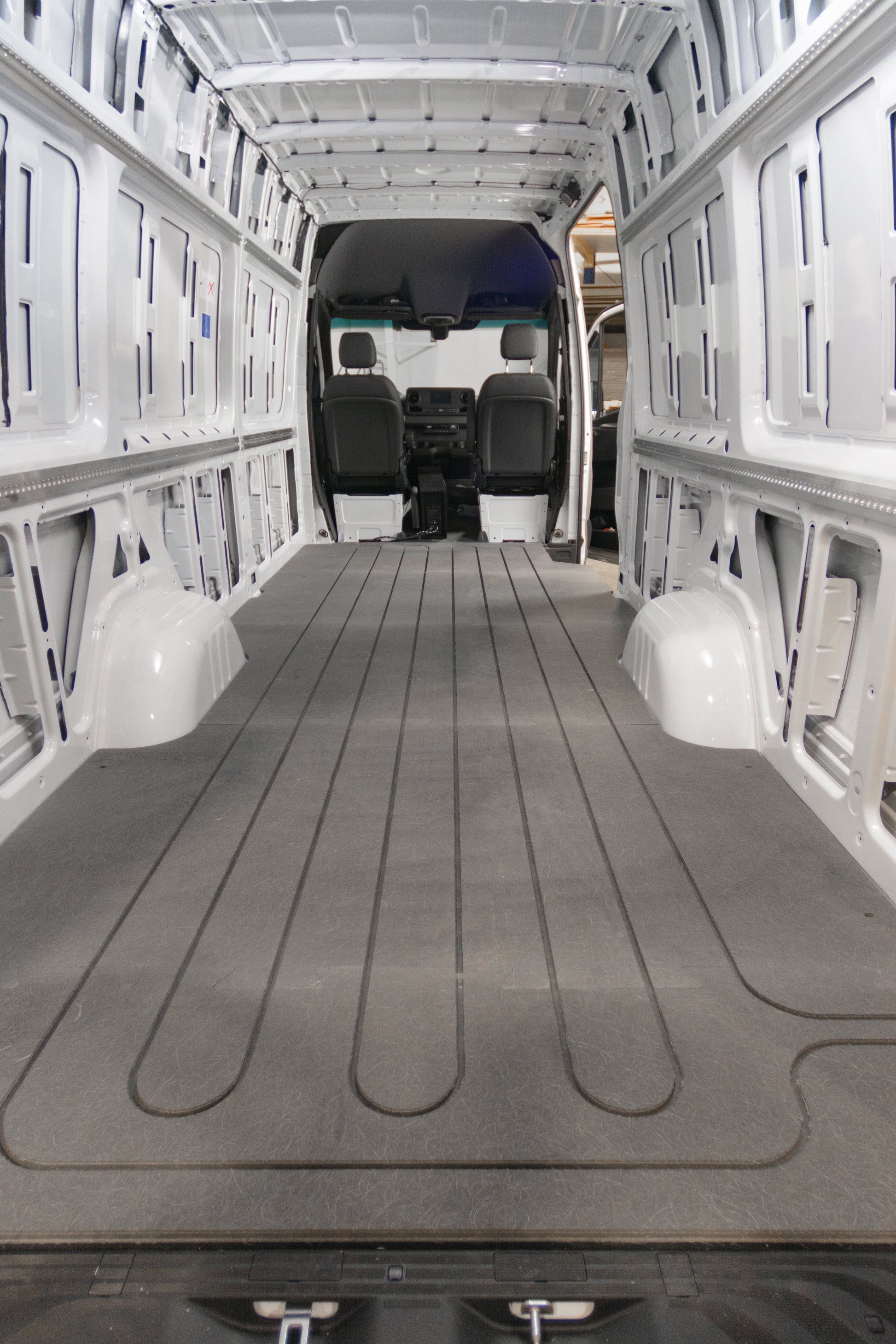

  • Fiberglass reinforced closed-cell foam substrate with CNC routed PEX channels.
  • CNC mapped plywood overlay with slight engravings that show where the PEX and heat transfer plates lie beneath.

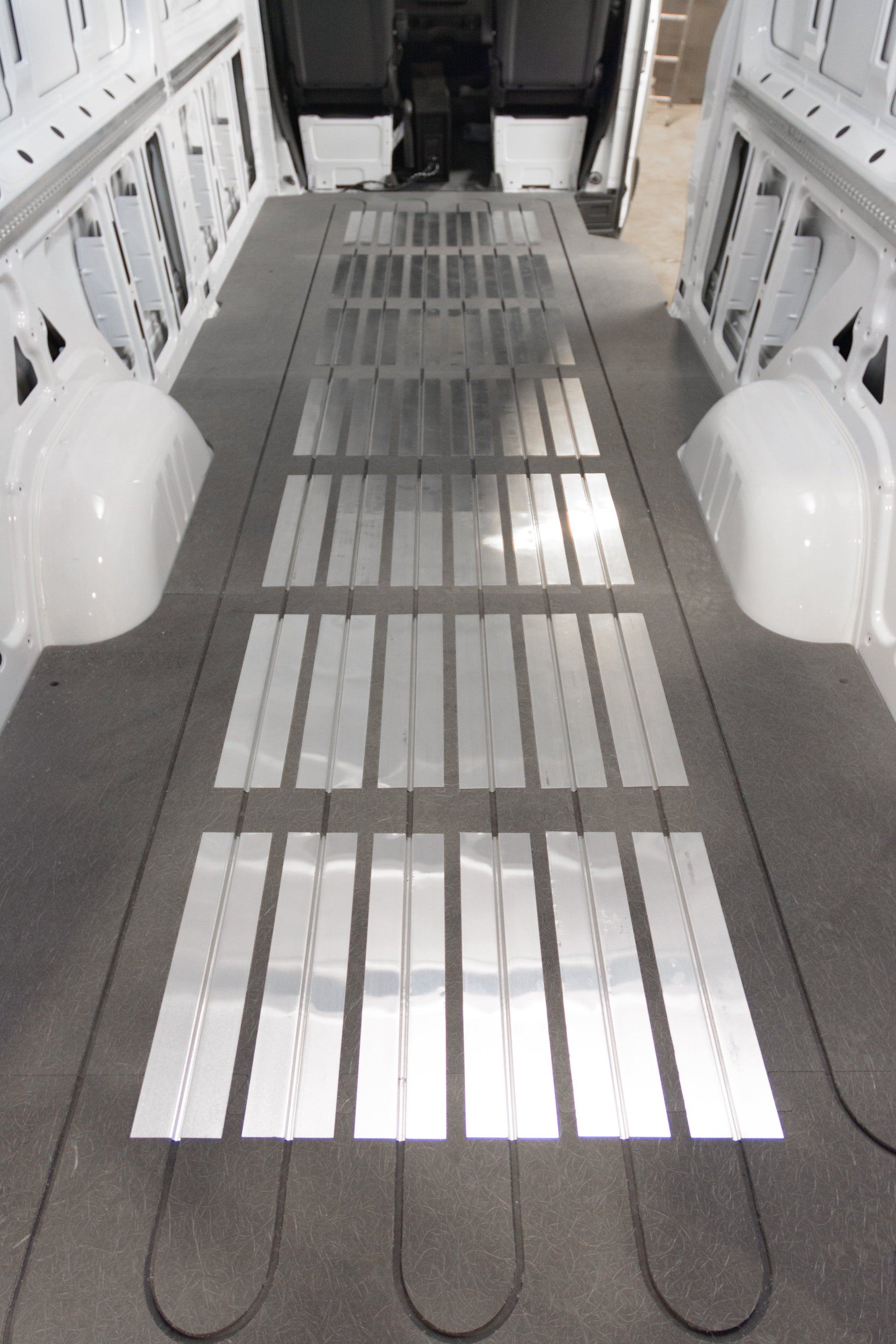

  • Aluminum heat transfer plates

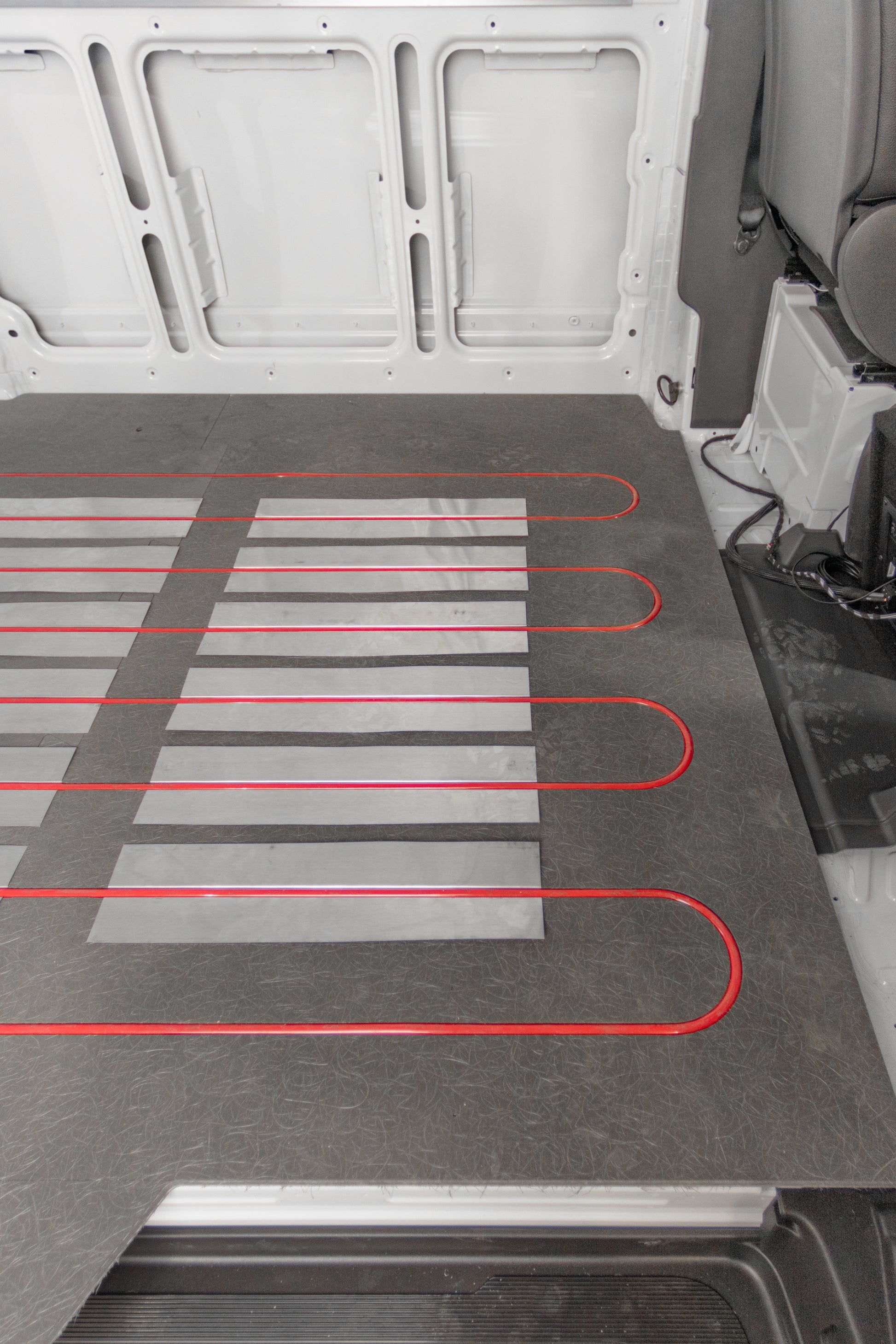

  • PEX pipe
  • Adhesive

Total floor height: 1"

Installation Instructions:

No technical specification available.

No Documentation available.

SKU # Part # Topper Vehicle Chassis Price Quantity
SKU #: ART-COL-SPR-WHO Topper: Plywood Vehicle Chassis: 144 $3,231.00
- +
SKU #: ART-COL-SPR-170 Topper: Plywood Vehicle Chassis: 170 $3,769.00
- +
SKU #: ART-COL-SPR-170-WHO Topper: Plywood Vehicle Chassis: 170 EXT $4,308.00
- +
SKU #: ART-COL-SPR-144-WHO Topper: Plywood Vehicle Chassis: 144 DRW $3,231.00
- +
SKU #: ART-COL-SPR-170-WHO Topper: Plywood Vehicle Chassis: 170 DRW $3,769.00
- +
SKU #: ART-COL-SPR-170-EXT-WHO Topper: Plywood Vehicle Chassis: 170 EXT DRW $4,308.00
- +
SKU #: ART-COL-SPR-1-WHO Topper: Aluminum Vehicle Chassis: 144 $3,834.68
- +
SKU #: ART-COL-SPR-1-WHO Topper: Aluminum Vehicle Chassis: 170 $4,589.65
- +
SKU #: ART-COL-SPR-170-E-WHO Topper: Aluminum Vehicle Chassis: 170 EXT $5,344.63
- +
SKU #: ART-COL-SPR-144-D-WHO Topper: Aluminum Vehicle Chassis: 144 DRW $3,834.68
- +
SKU #: ART-COL-SPR-170-D-WHO Topper: Aluminum Vehicle Chassis: 170 DRW $4,589.65
- +
SKU #: ART-COL-SPR-170-EXT-D-WHO Topper: Aluminum Vehicle Chassis: 170 EXT DRW $5,344.63
- +
