JL Audio C2 Car Speaker System Two-way Component System

JL Audio

ART-0100312500-GAR

MPN: 010-03125-00

$329.99
$329.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Speaker size
View full details

About this product

C2 speaker systems combine real silk dome tweeter performance, smooth midrange and powerful midbass capabilities in a wide range of component speaker sizes.

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality.

Woofers have no harshness in the upper midrange, and they transition smoothly to the tweeters. Well-dampened cones and suspensions minimize ringing.

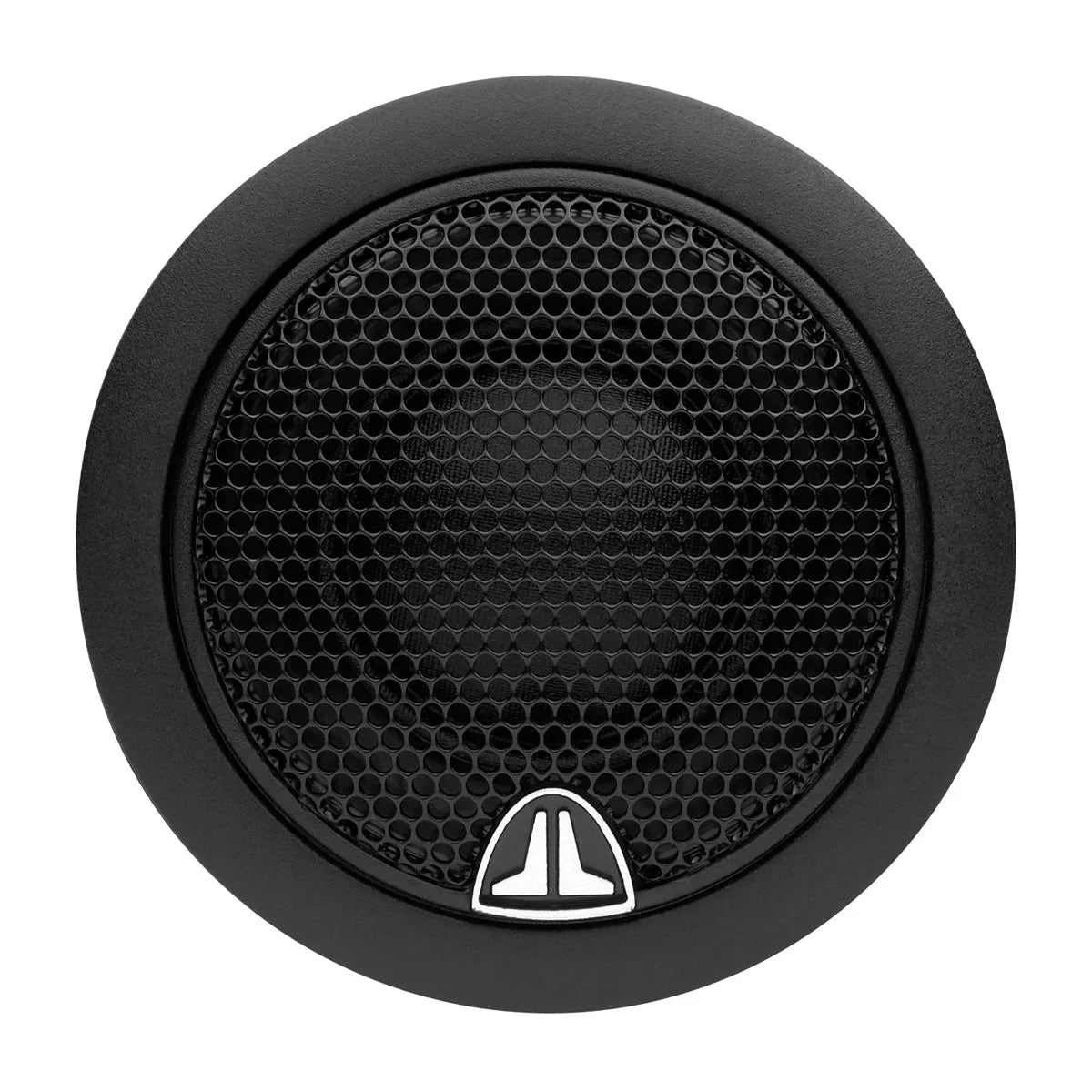

Tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended off-axis response. Flush- or surface-mounting options are included.

Key Features

  • 1-year warranty
  • Component Speakers
  • Multiple sizes and flexible mounting patterns
  • DMA-Optimized woofers for better bass response
  • Pure silk dome tweeters for smoother, cleaner sound

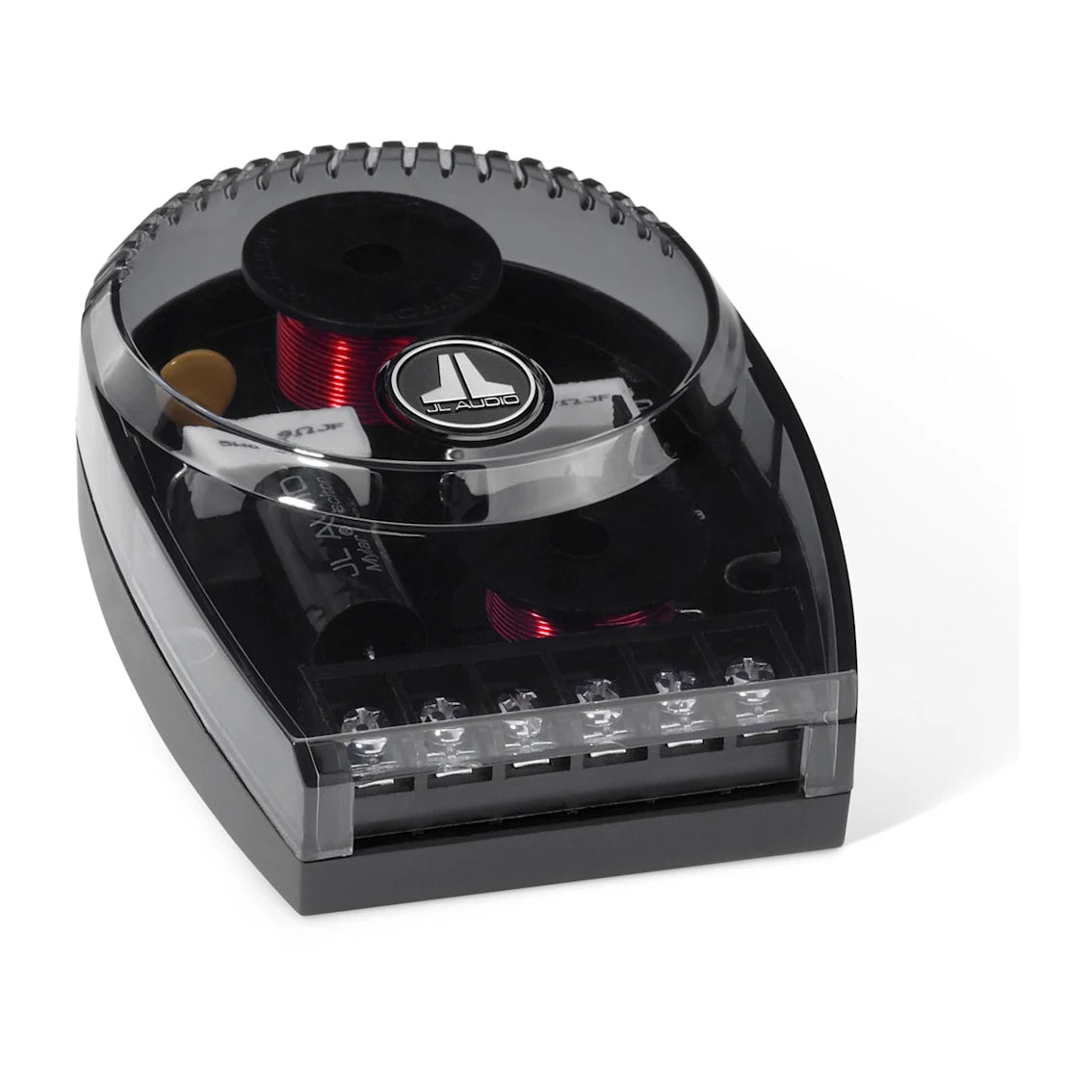

  • True two-way outboard crossovers

Technical Specification

Warranty
1 year
Continuous power handling (RMS)
60 W
Sensitivity (SPL @ 1 W/1 m)
5.25" 89.0 dB 6" 90.5 dB 6.5" 91.0 dB
Frequency response (+/- 3 dB)
5.25" 63 Hz-22 KHz 6"/6.5" 59 Hz-22 KHz
Nominal impedance
4 Ω
Voice coil diameter
1" (25 mm)
Cone material
Mineral-filled polypropylene
Tweeter type
Silk Dome
Tweeter size
0.75" (19 mm)
Frame outer diameter
5.25" 5.20" (132 mm) 6" 6.21" (158 mm) 6.5" 6.5" (165 mm)
Mounting depth clearance
5.25" 0.72" (18 mm) 6" 0.91" (23 mm) 6.5" 0.85" (22 mm)
Frontal grille protrusion
5.25" 0.72" (18 mm) 6" 0.91" (23 mm) 6.5" 0.85" (22 mm)
Mounting hole
5.25" 4.56" (116 mm) 6" 5" (127 mm) 6.5" 5.56" (141 mm)
Grille tray outer diameter
5.25" 6.01" (153 mm) 6" 6.51" (163 mm) 6.5" 6.84" (174 mm)
Motor outer diameter
5.25" 2.76" (70 mm) 6"/6.5" 3.15" (80 mm)

No Documentation available.

SKU # Part # Speaker size Price Quantity
SKU #: ART-0100312500-GAR Speaker size: 5.25 in $329.99
- +
SKU #: ART-0100335900-GAR Speaker size: 6 in $329.99
- +
SKU #: ART-0100336100-GAR Speaker size: 6.5 in $329.99
- +
