About This Product

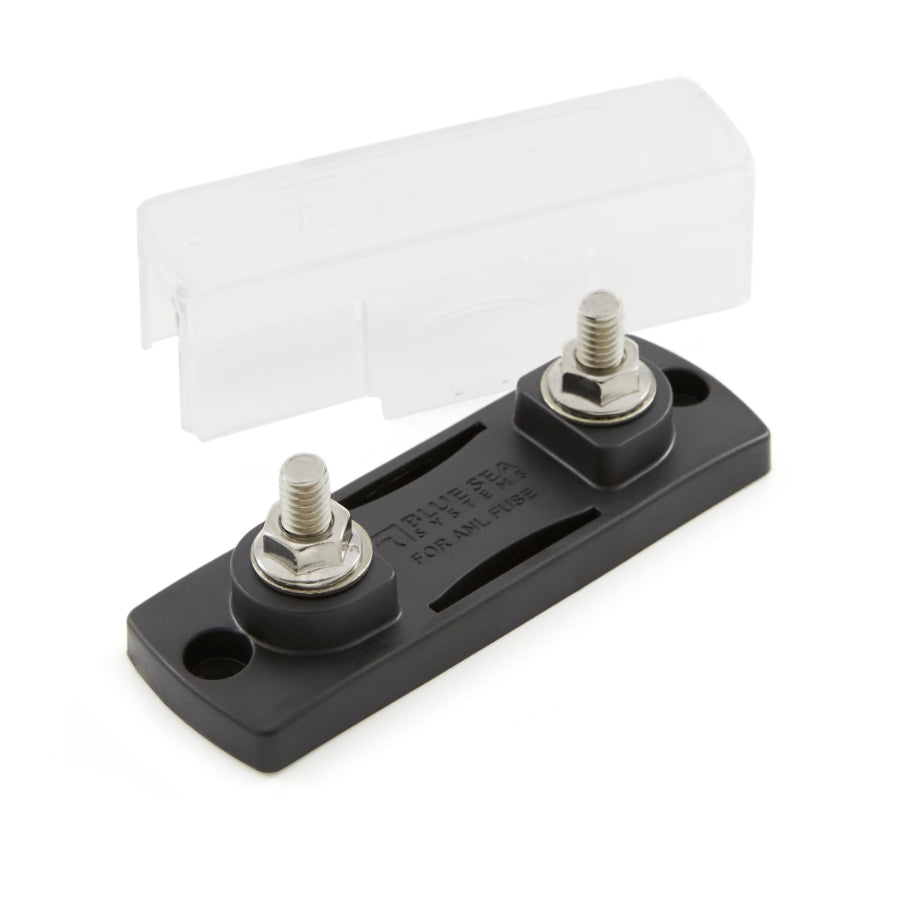

The Blue Sea Systems 5005 ANL Fuse Block is a heavy-duty, ignition-protected holder rated for 35 to 300A fuses on 32V DC systems. It features a swing-out cover design allowing fast fuse changes without removing fasteners and accommodates 14 AWG to 2/0 AWG wire using 5/16" (M8) ring terminals.

Key Features

• Accepts 5/16" (M8) ring terminals
• For use on systems up to 32 Volts DC
• Swing out design allows replacement of the fuse without removing fasteners
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting
• Insulating cover satisfies ABYC/USCG requirements
• Cover breakouts allow wire access in any direction
• Fuse sold separately
