About this product

To measure sustained output, the alternator is run at 3,000 RPMs for 60 minutes with a plexiglass shield covering the units. Testing shows that after 60 minutes in these conditions, alternators reach their maximum operating temperature, or the conditions under which the unit will produce the least output.

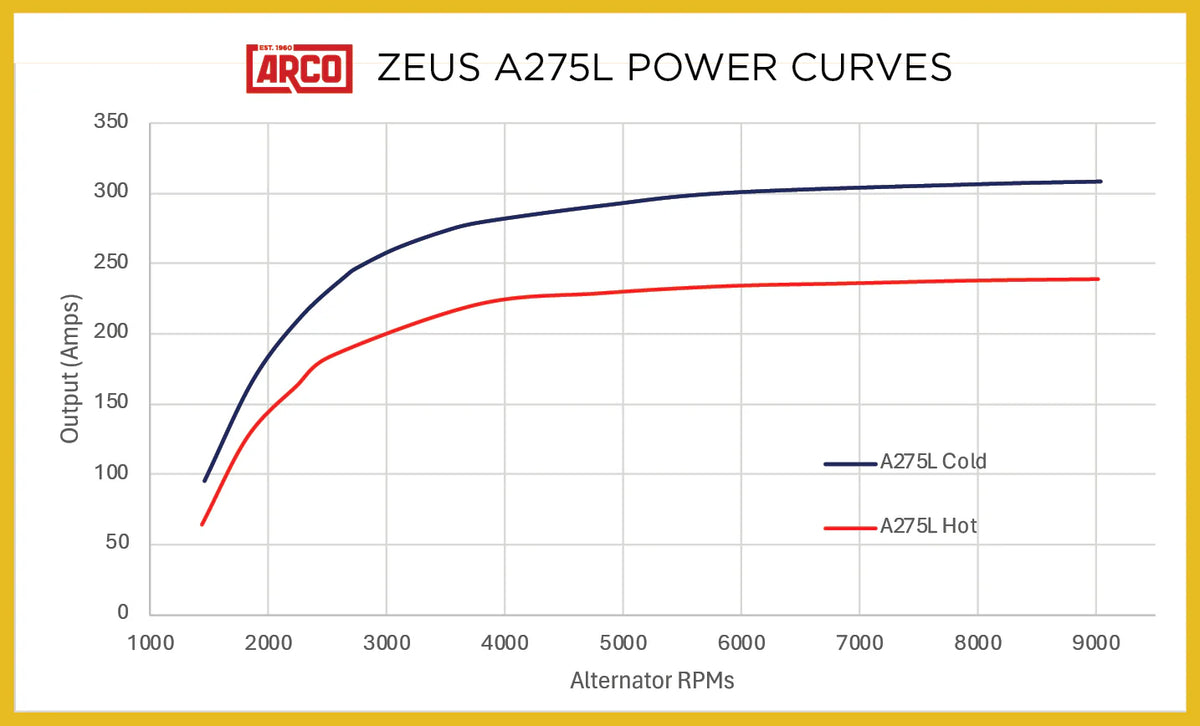

It is under these harsh conditions where we measure the “hot” output of the units at various RPMs. The complete power curve is shown above.

Note: The “hot” conditions are much less favorable than the conditions typically used in the industry. The temperature of the stator during our “hot” test was 305 °F. Incumbents measure the power curve at an ambient temperature of 140 °F. “Cold” testing was done at 71° F.

Kit Includes

• Alternator
• Bracket
• Regulator
• Shield
• Hall Effect Sensor
• NMEA Extension Cable

Key Features of Alternator

• Replace your noisy generator!
• Engineered for high energy production.
• Suitable for marine, RV, military, and commercial applications.
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance:Heat shedding coatingsRectifier located on housing exteriorDual cooling fansOEM components
• Optimized for performance at idle speeds.
• Reduces the need for a generator by creating additional power with your engine.
• Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output.
• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
• SAE J1171 Certified.
• Models available with internal/external voltage regulator.
• Proudly made in the U.S.A.
