About This Product

Omni Guard Perimeter Radar is the low cost radar solution for real-time intrusion detection and automatic CCTV camera control. It detects and tracks humans and vehicles at up to 200m range over the full 360 degrees. On detection the radar automatically controls and points a camera at the intruder and sends alarms to local recorders or remote-control centres.

The Omni Guard Perimeter Radar can automatically control up to four ONVIF CCTV cameras to point the cameras at the priority targets.

Installation and configuration is straightforward, using a simple web browser interface over the IP connection. Can be installed by any

The Omni Guard Perimeter Radar is ideal for monitoring large areas with a single sensor.

The radar can scan beyond perimeters giving forewarning of potential threats, ideal for critical infrastructure, military and sensitive sites.

360 degree view radars are used throughout the world to protect buildings, infrastructure, vehicles and people from nuisances like graffiti and vandalism, all the way up to organised crime, terrorism and sabotage.

Provides perimeter and wide area protection for people, infrastructure and high value assets in temporary and fixed locations such as:- oil fields, warehousing, science parks, private estates, airports, prisons, quarries, construction sites, industrial estates, sporting venues, power stations, water treatment plants, petro-chemical plants.

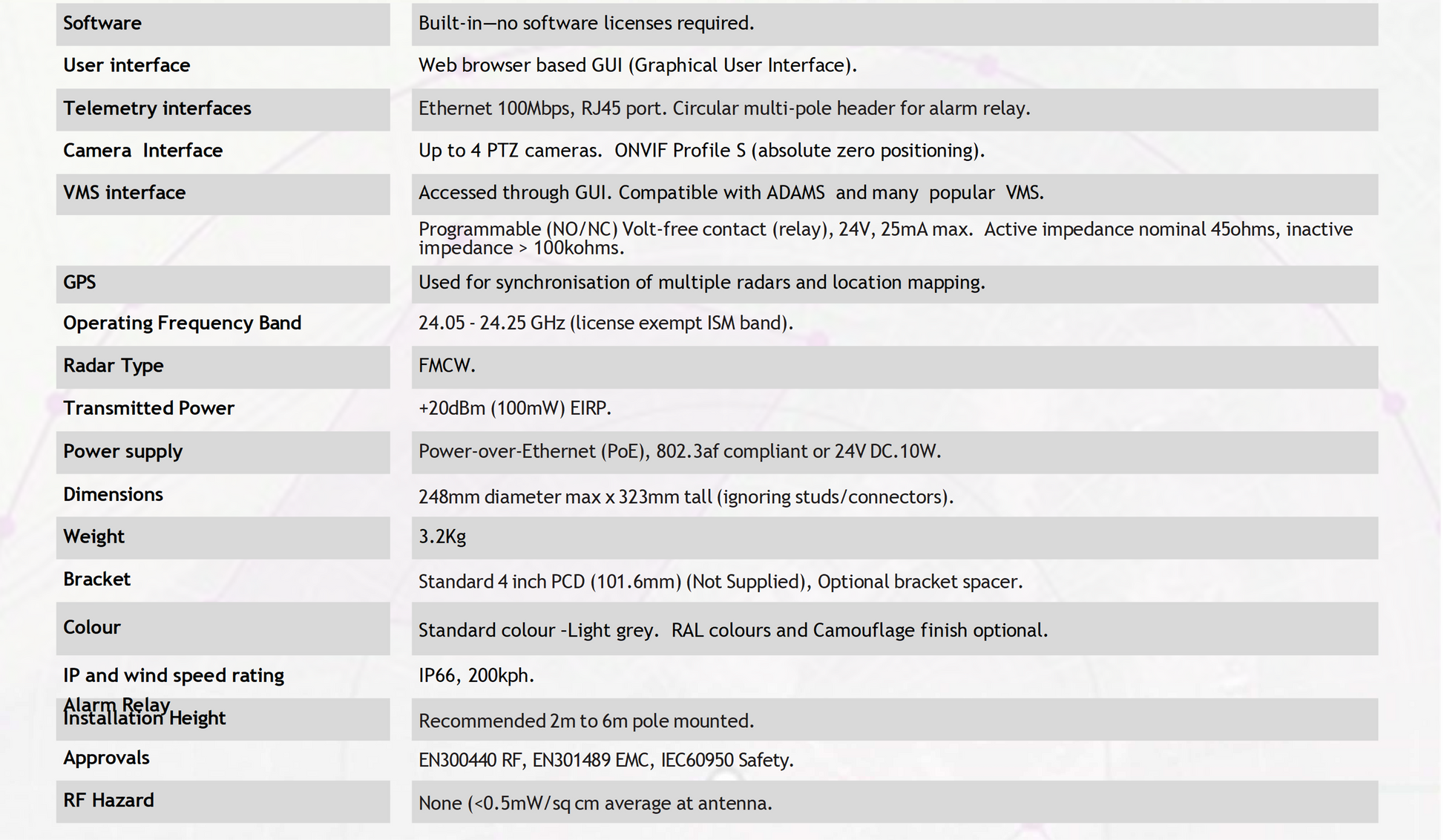

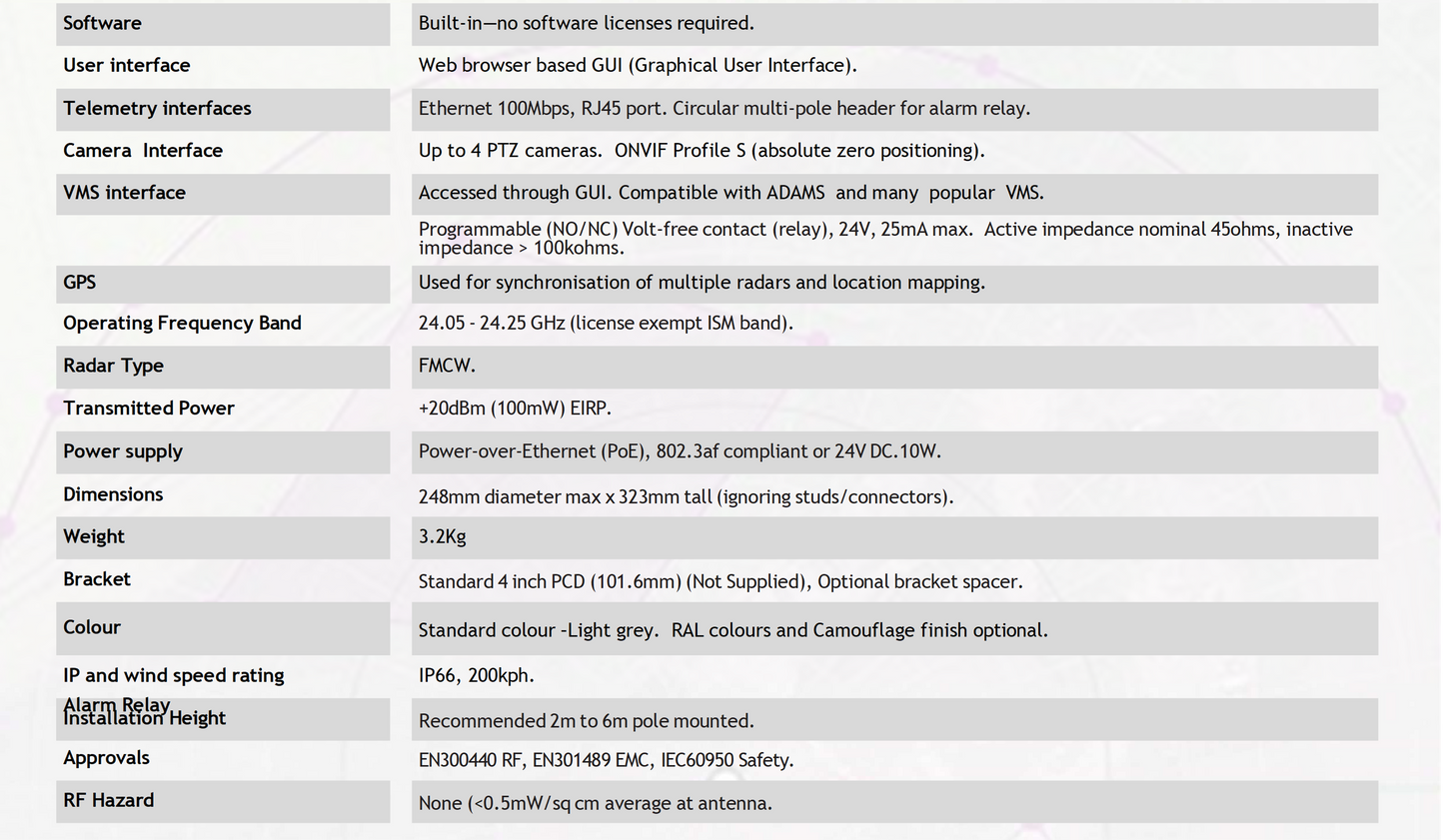

Key Features

• 360 degree coverage.
• 200m Range – Up to 200m detection range (400m diameter)

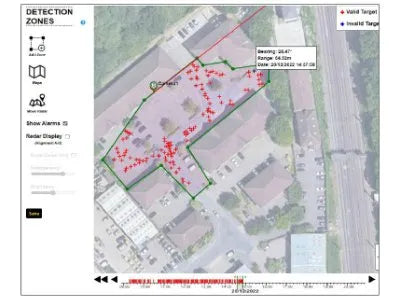

• Programmable detection zones
• 24V DC Power Operation. 10W.
• Power over Ethernet (PoE)

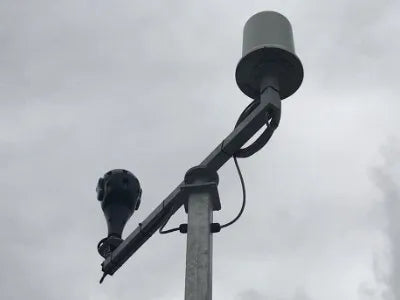

• Slew to cue with ONVIF CCTV cameras –  can connect up to 4 cameras.
