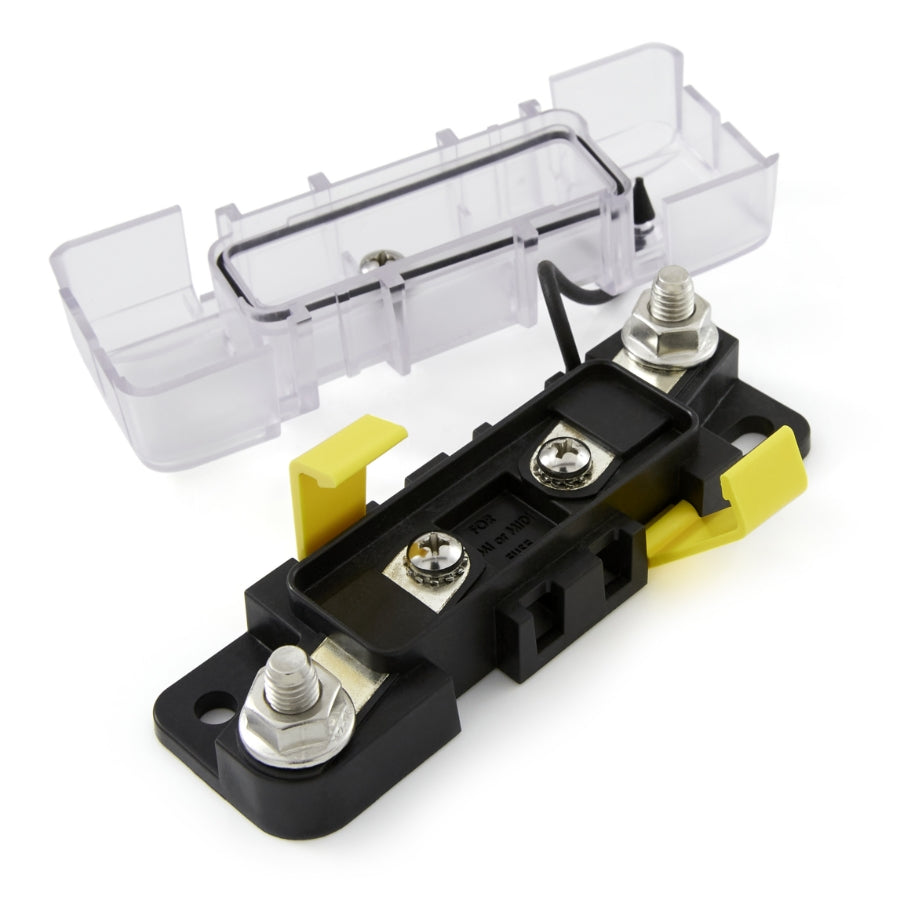

AMI/MIDI Safety Fuse Block - 30 - 200A

Blue Sea Systems

ART-7720-BSS

MPN: 7720

$34.51
$34.51
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About This Product

Ignition protected for installation on gasoline or diesel vehicles/boats. 200A maximum rating using up to 4/0 size cable. Requires optional AMI / MIDI fuses which are sold separately.

Key Features

  • Accepts 5/16" (M8) ring terminals
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Insulating cover breakouts allow wire access in three directions
  • Insert molded studs ensure secure fuse mounting
  • Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Fuse sold seperately

Technical Specification

Maximum Voltage
32V DC
Amperage
40A - 200A (AMI / MIDI fuses sold separately)
Terminal Stud Size
5/16" (M8)
Size
5.05" x 1.50" x 1.65" (with clear cover on)
