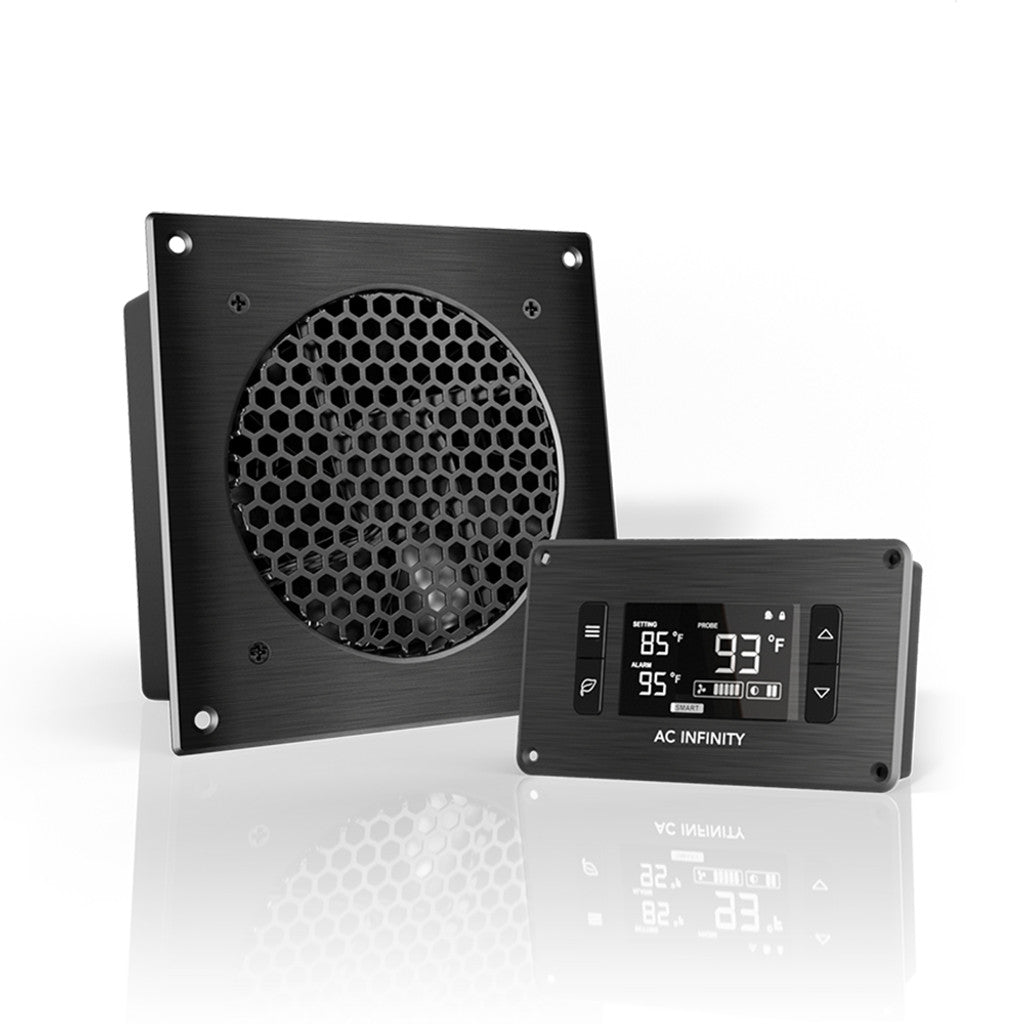

AIRPLATE T3, Quiet Cabinet Cooling Fan 6" with Temperature Controller

AC Infinity

ART-AI-APT3-AC

MPN: AI-APT3

$62.99
$62.99
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

About This Product

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

Key Features

  • An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise.
  • Automated programming that self-adjusts cooling power in response to changing temperatures.

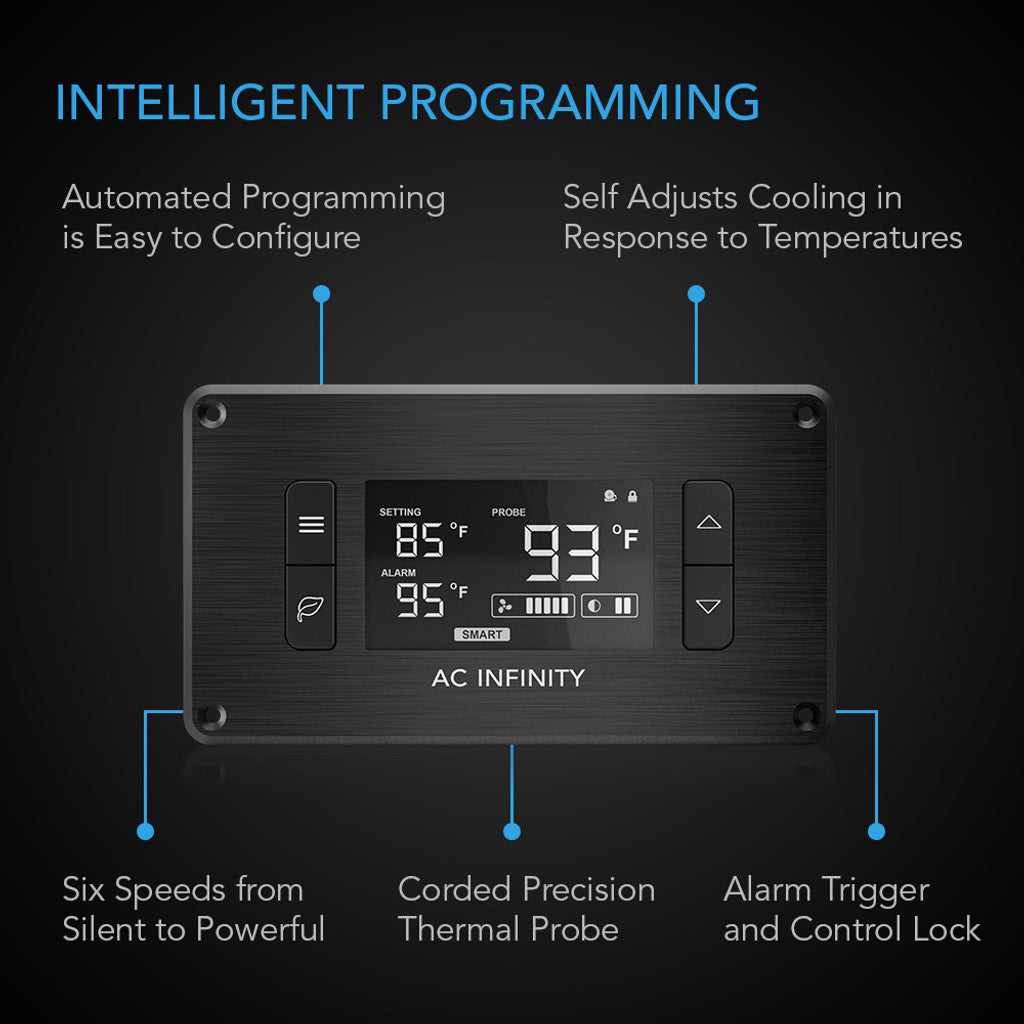

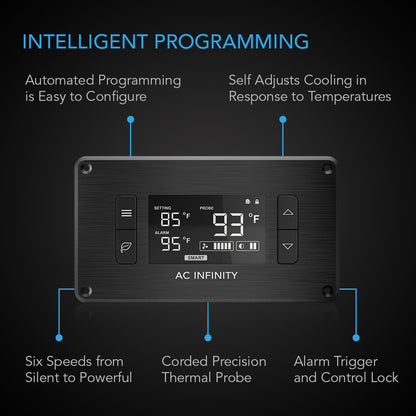

  • Features a LCD display with an alarm system, display lock, six fan speeds, two buffer options, and memory.
  • Fan and controller contain CNC machined aluminum frames with a modern brushed black finish.

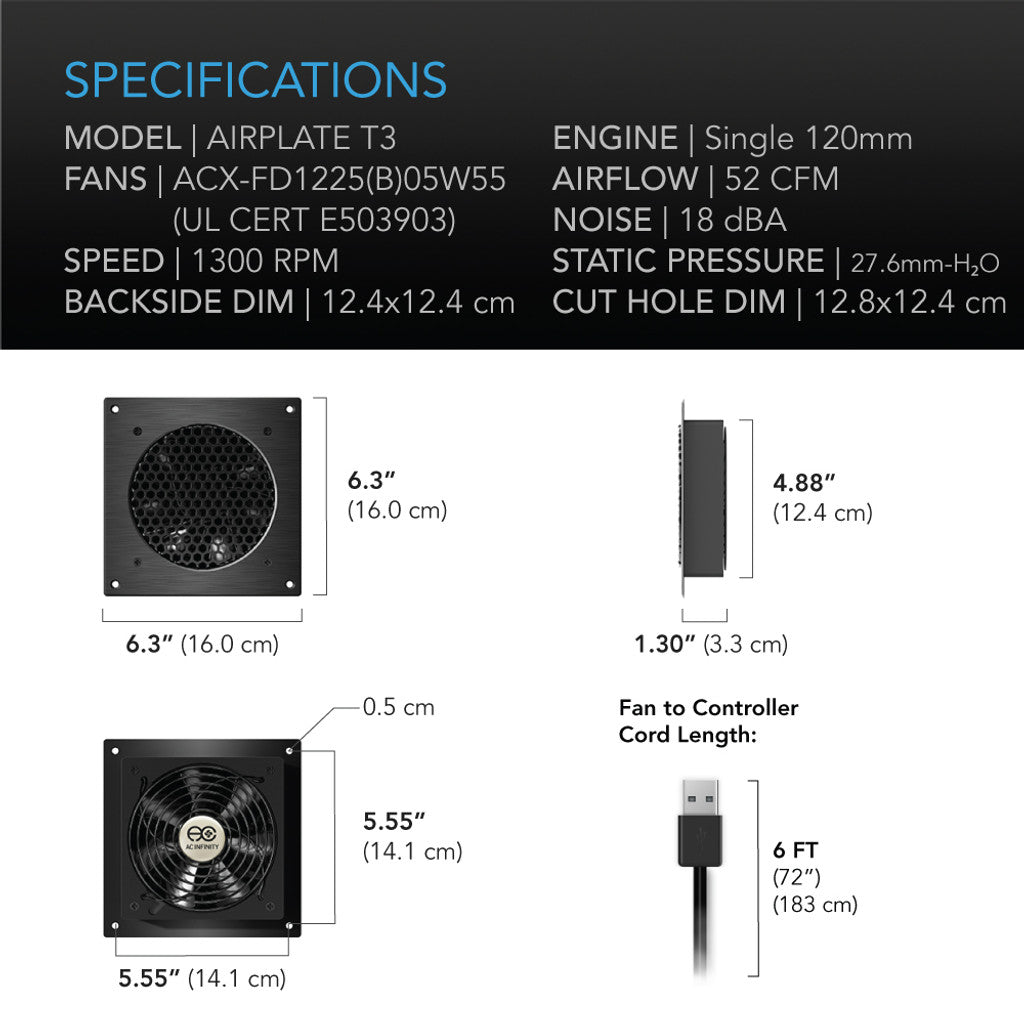

Technical Specification

Total Dimensions
6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm)
Backside Enclosure Dimensions
4.88 X 4.88 in (12.4 x 12.4 cm)
Required Mounting Hole
5.04 x 5.04 in (12.8 x 12.8 cm)
Hole to Hole Distance
5.55 x 5.55 in (14.1 x 14.1 cm)
Screw Hole Size
Ø 0.197 in (Ø 0.5 cm)
Cord Length
72 in (6 feet)
Total Airflow
52 CFM
Total Noise
18 dBA
Static Pressure
1 mm-H2O
Operating Voltage
3 to 7V DC
Power
2.2 W
Current
0.44 A
Wall Adapter Input
100 to 240V AC
Operating Humidity
35 to 85% RH
Operating Temperature
0 to 158°F
Fan Bearings
Dual Ball
Fan Quality Approvals
UL, CE, RoHS
